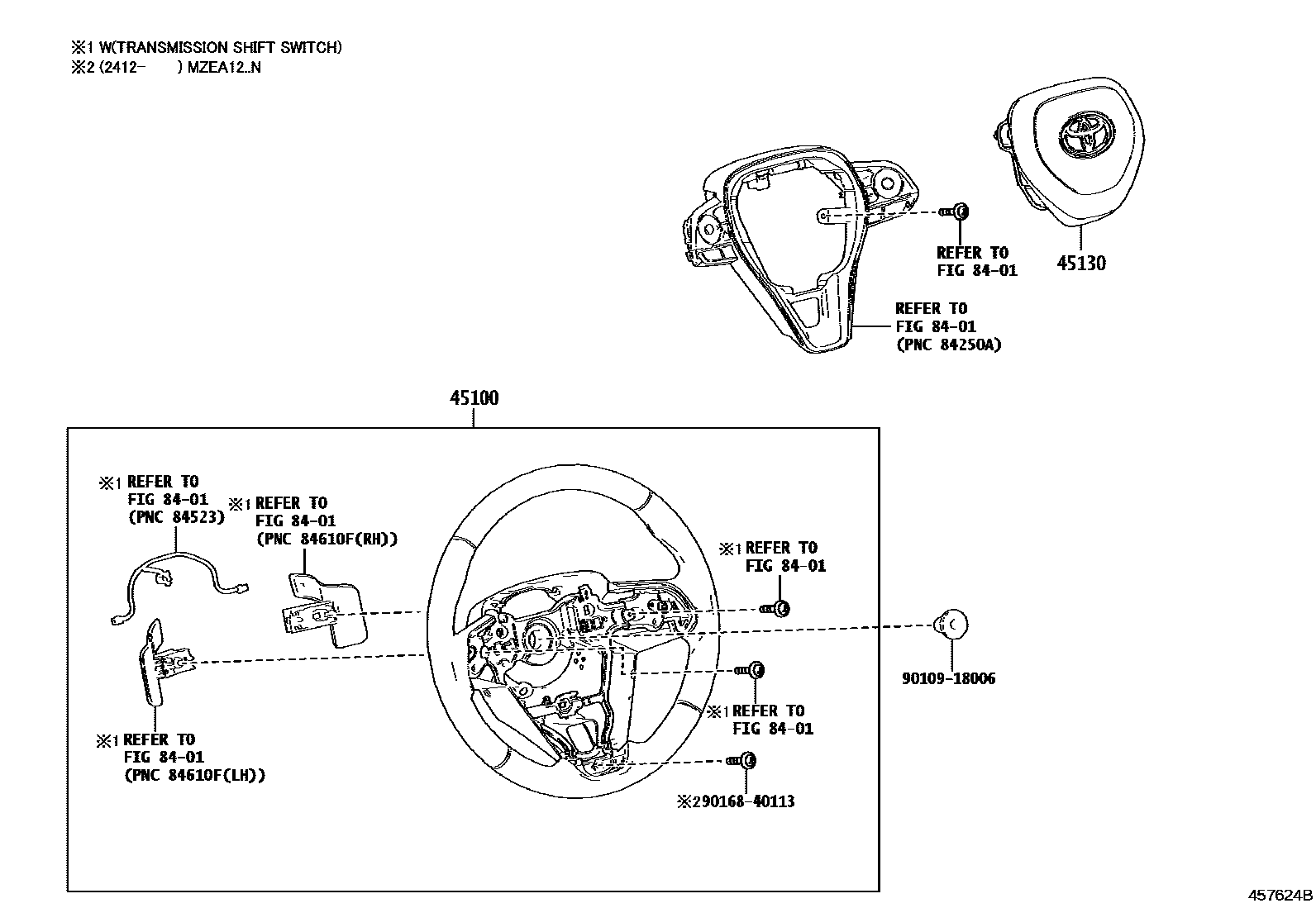

STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-12G60-C0iMZEA12,ZWE211..N..GEN; MZEA12..N..GEN; ZWE211..D..GEN;MZEA12,ZRE210..D202309-202402
3-SPOKE,URETHANE,BLACK,TRIM2#; 3-SPOKE,URETHANE,BOLIVIA SPEC,BLACK,TRIM2#; 3-SPOKE,URETHANE,ECUADOR SPEC,BLACK,TRIM2#
main45100-12G70-C0iMZEA12..D..BZ; ZRE210..6F..N;MZEA12..6F..GEN; ZWE211..BZ;ZWE211..E..(AGT,GEN)201909-202112
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#; 3-SPOKE,LEATHER,CHILE SPEC,BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,UP GRADE PACKAGE,BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,CHILE SPEC,BLACK,TRIM2#
main45100-12J20-C0iMZEA12..D..BZ; MZEA12..D..GEN; ZWE211..E..AGT;ZWE211..(E,N)..GEN;ZWE211..(D,N)..(AGT,BZ);MZEA12,ZRE210..N..(AGT,GEN); ZWE211..E..BZ202201-202206
3-SPOKE,LEATHER,BLACK,TRIM0#; 3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,CHILE SPEC,BLACK,TRIM2#; 3-SPOKE,LEATHER,UP GRADE PACKAGE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,ECUADOR SPEC,BLACK,TRIM2#
3-SPOKE,LEATHER,GR SPORT,BLACK & GR RED,TRIM2#
3-SPOKE,LEATHER,CHILE SPEC&GR SPORT,BLACK/GR RED GOSEN Y55,TRIM2#; 3-SPOKE,LEATHER,GR SPORT,BLACK/GR RED GOSEN Y55,TRIM2#
45130BUTTON ASSY, HORN
main45130-12E40-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
8401SWITCH & RELAY & COMPUTER
9010918006
main90109-18006
9016840113
main90168-40113
5 parts on this diagram · 1 diagram in section
