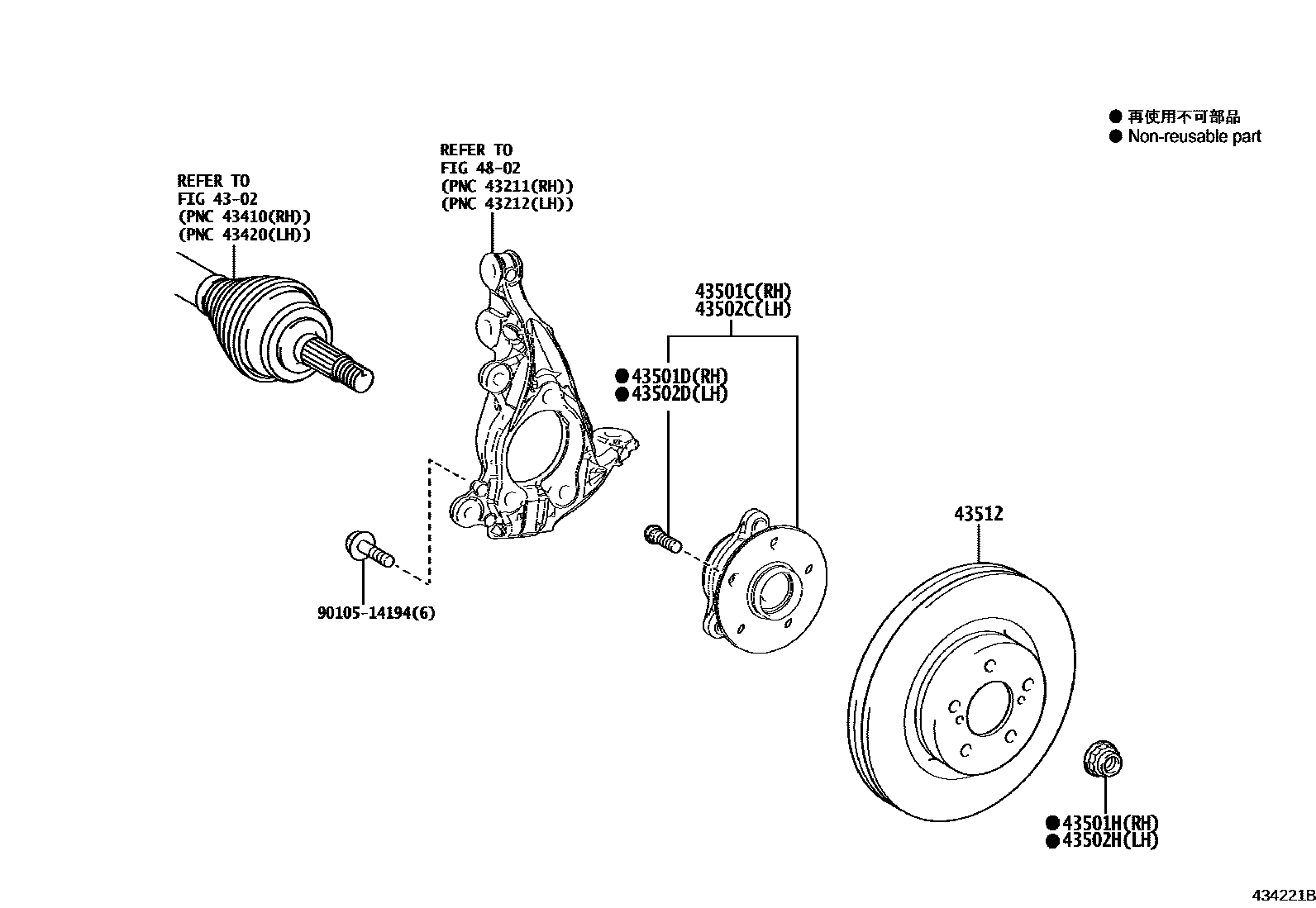

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-02110iMZEA12,ZRE210,ZWE211201909-202001

main43550-12030iMZEA12,ZRE210,ZWE211202110-202112

main43550-47020iMZEA12,ZRE210,ZWE211202201-202207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMZEA12,ZRE210,ZWE211202201-202309

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMZEA12,ZRE210,ZWE211201909-202201

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-02110iMZEA12,ZRE210,ZWE211201909-202001

main43550-12030iMZEA12,ZWE211202412

main43550-47020iMZEA12,ZRE210,ZWE211202201-202207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iMZEA12,ZRE210,ZWE211202201-202309

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMZEA12,ZRE210,ZWE211201909-202201

43512DISC, FRONT

main43512-02420×2iZRE210..6F202309

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

10 parts on this diagram · 1 diagram in section
