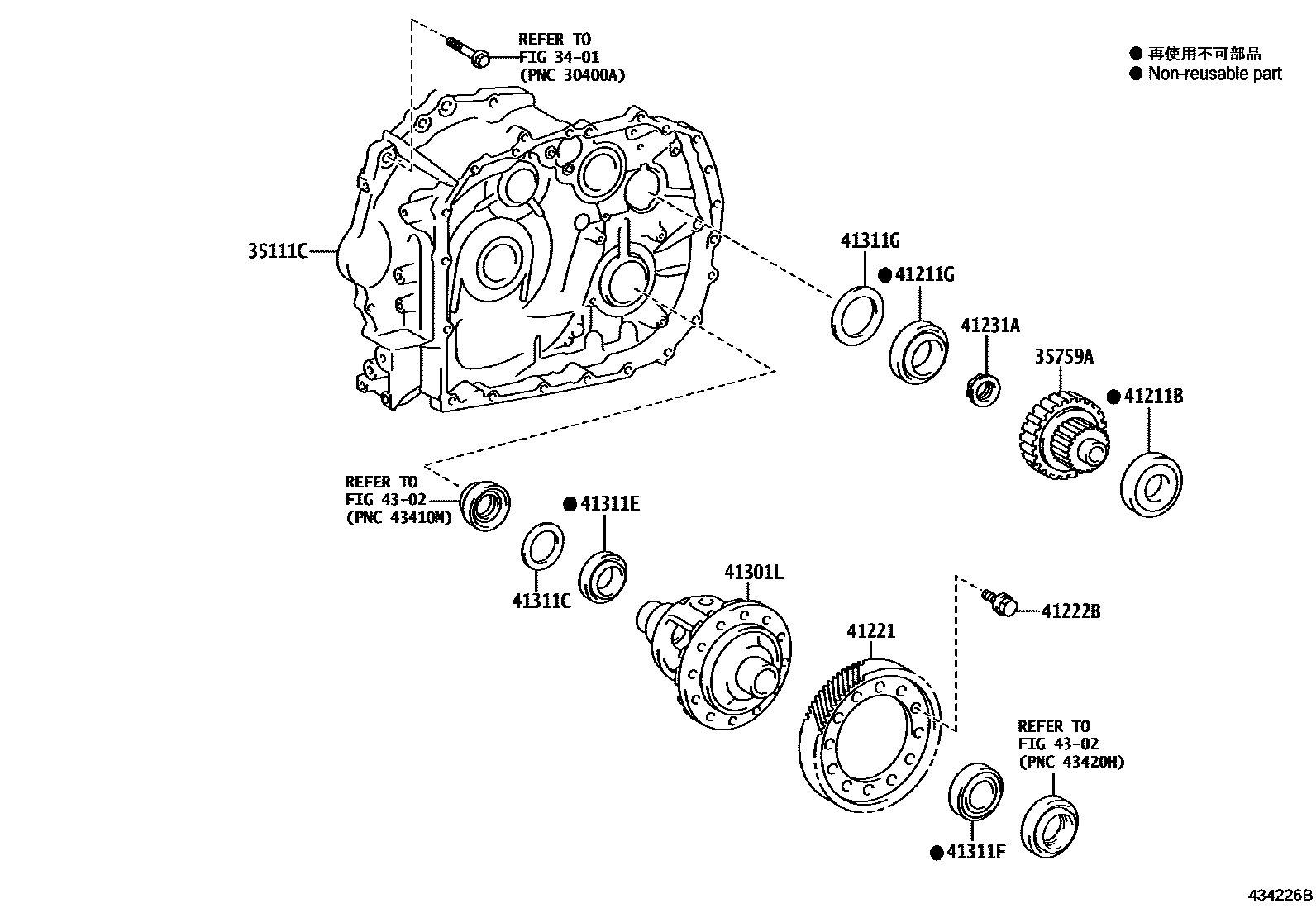

FRONT AXLE HOUSING & DIFFERENTIAL
3401
35759AGEAR, REDUCTION DRIVEN
TMH:REFER 34-01
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
TMH:REFER 34-01,AISIN:REFER 34-01
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
AISIN:REFER 34-01,TMH:REFER 34-01
41221GEAR, FRONT DIFFERENTIAL RING
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TMH:REFER 34-01
AISIN:REFER 34-01
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
TMH:REFER 34-01,AISIN:REFER 34-01
41231ANUT, DRIVE PINION LOCK
TMH:REFER 34-01
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
TMH:REFER 34-01
AISIN:REFER 34-01
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.03,MARK A
T=2.06,MARK B
T=2.09,MARK C
T=2.12,MARK D
T=2.15,MARK E
T=2.18,MARK F
T=2.21,MARK G
T=2.24,MARK H
T=2.27,MARK J
T=2.30,MARK K
T=2.33,MARK L
T=2.36,MARK M
T=2.39,MARK N
T=2.42,MARK P
T=2.45,MARK Q
T=2.48,MARK R
T=2.51,MARK S
T=2.54,MARK T
T=2.57,MARK U
T=2.60,MARK V
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=2.075,MARK AA
T=2.125,MARK BB
T=2.175,MARK CC
T=2.225,MARK DD
T=2.275,MARK EE
T=2.325,MARK FF
T=2.375,MARK GG
T=2.425,MARK HH
T=2.475,MARK JJ
T=2.525,MARK KK
T=2.575,MARK LL
T=2.625,MARK MM
T=2.675,MARK NN
T=2.725,MARK PP
T=2.775,MARK QQ
T=2.825,MARK RR
T=2.875,MARK SS
T=1.76,MARK A
T=1.76,MARK A,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.79,MARK B
T=1.79,MARK B,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.82,MARK C
T=1.82,MARK C,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.85,MARK D
T=1.85,MARK D,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.88,MARK E,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.88,MARK E
T=1.91,MARK F
T=1.91,MARK F,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.94,MARK G
T=1.94,MARK G,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.97,MARK H
T=1.97,MARK H,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.00,MARK J,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.00,MARK J
T=2.03,MARK K,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.03,MARK K
T=2.06,MARK L
T=2.06,MARK L,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.09,MARK M,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.09,MARK M
T=2.12,MARK N
T=2.12,MARK N,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.15,MARK P
T=2.15,MARK P,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.18,MARK Q
T=2.18,MARK Q,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.21,MARK R
T=2.21,MARK R,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.24,MARK S
T=2.24,MARK S,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.27,MARK T
T=2.27,MARK T,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.30,MARK U
T=2.30,MARK U,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.33,MARK V
T=2.33,MARK V,TMH:REFER 34-01,AISIN:REFER 34-01
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
TMH:REFER 34-01,AISIN:REFER 34-01
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
TMH:REFER 34-01,AISIN:REFER 34-01
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.1
T=1.59, MARK A,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.59, MARK A
T=1.62, MARK B,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.62, MARK B
T=1.65, MARK C
T=1.65, MARK C,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.68, MARK D,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.68, MARK D
T=1.71, MARK E,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.71, MARK E
T=1.74, MARK F,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.74, MARK F
T=1.77, MARK G,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.77, MARK G
T=1.80, MARK H
T=1.80, MARK H,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.83, MARK J
T=1.83, MARK J,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.86, MARK K
T=1.86, MARK K,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.89, MARK L
T=1.89, MARK L,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.92, MARK M,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.92, MARK M
T=1.95, MARK N
T=1.95, MARK N,AISIN:REFER 34-01,TMH:REFER 34-01
T=1.98, MARK P
T=1.98, MARK P,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.01, MARK Q,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.01, MARK Q
T=2.04, MARK R
T=2.04, MARK R,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.07, MARK S
T=2.07, MARK S,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.10, MARK T
T=2.10, MARK T,AISIN:REFER 34-01,TMH:REFER 34-01
T=2.13, MARK U
T=2.13, MARK U,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.16, MARK V
T=2.16, MARK V,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.19, MARK W
T=2.19, MARK W,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.22, MARK X
T=2.22, MARK X,TMH:REFER 34-01,AISIN:REFER 34-01
T=2.25, MARK Y
T=2.25, MARK Y,TMH:REFER 34-01,AISIN:REFER 34-01
T=1.73,MARK A
T=1.76,MARK B
T=1.79,MARK C
T=1.82,MARK D
T=1.85,MARK E
T=1.88,MARK F
T=1.91,MARK G
T=1.94,MARK H
T=1.97,MARK J
T=2.00,MARK K
T=2.03,MARK L
T=2.06,MARK M
T=2.09,MARK N
T=2.12,MARK P
T=2.15,MARK Q
T=2.18,MARK S
T=2.21,MARK T
T=2.24,MARK U
T=2.27,MARK V
4302
14 parts on this diagram · 4 diagrams in section
