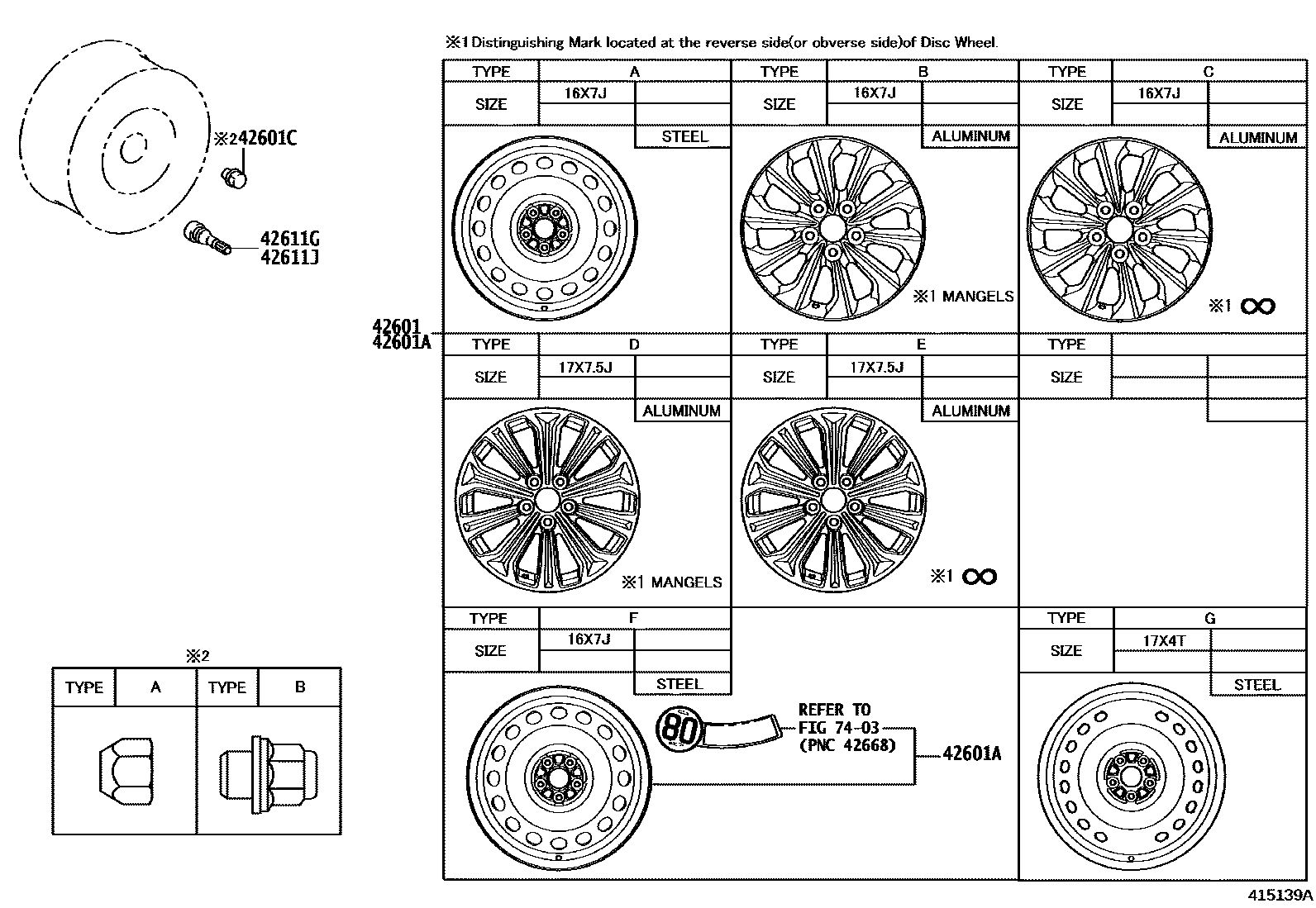

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7.5J,TYPE D:REFER ILLUST.
main42611-02T50×4supersedes 42611-02T40iMZEA12..CVT..N..GEN; MZEA12..D..BZ; MZEA12..N..GEN; ZWE211..D;MZEA12..D..GEN;MZEA12..(D,N)..AGT;ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202102
16X7J,BOLIVIA SPEC,TYPE B:REFER ILLUST.; 16X7J,CHILE SPEC,TYPE B:REFER ILLUST.; 16X7J,COLOMBIA SPEC,TYPE B:REFER ILLUST.; 16X7J,TYPE B:REFER ILLUST.; 16X7J,UP GRADE PACKAGE,TYPE B:REFER ILLUST.
17X7.5J,TYPE D:REFER ILLUST.
17X7.5J,#,TYPE D:REFER ILLUST.
17X7.5J,TYPE E:REFER ILLUST.
main42611-02V00×4iMZEA12..CVT..N..GEN; MZEA12..D..BZ; MZEA12..N..GEN; ZWE211..D;MZEA12..D..GEN;MZEA12..(D,N)..AGT;ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202102
16X7J,BOLIVIA SPEC,TYPE C:REFER ILLUST.; 16X7J,CHILE SPEC,TYPE C:REFER ILLUST.; 16X7J,COLOMBIA SPEC,TYPE C:REFER ILLUST.; 16X7J,TYPE C:REFER ILLUST.; 16X7J,UP GRADE PACKAGE,TYPE C:REFER ILLUST.
17X7.5J,TYPE E:REFER ILLUST.
17X7.5J,#,TYPE E:REFER ILLUST.
main42611-02W60×4iMZEA12,ZWE211..N..GEN; MZEA12..6F..N..GEN; MZEA12..CVT..N..GEN; MZEA12..D..BZ; MZEA12..N..GEN; ZRE210;ZWE211..D;MZEA12..D..GEN;MZEA12,ZWE211..(D,N)..AGT202201-202309
16X7J,#,BOLIVIA SPEC,TYPE B:REFER ILLUST.; 16X7J,#,CHILE SPEC,TYPE B:REFER ILLUST.; 16X7J,#,COLOMBIA SPEC,TYPE B:REFER ILLUST.; 16X7J,#,ECUADOR SPEC,TYPE B:REFER ILLUST.; 16X7J,#,TYPE B:REFER ILLUST.; 16X7J,#,UP GRADE PACKAGE,TYPE B:REFER ILLUST.
main42611-02W70×4iMZEA12..CVT..N..GEN; MZEA12..D..BZ; MZEA12..N..GEN; ZWE211..D;MZEA12..D..GEN;MZEA12..(D,N)..AGT;ZRE210,ZWE211..(D,N)..(AGT,GEN)202102-202201
16X7J,#,BOLIVIA SPEC,TYPE C:REFER ILLUST.; 16X7J,#,CHILE SPEC,TYPE C:REFER ILLUST.; 16X7J,#,COLOMBIA SPEC,TYPE C:REFER ILLUST.; 16X7J,#,TYPE C:REFER ILLUST.; 16X7J,#,UP GRADE PACKAGE,TYPE C:REFER ILLUST.
17X7.5J,#,COLOMBIA SPEC,TYPE D:REFER ILLUST.; 17X7.5J,#,TYPE D:REFER ILLUST.
17X7.5J,#,COLOMBIA SPEC,TYPE D:REFER ILLUST.; 17X7.5J,#,TYPE D:REFER ILLUST.
17X7.5J,#,COLOMBIA SPEC,TYPE E:REFER ILLUST.; 17X7.5J,#,TYPE E:REFER ILLUST.
17X7.5J,#,COLOMBIA SPEC,TYPE E:REFER ILLUST.; 17X7.5J,#,TYPE E:REFER ILLUST.
17X7.5J,#,TYPE H:REFER ILLUST.
17X7.5J,#,TYPE J:REFER ILLUST.
17X7.5J,#,COLOMBIA SPEC,TYPE H:REFER ILLUST.; 17X7.5J,#,TYPE H:REFER ILLUST.
17X7.5J,#,COLOMBIA SPEC,TYPE J:REFER ILLUST.; 17X7.5J,#,TYPE J:REFER ILLUST.
17X7.5J,#,GR SPORT,TYPE D:REFER ILLUST.
17X7.5J,#,GR SPORT,TYPE D:REFER ILLUST.
16X7J,BOLIVIA SPEC,TYPE A:REFER ILLUST.; 16X7J,ECUADOR SPEC,TYPE A:REFER ILLUST.; 16X7J,TYPE A:REFER ILLUST.
17X7.5J, #,CHILE SPEC&GR SPORT,TYPE H:REFER ILLUST.; 17X7.5J, #,COLOMBIA SPEC&GR SPORT,TYPE H:REFER ILLUST.; 17X7.5J, #,GR SPORT,TYPE H:REFER ILLUST.
17X7.5J, #,CHILE SPEC&GR SPORT,TYPE K:REFER ILLUST.; 17X7.5J, #,GR SPORT,TYPE K:REFER ILLUST.; 17X7.5J, #,URUGUAY SPEC&GR SPORT,TYPE K:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-02T40iMZEA12..CVT..N..GEN; MZEA12..N..AGT;MZEA12,ZWE211..D;ZRE210,ZWE211..(D,N)..GEN; MZEA12..N..GEN201909-202201
16X7J,BOLIVIA SPEC,TYPE A:REFER ILLUST.; 16X7J,CHILE SPEC,TYPE A:REFER ILLUST.; 16X7J,COLOMBIA SPEC,TYPE A:REFER ILLUST.; 16X7J,ECUADOR SPEC,TYPE A:REFER ILLUST.; 16X7J,TYPE A:REFER ILLUST.
main42611-02U90iMZEA12,ZWE211..N..GEN; MZEA12..6F..N..GEN; MZEA12..CVT..N..AGT; MZEA12..CVT..N..GEN; MZEA12..E..AGT;MZEA12,ZWE211..(E,N)..(BZ,GEN); MZEA12..N..GEN202201-202309
16X7J,BOLIVIA SPEC,TYPE F:REFER ILLUST.; 16X7J,CHILE SPEC,TYPE F:REFER ILLUST.; 16X7J,COLOMBIA SPEC,TYPE F:REFER ILLUST.; 16X7J,ECUADOR SPEC,TYPE F:REFER ILLUST.; 16X7J,GR SPORT,TYPE F:REFER ILLUST.; 16X7J,TYPE F:REFER ILLUST.
17X4T,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
BOLIVIA SPEC,TYPE A:REFER ILLUST.; ECUADOR SPEC,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
(J)
(L)
42611JVALVE (FOR TUBELESS TIRE SPARE)
(J)
(L)
7403CAUTION PLATE (EXTERIOR & INTERIOR)
6 parts on this diagram · 4 diagrams in section
