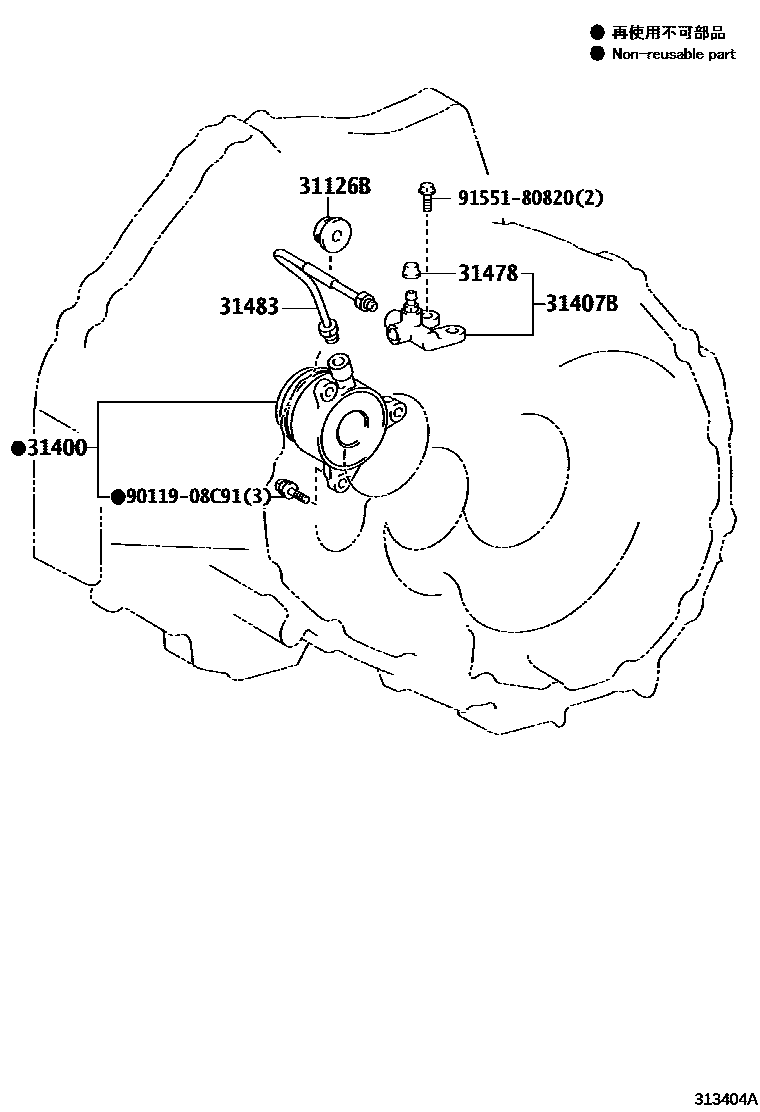

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31126BBOOT, CLUTCH TUBE

main31126-0D070iZRE210..6F201909-202201

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-09020iZRE210..6F202201-202210

main31400-09021iZRE210..6F202211-202309

main31400-19025iMZEA12..6F201909-202111

main31400-19026iMZEA12..6F202111-202201

main31400-19027iMZEA12..6F202305-202309

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-12010iMZEA12..6F201909-202201

main31407-52010iZRE210..6F201909-202201

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMZEA12,ZRE210..6F201909-202201

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-0D300iZRE210..6F201909-202201

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 2 diagrams in section
