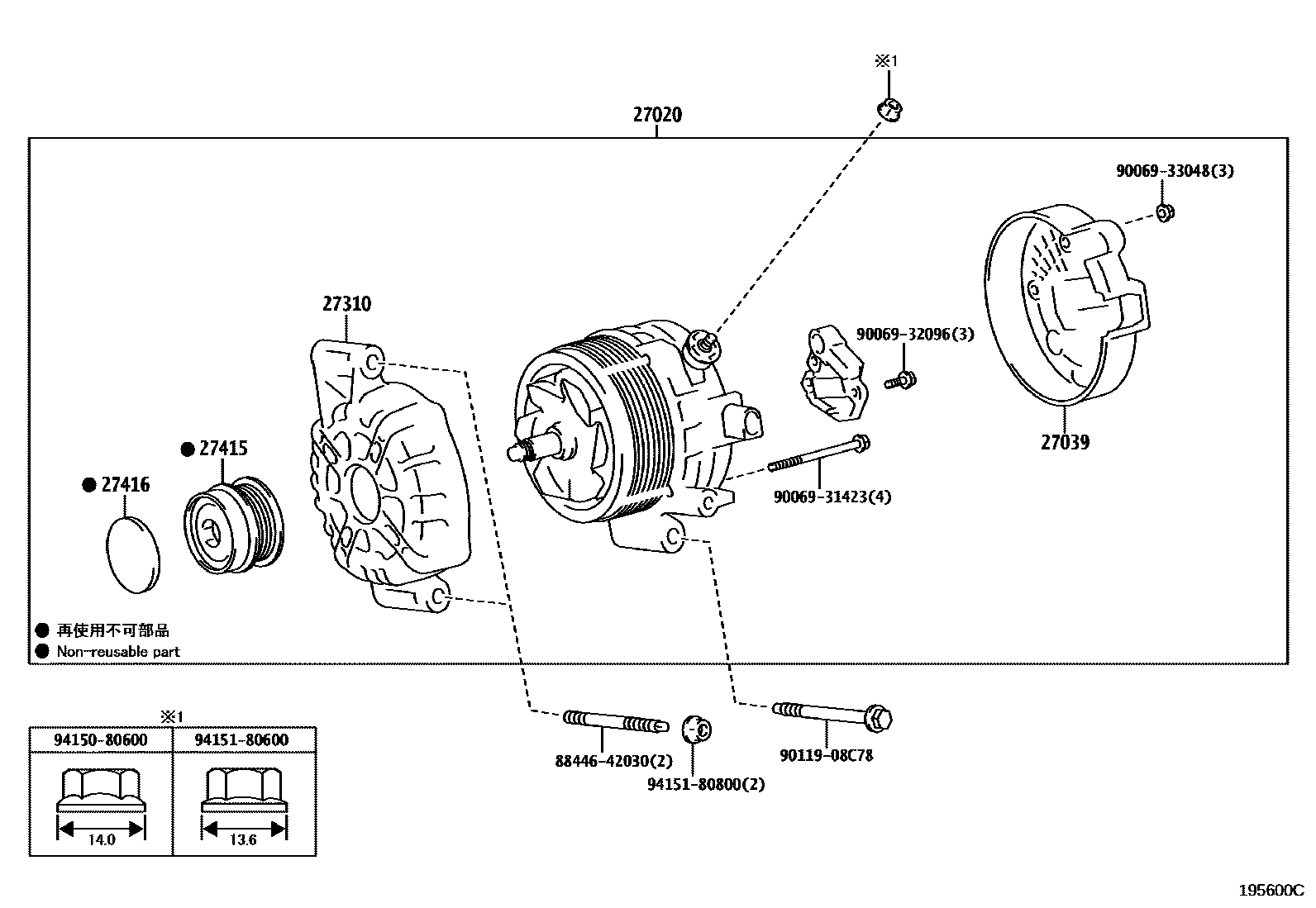

ALTERNATOR

0001 112V 115A 0002 112V 100A 0003 112V 100A

27020ALTERNATOR ASSY

main27060-0T510i1ZRFAE..ZRE210..CVT202309-202412

12V 100A

main27060-F2090iM20#..MZEA12201909-202201

12V 115A

main27060-F2240iM20#..MZEA12202412

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-0T300iM20#..MZEA12202412

main27041-F2080iM20#..MZEA12202309-202412

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0T300i1ZRFAE..ZRE210..6F202309

main27310-F2050iM20#..MZEA12202412

main27310-F2080iM20#..MZEA12202309-202412

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T080i1ZRFAE..ZRE210201909-202201

main27415-F2030iM20#..MZEA12201909-202201

27416CAP, ALTERNATOR PULLEY

main27416-0W050iM20#,1ZRFAE..MZEA12,ZRE210201909-202201

8844642030BOLT, IDLE PULLEY

main88446-42030

9006931423

main90069-31423

9006932096

main90069-32096

9006933048

main90069-33048

9011908C78

main90119-08C78

9415080600

main94150-80600

9415180600

main94151-80600

9415180800

main94151-80800

13 parts on this diagram · 3 diagrams in section
