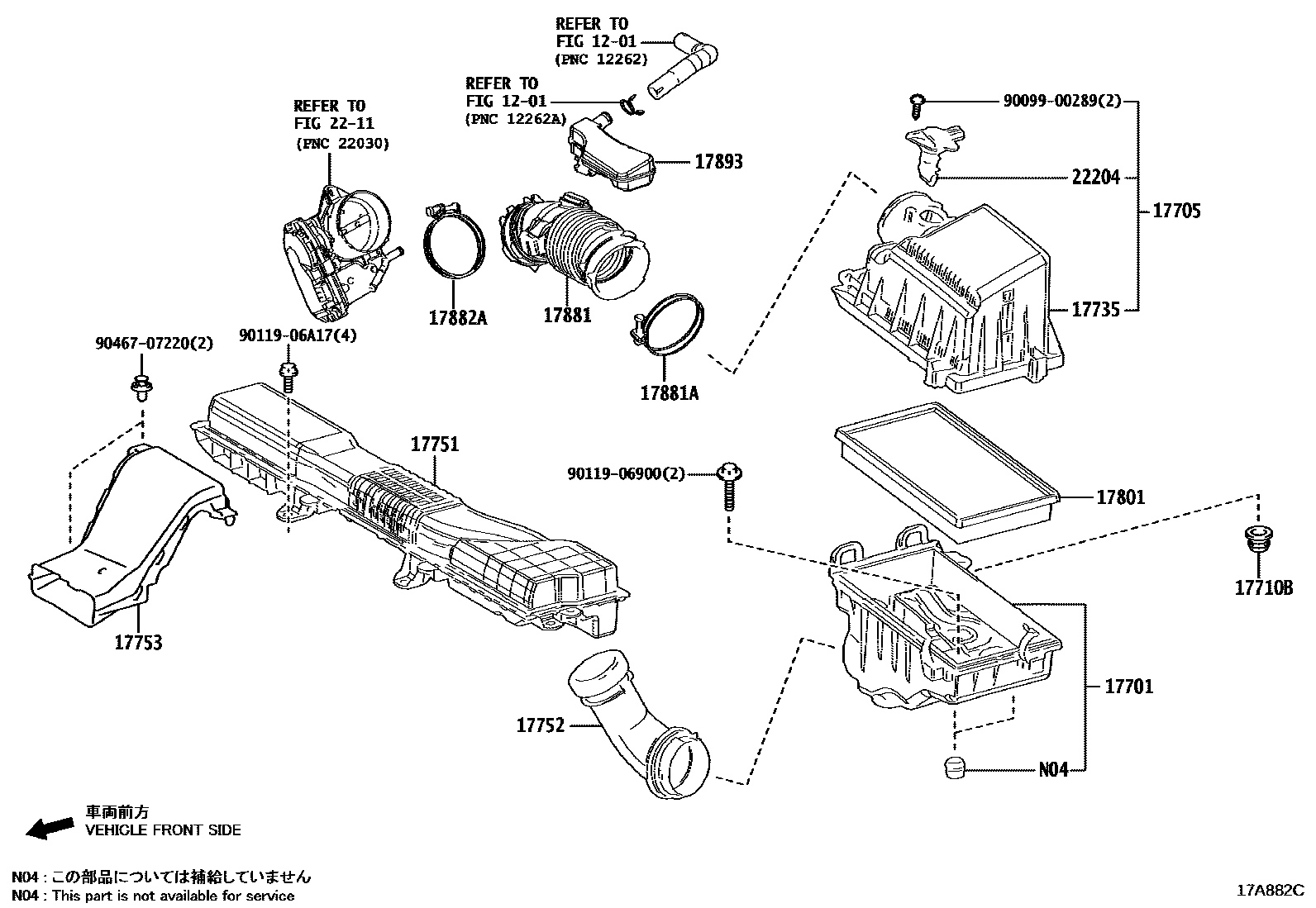

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17701CASE SUB-ASSY, AIR CLEANER

main17701-37230i2ZR#..ZWE211201909-202201

main17701-47080i1ZRFAE..ZRE210..CVT202309-202412

main17701-F2060iM20#..MZEA12202201-202309

17705CAP SUB-ASSY, AIR CLEANER

main17705-37100i2ZR#..ZWE211201909-202201

main17705-37240i1ZRFAE..ZRE210..6F202309

main17705-F2080iM20#..MZEA12202201-202309

17710BGROMMET

main90480-18006i1ZRFAE,2ZR#..ZRE210,ZWE211; M20#..MZEA12201909-202201

17735CAP, AIR CLEANER

main17735-37030i2ZR#..ZWE211202412

main17735-37090i1ZRFAE..ZRE210..CVT202309-202412

main17735-F2060iM20#..MZEA12201909-202201

17751INLET, AIR CLEANER, NO.1

main17751-0T250i2ZR#..ZWE211201909-202201

main17751-24010iM20#..MZEA12202201-202309

main17751-24050iM20#..MZEA12202412

main17751-37150i1ZRFAE..ZRE210..CVT202309-202412

17752INLET, AIR CLEANER, NO.2

main17752-0T132i2ZR#..ZWE211201909-202201

main17752-24050iM20#..MZEA12202201-202309

main17752-47020i1ZRFAE..ZRE210..CVT202309-202412

17753INLET, AIR CLEANER, NO.3

main17753-0T090i1ZRFAE..ZRE210; M20#..MZEA12201909-202201

main17753-24030iM20#..MZEA12202412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21060i2ZR#..ZWE211202412

main17801-77050i1ZRFAE..ZRE210; M20#..MZEA12201909-202201

MARK 17801-77050

main17801-F0020iM20#..MZEA12202309-202412

MARK 17801-F0020

main17801-F0030iM20#..MZEA12202201-202309

MARK 17801-F0030

17881HOSE, AIR CLEANER, NO.1

main17881-0T570i1ZRFAE..ZRE210..6F202309

main17881-24050iM20#..MZEA12202309-202412

main17881-37330i2ZR#..ZWE211202309-202412

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZR#..ZWE211202309-202412

main96111-10780i1ZRFAE..ZRE210..CVT202309-202412

main96111-10850iM20#..MZEA12202412

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20#..MZEA12201909-202201

17893RESONATOR, INTAKE AIR

main17893-24020iM20#..MZEA12202412

main17893-37130i2ZR#..ZWE211202201-202309

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75030i2ZR#..ZWE211202309-202412

main22204-75040i1ZRFAE..ZRE210; M20#..MZEA12202201-202309

9009900289

main90099-00289

9011906900

main90119-06900

9011906A17

main90119-06A17

9046707220

main90467-07220

18 parts on this diagram · 4 diagrams in section
