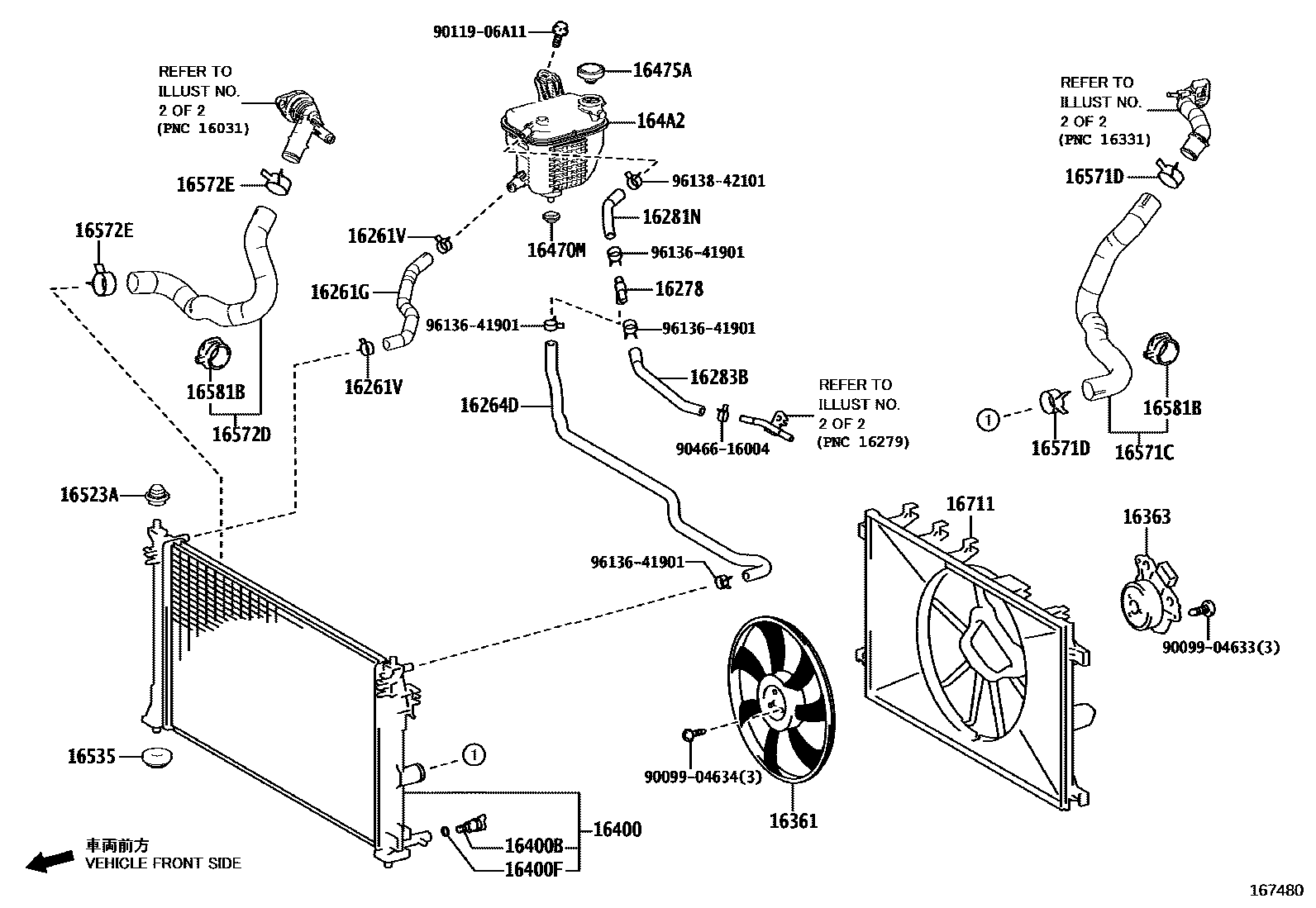

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1ENGINE SIDE 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

16261HOSE, WATER BY-PASS

main16261-37160i2ZR#..ZWE211201909-202201

main16261-37200i1ZRFAE..ZRE210201909-202201

16261GHOSE, WATER BY-PASS, NO.1

main16261-37150i2ZR#..ZWE211201909-202201

main16261-37180i1ZRFAE..ZRE210201909-202201

main16261-F2150iM20#..MZEA12201909-202201

main16261-F2280iM20#..MZEA12202309-202412

16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96138-42501×2iM20#..MZEA12201909-202201

16264HOSE, WATER BY-PASS, NO.2

main16264-37130i2ZR#..ZWE211201909-202201

main16264-37210i1ZRFAE..ZRE210201909-202201

16264DHOSE, WATER BY-PASS, NO.2

main16264-37120i2ZR#..ZWE211201909-202201

main16264-37190i1ZRFAE..ZRE210201909-202201

main16264-F2100iM20#..MZEA12201909-202201

main16264-F2140iM20#..MZEA12202309-202412

16278PIPE, WATER BY-PASS, NO.2

main16268-37100iM20#..MZEA12201909-202201

main16268-37120i1ZRFAE,2ZR#..ZRE210,ZWE211201909-202201

16281HOSE, WATER BY-PASS, NO.4

main16281-37100i2ZR#..ZWE211201909-202201

main16281-F2100iM20AFKS..MZEA12201909-202201

16281NHOSE, WATER BY-PASS, NO.4

main16281-37080i2ZRFXE..ZWE211201909-202107

MARK=LIGHT BLUE

main16281-37170i2ZRFXB..ZWE211201909-202201

main16281-37190i2ZRFXE..ZWE211202107-202110

MARK=BLUE

main16281-37191i2ZRFXE..ZWE211202111-202201

MARK=WHITE

main16281-F2070iM20#..MZEA12201909-202201

16283HOSE, WATER BY-PASS, NO.6

main16283-37021i2ZRFXE..ZWE211201909-202201

main16283-F2020iM20#..MZEA12201909-202201

16283BHOSE, WATER BY-PASS

main16296-F2070iM20#..MZEA12201909-202201

16361FAN

main16361-0T530i1ZRFAE..ZRE210201909-202201

main16361-F2110iM20#..MZEA12201909-202201

main16361-F2330iM20#..MZEA12202309-202412

16363MOTOR, COOLING FAN

main16363-24110iM20#..MZEA12201909-202201

main16363-24120i1ZRFAE..ZRE210202305-202309

main16363-37130i1ZRFAE..ZRE210201909-202201

16400RADIATOR ASSY

main16400-0T510i1ZRFAE..ZRE210201909-202201

main16400-0T520i2ZR#..ZWE211201909-202201

main16400-F2060iM20#..MZEA12201909-202201

main16400-F2150iM20#..MZEA12202309-202412

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1ZRFAE..ZRE210; 2ZR#..ZWE211; M20#..MZEA12201909-202201

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1ZRFAE..ZRE210; 2ZR#..ZWE211; M20#..MZEA12201909-202201

16470TANK ASSY, RADIATOR RESERVE

main16470-F2040iM20#..MZEA12202309-202412

16470MGROMMET

main90480-18010i1ZRFAE,2ZR#..ZRE210,ZWE211; M20#..MZEA12201909-202201

16475ACAP, RESERVE TANK

main16475-28140i1ZRFAE,2ZR#..ZRE210,ZWE211; M20#..MZEA12201909-202201

164A2TANK, RESERVE SEALED W/O CAP

main164A2-0T090i1ZRFAE,2ZR#..ZRE210,ZWE211; M20#..MZEA12201909-202201

16523ACUSHION, RADIATOR SUPPORT

main16523-0T140×2i1ZRFAE,2ZR#..ZRE210,ZWE211; M20#..MZEA12201909-202201

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i1ZRFAE,2ZR#..ZRE210,ZWE211; M20#..MZEA12201909-202201

16571CHOSE, RADIATOR, NO.1

main16571-37210i2ZR#..ZWE211201909-202201

main16571-37211i2ZR#..ZWE211202209-202309

main16571-37240i1ZRFAE..ZRE210201909-202201

main16571-F2070iM20#..MZEA12201909-202201

16571DCLIP, RADIATOR HOSE, NO.1

main90466-40001×2i1ZRFAE..ZRE210; 2ZR#..ZWE211201909-202201

NO.2

main90466-43002i2ZR#..ZWE211201909-202201

NO.1

main96136-44301×2iM20#..MZEA12201909-202201

16572DHOSE, RADIATOR, NO.2

main16572-37190i1ZRFAE..ZRE210201909-202201

main16572-37210i2ZR#..ZWE211201909-202201

main16572-F2060iM20#..MZEA12201909-202201

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002×2i1ZRFAE,2ZR#..ZRE210,ZWE211201909-202201

main96136-44301×2iM20#..MZEA12201909-202201

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-37130i1ZRFAE..ZRE210..CVT201909-202201

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-25030iM20#..MZEA12202405-202412

main16581-28070×2iM20#..MZEA12201909-202201

main16581-36030i1ZRFAE..ZRE210201909-202201

16711SHROUD, FAN

main16711-0T310i1ZRFAE..ZRE210201909-202201

main16711-0T320i2ZR#..ZWE211201909-202201

main16711-F2100iM20#..MZEA12201909-202201

main16711-F2260iM20#..MZEA12202309-202412

9009904633

main90099-04633

9009904634

main90099-04634

9011906A11

main90119-06A11

9046616004

main90466-16004

9613641901

main96136-41901

9613842101

main96138-42101

34 parts on this diagram · 10 diagrams in section
