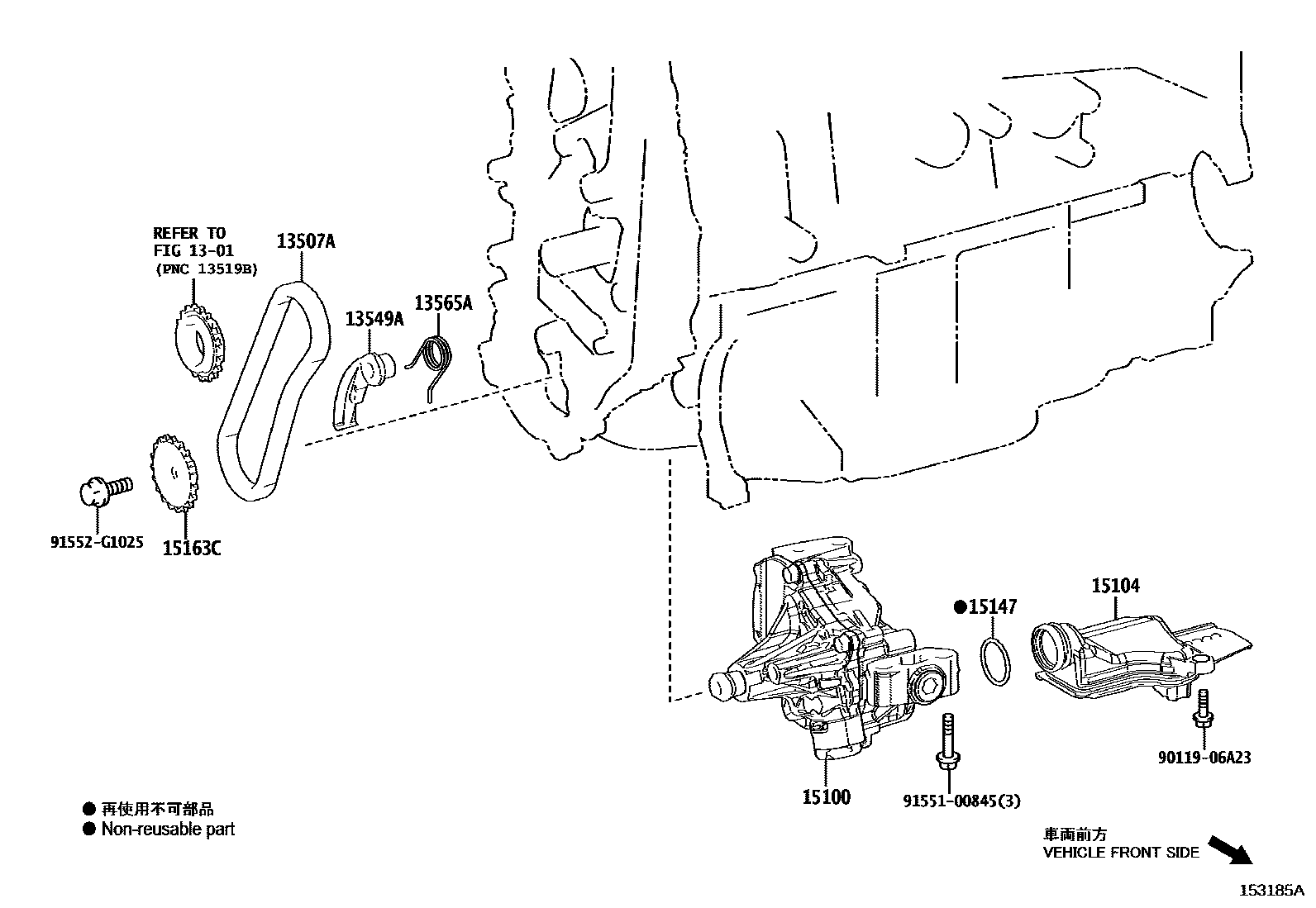

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20#..MZEA12202412

13549APLATE, CHAIN TENSIONER

main13549-25020iM20#..MZEA12201909-202201

13565ASPRING, CHAIN DAMPER

main13565-25010iM20#..MZEA12201909-202201

15100PUMP ASSY, OIL

main15100-37021i1ZRFAE..ZRE210202201-202309

main15100-37060i2ZR#..ZWE211201909-202107

main15100-37070i2ZR#..ZWE211202201-202309

main15100-F2020iM20#..MZEA12202412

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20#..MZEA12201909-202201

15147GASKET, OIL STRAINER

main15147-25010iM20#..MZEA12201909-202201

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i1ZRFAE,2ZR#..ZRE210,ZWE211201909-202201

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-F2010iM20#..MZEA12201909-202201

9011906A23

main90119-06A23

9155100845

main91551-00845

91552G1025

main91552-G1025

12 parts on this diagram · 3 diagrams in section
