ENGINE OVERHAUL GASKET KIT

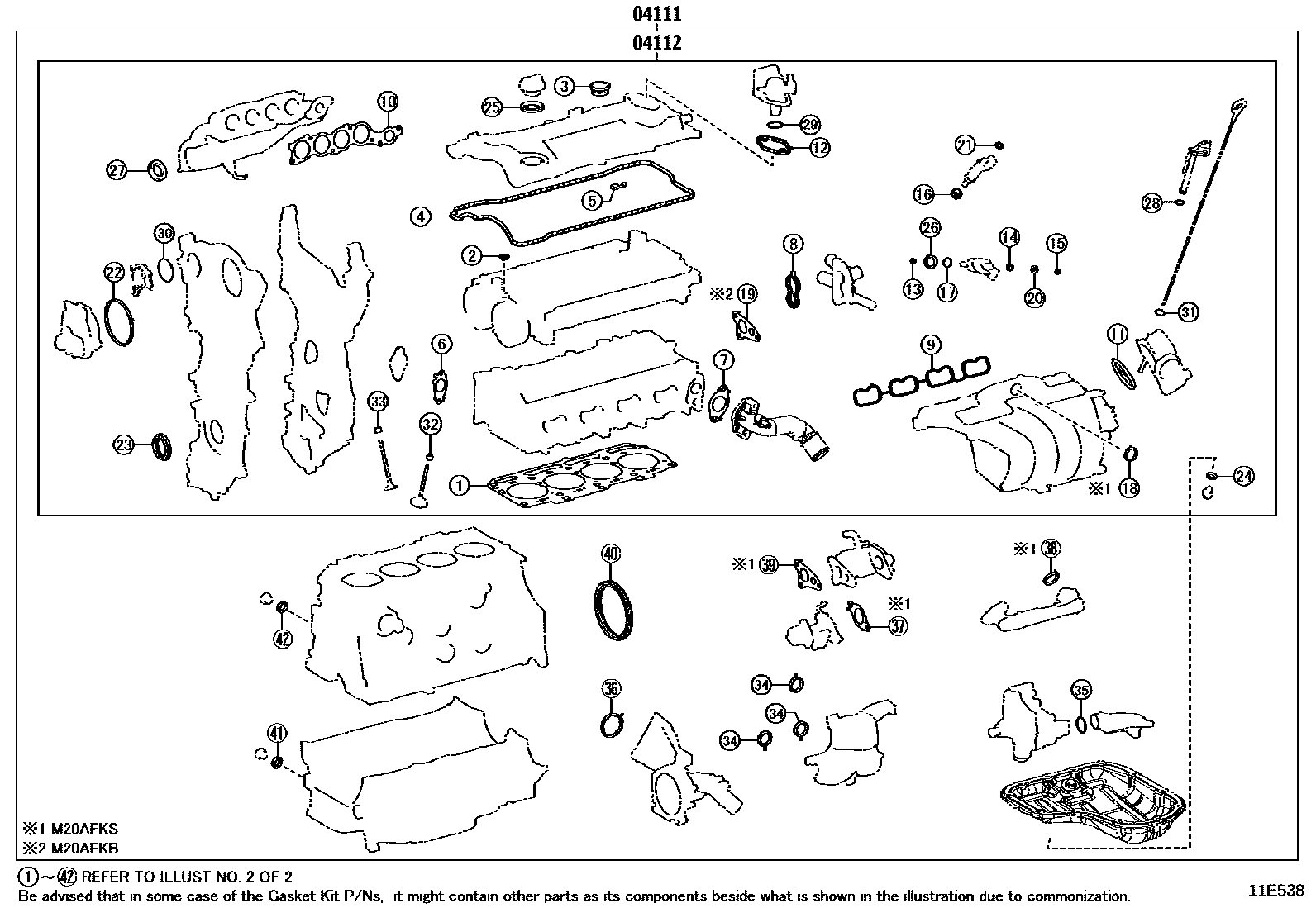

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-37275i201909-202110

main04111-37276i202110-202201

main04111-37501i201909-202011

main04111-37550i201909-202011

main04111-37551i202011-202110

main04111-37552i202309-202412

main04111-37560i202201-202203

main04111-37561i202309-202412

main04111-F2040i201909-202101

main04111-F2041i202101-202110

main04111-F2042i202309-202412

main04111-F2050i201909-202104

main04111-F2051i202104-202110

main04111-F2052i202201-202210

main04111-F2053i202309-202412

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37224i201909-202110

main04112-37225i202309

main04112-37381i201909-202011

main04112-37390i201909-202011

main04112-37391i202011-202110

main04112-37392i202309-202412

main04112-37400i202201-202203

main04112-37401i202110-202201

main04112-F2040i201909-202101

main04112-F2041i202101-202110

main04112-F2042i202201-202309

main04112-F2050i201909-202104

main04112-F2051i202104-202110

main04112-F2052i202110-202201

main04112-F2053i202412

2 parts on this diagram · 6 diagrams in section
