SHORT BLOCK ASSEMBLY

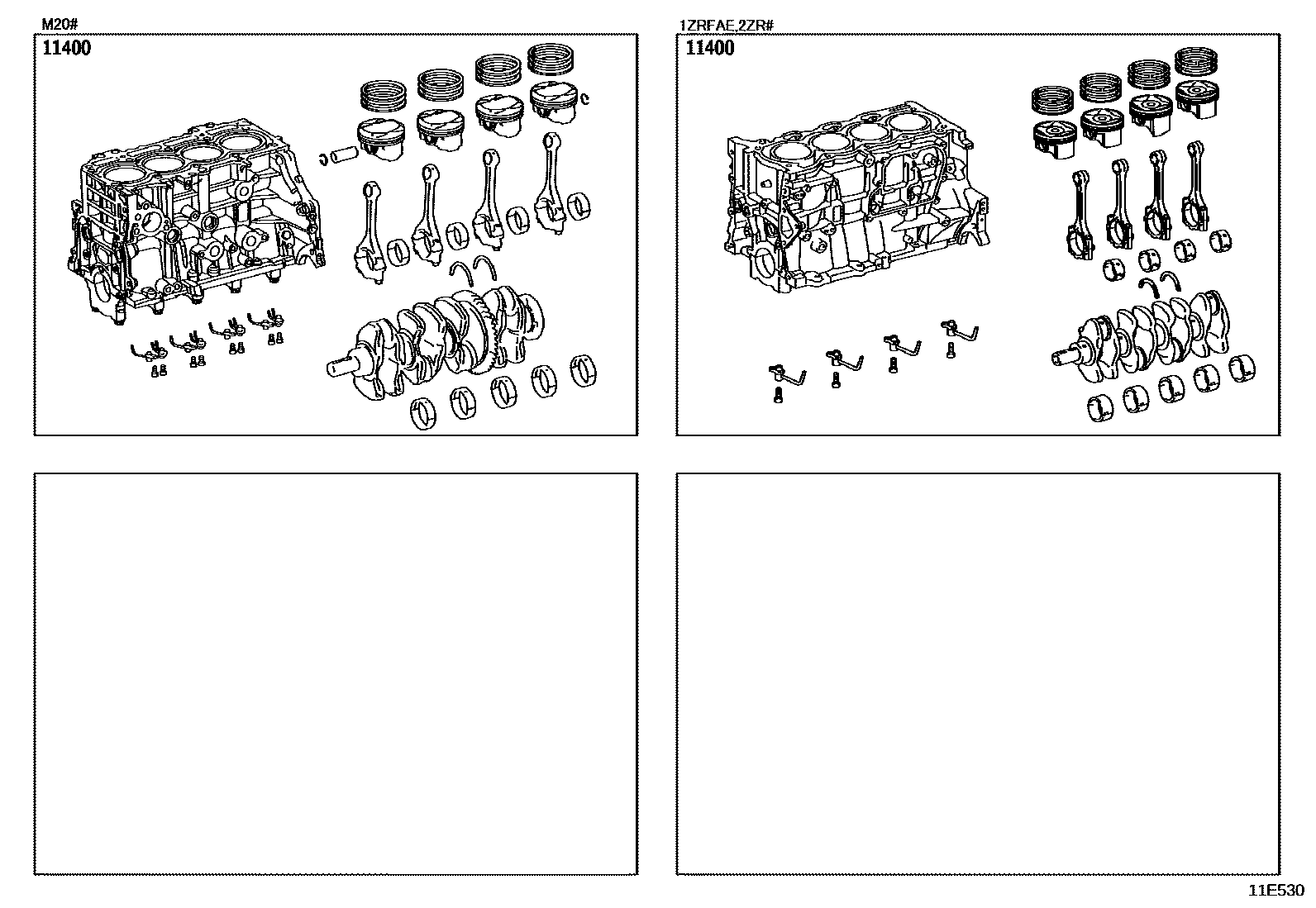

Parts diagram

11400BLOCK ASSY, SHORT

main11400-37131i202309

main11400-37340i202201-202203

main11400-37360i202201-202309

main11400-F2040i202309-202412

main11400-F2050i202412

1 parts on this diagram · 1 diagram in section
