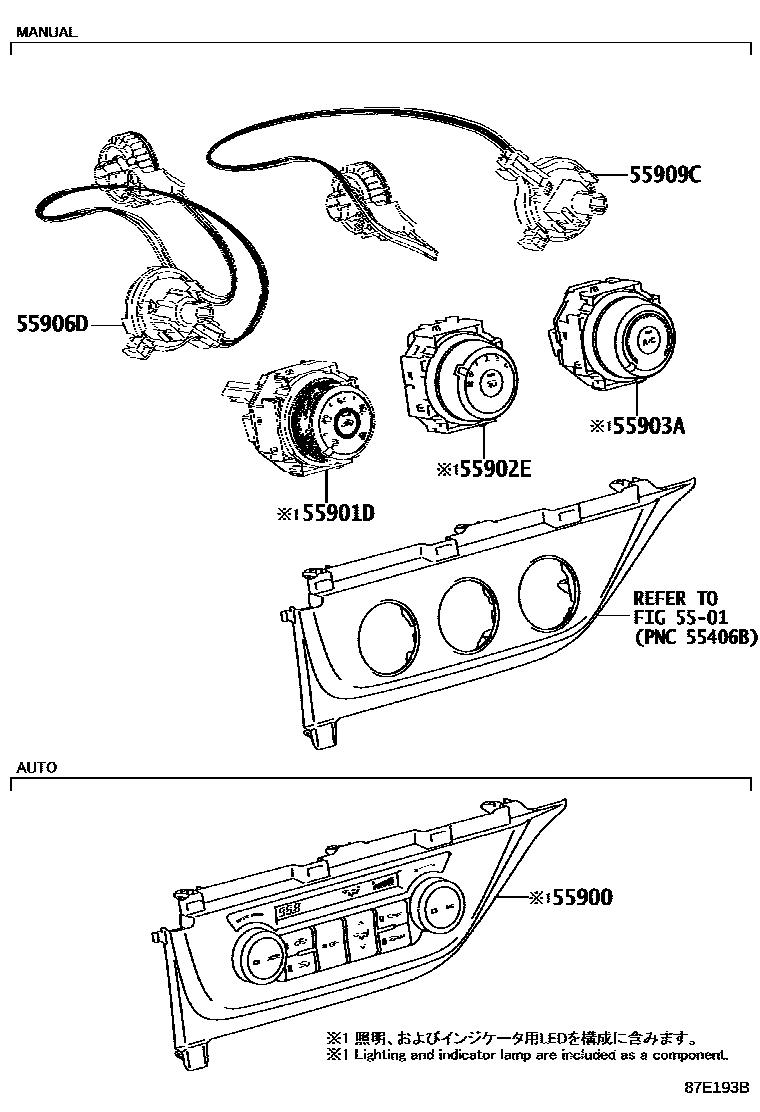

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0003 1HEATER CONTROL PANEL 0005 1AIR DUCT 0007 1AIR DUCT 0009 1SENSOR 0011 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55900CONTROL ASSY, AIR CONDITIONER

main55900-02580iZRE173..N..VEN201403-201708

main55900-02B90iZRE17#..E201703-201908

main55900-02C00iZRE173..6F..N201703-202002

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-42040iZRE173..D201403-201708

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-42160iZRE172..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-42090iZRE172..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-0K010iZRE173..D;ZRE172..BZ201403-201708

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010iZRE173..D;ZRE172..BZ201403-201708

7 parts on this diagram · 6 diagrams in section
