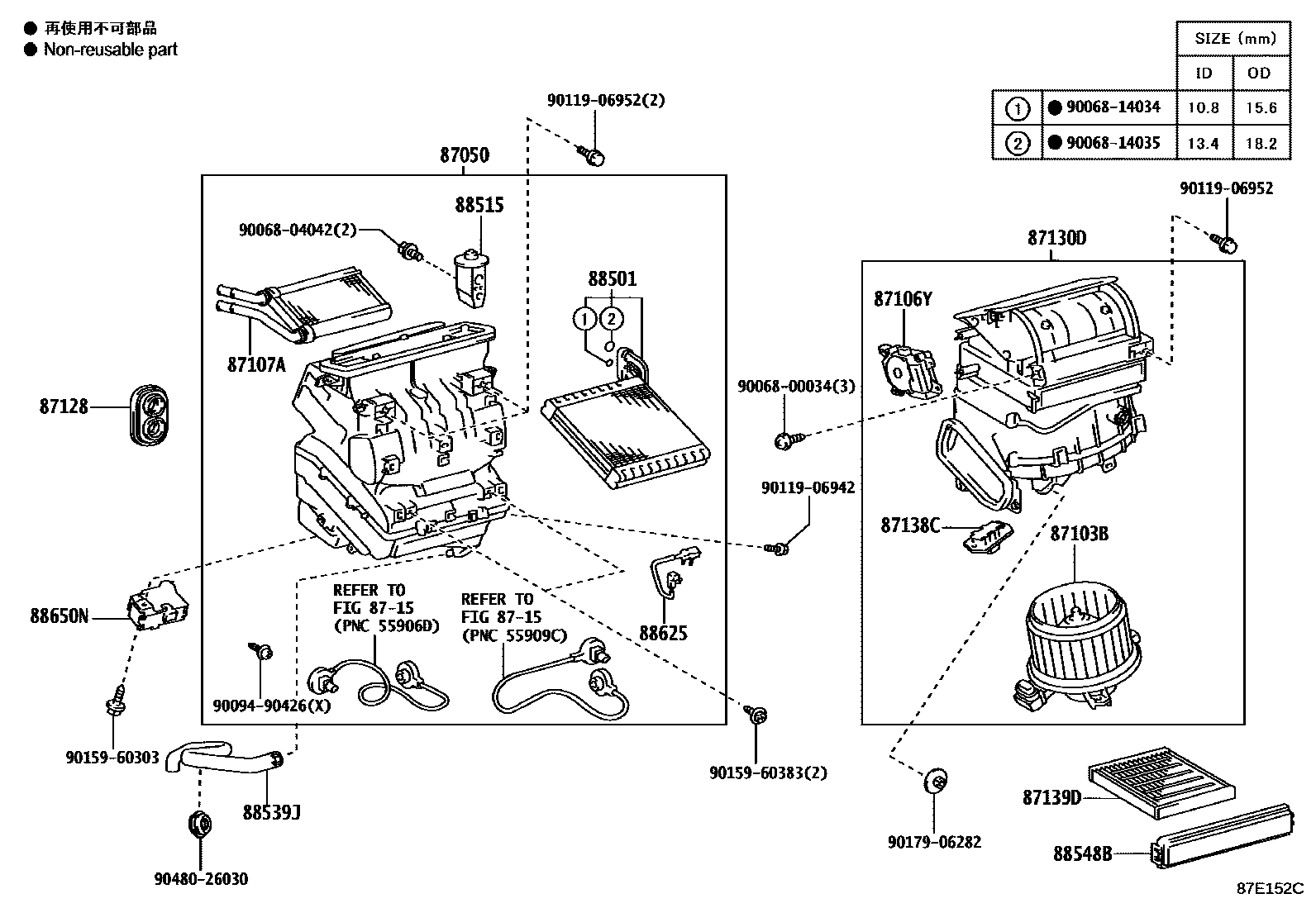

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1AUTO AIR CONDITIONER 0004 1AUTO AIR CONDITIONER 0005 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02F40iZRE172..LA;ZRE173..BZ201403-201703

main87050-02G00iZRE173..6F..D201708-202002

main87050-02J10iZRE172..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main87050-02N80iZRE173..4FC..N201708

main87050-12410iZRE17#..E201703-201908

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02280iZRE172..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main87103-02330iZRE172..N..LA;ZRE173..N..BZ201703-201908

main87103-12080iZRE173..4FC..N201708

main87103-42101iZRE17#..E201703-201908

87106YSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH)

main87106-02430iZRE172..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main87106-02440iZRE172..LA;ZRE173..BZ201403-201703

main87106-42130iZRE173..4FC..D201708

main87106-42140iZRE173..N..VEN201501-201708

main87106-47130iZRE17#..E201703-201908

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02260iZRE17#..N..(BZ,LA)201703-201908

main87107-0K030iZRE173..VEN201501-201708

main87107-42170iZRE17#..E201703-201908

87128GROMMET, HEATER

main87128-02100iZRE17#..BZ,LA201703-201908

main87128-42010iZRE173..VEN201501-201708

87130DBLOWER ASSY

main87130-02630iZRE172..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main87130-02640iZRE172..LA;ZRE173..BZ201403-201703

main87130-02650iZRE173..D201501-201708

main87130-02660iZRE173..4FC..N201708

main87130-12571iZRE17#..E201703-201908

87138CRESISTOR, BLOWER

main87138-26160iZRE173..6F..D201703-202002

87139DELEMENT, AIR REFINER

main87139-02150iZRE17#..BZ,LA201403-201703

main87139-52040iZRE173..VEN201501-201708

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02251iZRE17#..BZ,LA201403-201703

main88501-12510iZRE173..6F201708-202002

main88501-72020iZRE17#..E201703-201908

88515VALVE, COOLER EXPANSION

main88515-02410iZRE17#..BZ,LA201403-201502

main88515-02640iZRE17#..N..(BZ,LA)201703-201908

main88515-12100iZRE17#..E201703-201908

main88515-68010iZRE173..6F201708-202002

88539JHOSE, DRAIN COOLER

main88539-02350iZRE17#..BZ,LA201403-201703

main88539-02360iZRE173..VEN201501-201708

88548BCASE, AIR FILTER

main88548-02170iZRE17#..BZ,LA201703-201908

main88548-02180iZRE173..4FC201708

88625THERMISTOR, COOLER, NO.1

main88620-02120iZRE173..6F201703-202002

main88625-26090iZRE17#..E201703-201908

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02C70iZRE172..BZ; ZRE172..N..LA201403-201406

W/O(RADIO RECEIVER)

main88650-02C71iZRE172..BZ; ZRE172..N..LA201407-201703

W/O(RADIO RECEIVER)

main88650-02C80iZRE173;ZRE172..LA201403-201406

main88650-02C81iZRE173..N..VEN201407-201708

main88650-02J60iZRE173..6F..N201703-202002

main88650-02J70iZRE17#..E201703-201908

9006800034

main90068-00034

9006804042

main90068-04042

9006814034

main90068-14034

9006814035

main90068-14035

9009490426

main90094-90426

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

26 parts on this diagram · 5 diagrams in section
