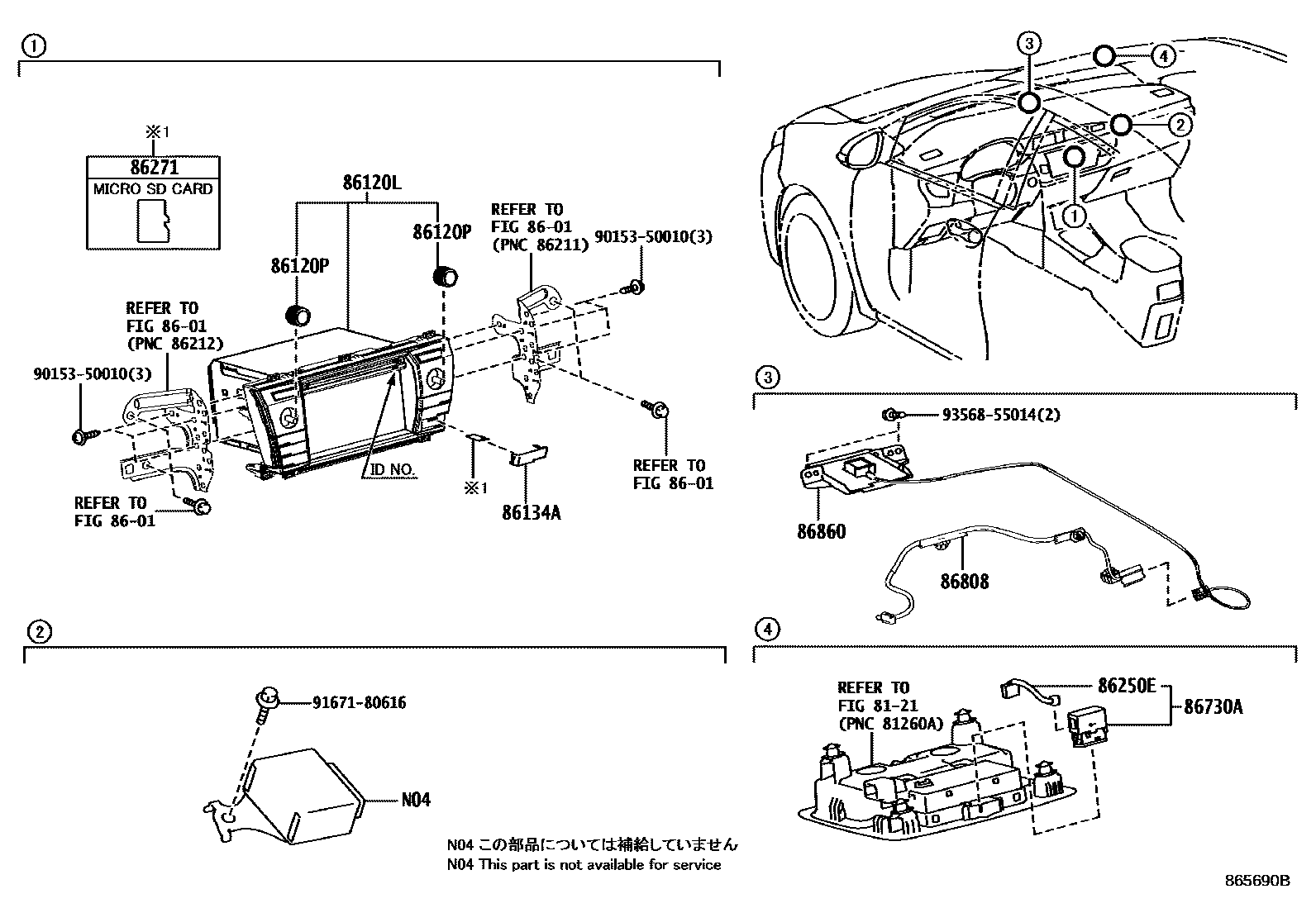

NAVIGATION & FRONT MONITOR DISPLAY
8121INTERIOR LAMP
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86120LRECEIVER ASSY, NAVIGATION
PIONEER,ID=P10515
PIONEER,ID=P10547
PIONEER,ID=P10547; PIONEER,ID=P10547,AUDIO-AVN & 6SPEAKER
AUDIO-AVN & 6SPEAKER
PIONEER,ID=P11316
main86804-02140iZRE172..CVT..LA; ZRE172..CVT..LA;ZRE172..6F..N..LA; ZRE172..LA; ZRE172..N..LA201703-201902
PIONEER,ID=P11315,CHILE SPEC; PIONEER,ID=P11315,CHILE SPEC&STANDARD GRADE PACKAGE; PIONEER,ID=P11315,COLOMBIA SPEC; PIONEER,ID=P11315,PERU SPEC; PIONEER,ID=P11315,PERU SPEC&STANDARD GRADE PACKAGE; PIONEER,ID=P11315,STANDARD GRADE PACKAGE
86120PKNOB, NAVIGATION RECEIVER SWITCH
W/O(RADIO RECEIVER)
86134APARTS, MULTI-DISPLAY
W/O(RADIO RECEIVER)
86250EMICROPHONE ASSY, AMPLIFIER
W/O(RADIO RECEIVER); W/O(RADIO RECEIVER)&AUDIO-AM/FM & CD & USB & 4SPEAKER
86271DISC, DISC PLAYER
AUDIO-AVN & 6SPEAKER,MICRO SD CARD; MICRO SD CARD; W/O(RADIO RECEIVER),MICRO SD CARD
MICRO SD CARD; W/O(RADIO RECEIVER),MICRO SD CARD
MICRO SD CARD
MICRO SD CARD
AUDIO-AVN & 6SPEAKER,MICRO SD CARD; MICRO SD CARD
main86271-33233iZRE172..CVT..LA; ZRE172..CVT..LA;ZRE172..6F..N..LA; ZRE172..LA; ZRE172..N..LA201710-201807
CHILE SPEC; CHILE SPEC&STANDARD GRADE PACKAGE; COLOMBIA SPEC; PERU SPEC; PERU SPEC&STANDARD GRADE PACKAGE; STANDARD GRADE PACKAGE
main86271-33234iZRE172..CVT..LA; ZRE172..CVT..LA;ZRE172..6F..N..LA; ZRE172..LA; ZRE172..N..LA201808-201902
CHILE SPEC; CHILE SPEC&STANDARD GRADE PACKAGE; COLOMBIA SPEC; PERU SPEC; PERU SPEC&STANDARD GRADE PACKAGE; STANDARD GRADE PACKAGE
86730AMICROPHONE ASSY, TELEPHONE
W/O(RADIO RECEIVER); W/O(RADIO RECEIVER)&AUDIO-AM/FM & CD & USB & 4SPEAKER
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)
86860ANTENNA ASSY, NAVIGATION
ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)
9015350010
main90153-50010
9167180616
main91671-80616
9356855014
main93568-55014
13 parts on this diagram · 2 diagrams in section
