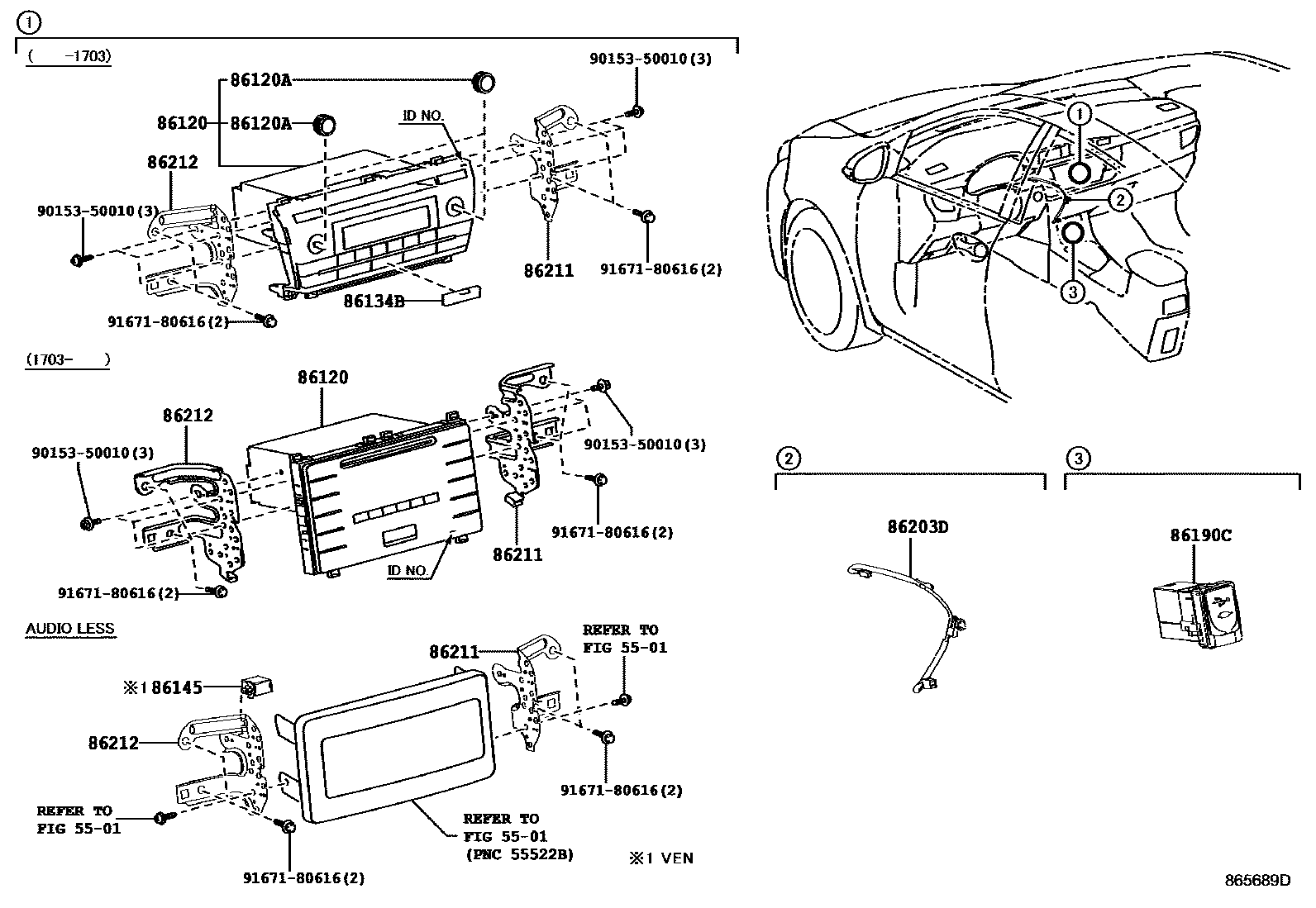

RADIO RECEIVER & AMPLIFIER & CONDENSER
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
86120RECEIVER ASSY, RADIO
main86120-02J00iZRE17#..N..BZ; ZRE172..CVT..BZ; ZRE172..CVT..N;ZRE172..6F..N..LA; ZRE172..N201403-201701
PIONEER,ID=10549; PIONEER,ID=10549,AUDIO-AVN & 6SPEAKER; PIONEER,ID=10549,AUDIO-RADIO LESS 2DIN COVER; PIONEER,ID=10549,W/O(RADIO RECEIVER)
main86120-02J01iZRE17#..N..BZ; ZRE172..CVT..BZ; ZRE172..CVT..N;ZRE172..6F..N..LA; ZRE172..N201701-201703
PIONEER; PIONEER,AUDIO-AVN & 6SPEAKER; PIONEER,AUDIO-RADIO LESS 2DIN COVER; PIONEER,W/O(RADIO RECEIVER)
PIONEER,ID=10550,AUDIO-AM/FM & CD & USB & 4SPEAKER
PIONEER,ID=P11446,STANDARD GRADE PACKAGE; PIONEER,ID=P11446,UP GRADE PACKAGE
86120AKNOB, RADIO RECEIVER SWITCH
main90011-25233×2iZRE172..BZ; ZRE172..CVT..BZ; ZRE172..CVT..N;ZRE172..6F..N..LA; ZRE172..N; ZRE173..N..BZ201403-201703
AUDIO-AVN & 6SPEAKER; AUDIO-RADIO LESS 2DIN COVER; W/O(RADIO RECEIVER)
86134BPARTS, MULTI-DISPLAY
main86134-02040iZRE17#..N..BZ; ZRE172..CVT..BZ; ZRE172..CVT..N;ZRE172..6F..N..LA; ZRE172..N201403-201703
AUDIO-AVN & 6SPEAKER; AUDIO-RADIO LESS 2DIN COVER; W/O(RADIO RECEIVER)
86145CONNECTOR, ANTENNA MALE
86190CADAPTER ASSY, STEREO JACK, NO.1
W/O(RADIO RECEIVER); W/O(RADIO RECEIVER)&AUDIO-AM/FM CD BLUETOOTH USB 6SPEAKER
86203DWIRE, STEREO COMPONENT, NO.1
W/O(RADIO RECEIVER); W/O(RADIO RECEIVER)&AUDIO-AM/FM CD BLUETOOTH USB 6SPEAKER
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
9015350010
main90153-50010
9167180616
main91671-80616
11 parts on this diagram · 2 diagrams in section
