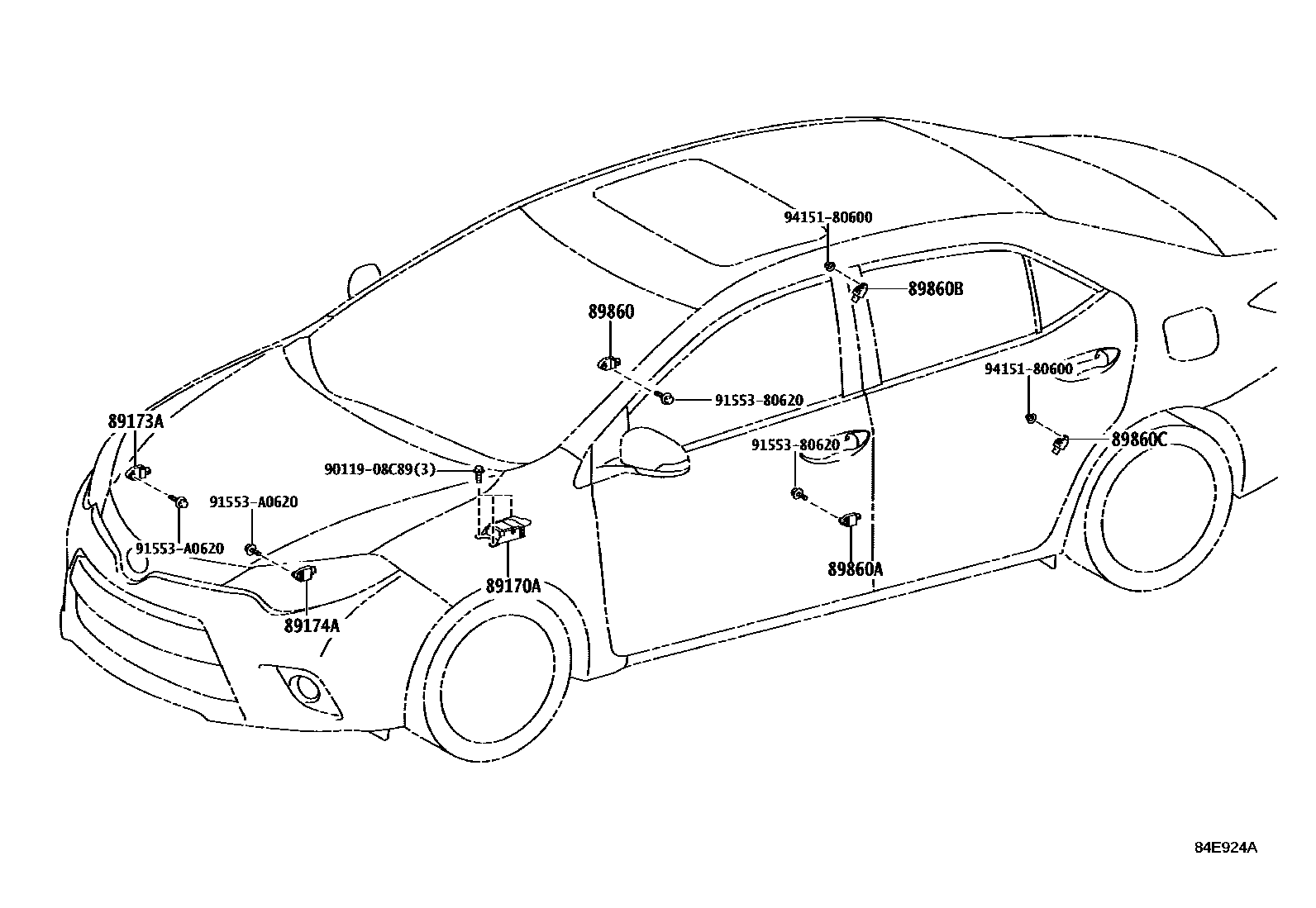

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-02E60iZRE172..6F..E201403-201703

main89170-02E70iZRE17#..CVT..E201403-201703

main89170-02E80iZRE17#..CVT..N201403-201703

main89170-02E90iZRE172..6F..N201403-201703

main89170-02F00iZRE173..VEN201501-201708

main89170-02N00iZRE17#201703-202012

89173ASENSOR, AIRBAG, FRONT RH

main89173-09A60iZRE173..VEN201501-201708

main89173-19485iZRE17#..BZ,LA201403-201703

89174ASENSOR, AIRBAG, FRONT LH

main89173-09A60iZRE172;ZRE173..ATM,CVT201703

main89173-19485iZRE17#..BZ,LA201403-201703

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02260iZRE172;ZRE173..ATM,CVT201703

main89831-12040iZRE17#..BZ,LA201403-201703

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02260iZRE172;ZRE173..ATM,CVT201703

main89831-12040iZRE17#..BZ,LA201403-201703

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-02270iZRE172;ZRE173..ATM,CVT201703

main89831-12030iZRE17#..E201403-201703

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-02270iZRE172;ZRE173..ATM,CVT201703

main89831-12030iZRE17#..E201403-201703

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0620

main91553-A0620

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
