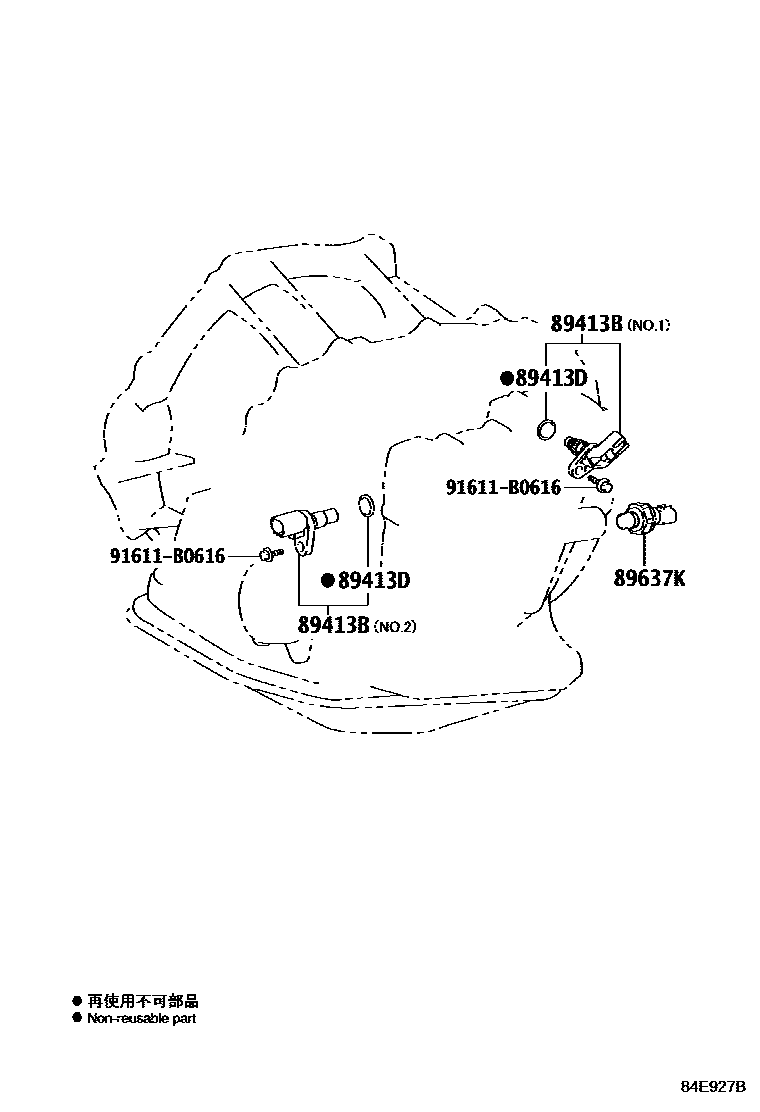

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12020iZRE172..CVT201403-201703

NO.1

main89413-28010×2iZRE173..BZ201403-201703

NO.1

main89413-28011×2iZRE173..BZ201808-201908

NO.1

main89413-60020iZRE17#..CVT201703-201807

NO.2

main89413-60021iZRE17#..CVT201808-201908

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iZRE173..4FC201703

89637KSENSOR, OIL PRESSURE

main89637-63010iZRE17#..CVT201403-201703

91611B0616

main91611-B0616

4 parts on this diagram · 3 diagrams in section
