ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

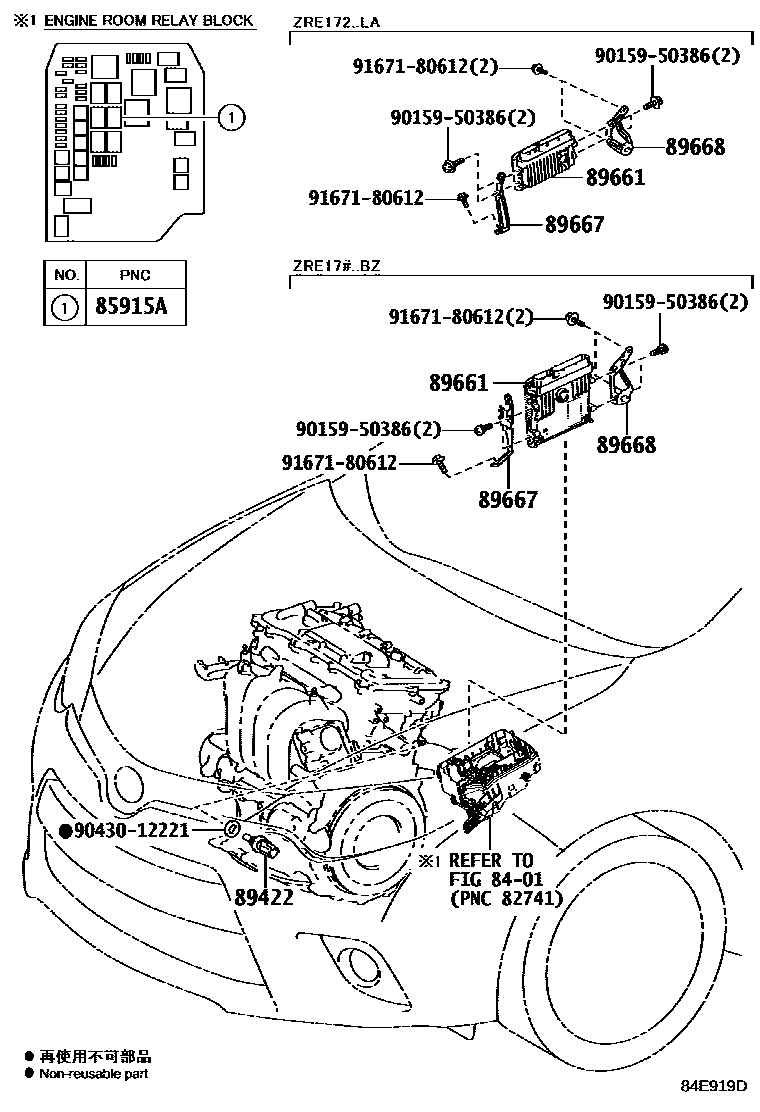

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915ARELAY, MAIN

main90080-87021iZRE17#..BZ,LA201403-201703

main90987-02027iZRE173..VEN201501-201708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE172;ZRE173..ATM,CVT201703

89661COMPUTER, ENGINE CONTROL

main89661-0ZG50iZRE173201403-201411

main89661-0ZG51iZRE173..BZ201412-201703

main89661-0ZG60iZRE172..CVT..BZ201403-201411

main89661-0ZG61iZRE172..CVT..BZ201412-201703

main89661-0ZG70iZRE172..6F..BZ201403-201411

main89661-0ZG71iZRE172..6F..BZ201412-201703

main89661-0ZU30iZRE173..BZ201703-201908

main89661-0ZU40iZRE172..CVT..BZ201703-201908

main89661-0ZU50iZRE172..6F..BZ201703-201908

main89661-12T60iZRE173..6F201501-201708

main89661-12T70iZRE173..4FC201501-201708

main89661-12W80iZRE173..6F201708-202002

FUJITSU TEN

main89661-12W90iZRE173..4FC201708

FUJITSU TEN

main89661-0ZK90iZRE172..6F..LA; ZRE172..6F..N..LA201801-201908

DENSO,CHILE SPEC; DENSO,PERU SPEC

main89661-0ZN40supersedes 89661-0ZJ90iZRE172..CVT..LA201801-201908

DENSO,CHILE SPEC; DENSO,COLOMBIA SPEC; DENSO,PERU SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02340iZRE173..4FC201708

main89667-02380iZRE17#..BZ201703-201908

main89667-02390iZRE172..LA201703-201908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02320iZRE173..4FC201708

main89668-02360iZRE17#..BZ201403-201703

main89668-02370iZRE172..LA201703-201908

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

9 parts on this diagram · 2 diagrams in section
