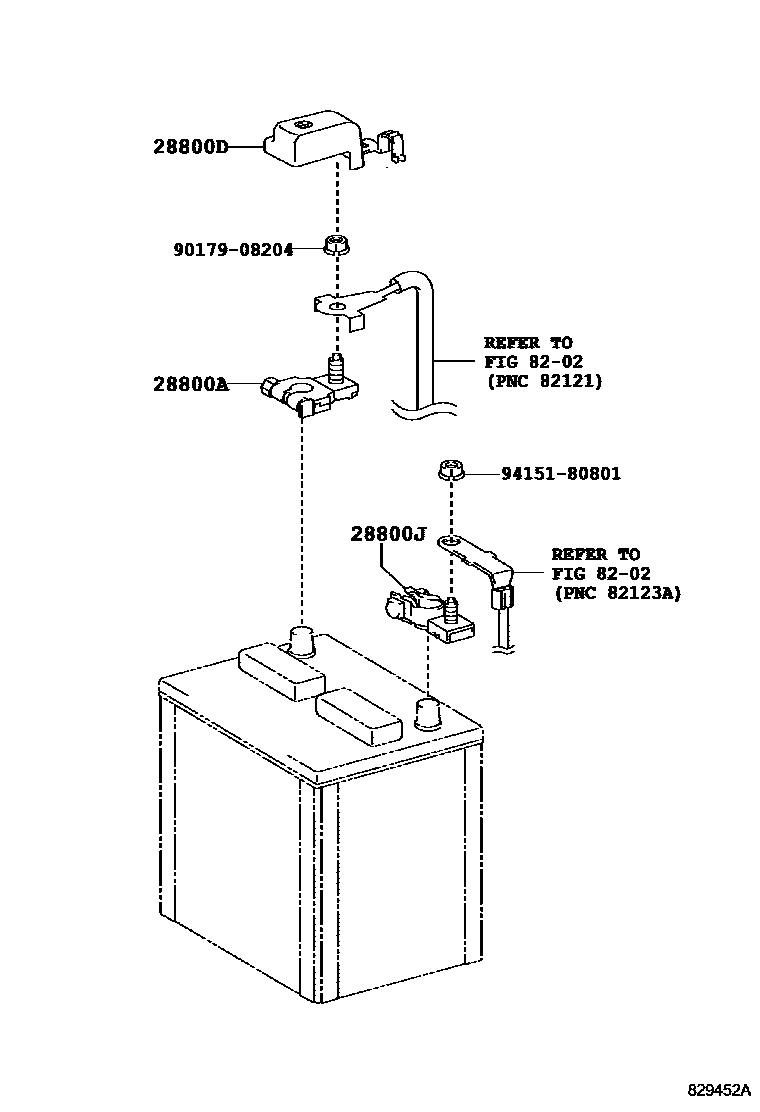

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2ZR#,3ZRFBE..ZRE17#201403-201703

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2ZR#,3ZRFBE..ZRE17#201403-201703

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2ZR#,3ZRFBE..ZRE17#201403-201703

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
