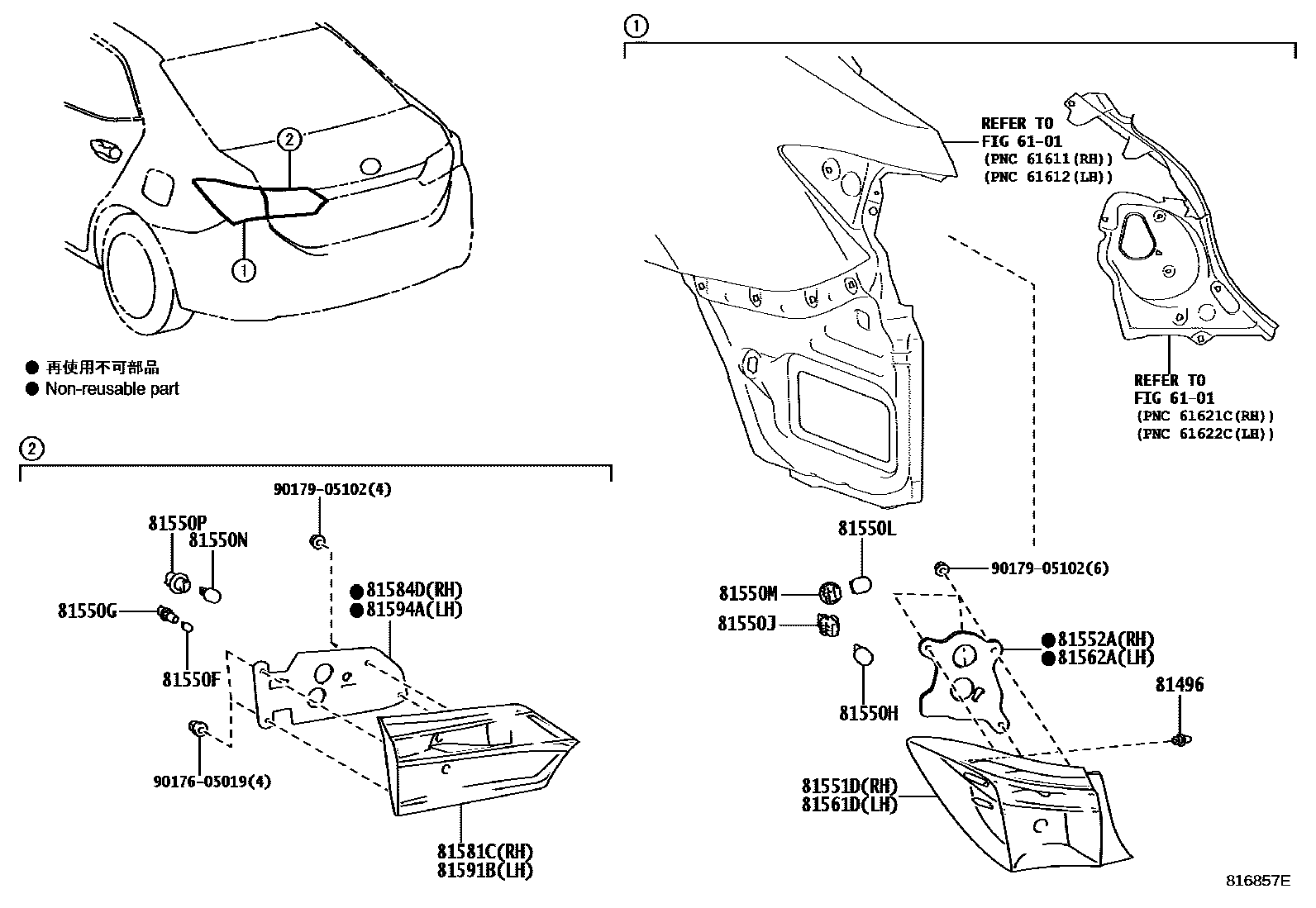

REAR COMBINATION LAMP

0001 1 0003 1LED TYPE 0005 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iZRE173..VEN201403-202002

81550FBULB, TAILLAMP

main99132-12050iZRE172..BZ201403-201708

12V 5W

main99132-12050iZRE172..BZ201403-201703

12V 5W,W/O(RADIO RECEIVER)

81550GSOCKET, TAILLAMP

main90075-60077iZRE172..BZ201403-201703

W/O(RADIO RECEIVER)

main90075-60077iZRE173..D201403-201708

81550HBULB, TAIL & STOP LAMP

main90981-13044iZRE172..BZ201403-201708

12V 21/5W

main90981-13044iZRE172..BZ201403-201703

12V 21/5W,W/O(RADIO RECEIVER)

81550JSOCKET, TAIL & STOP LAMP

main90075-60002iZRE172..BZ201403-201703

W/O(RADIO RECEIVER)

main90075-60002iZRE173..D201403-201708

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iZRE172;ZRE173..ATM,CVT201403-202002

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026iZRE173..VEN201403-202002

81550NBULB, BACK UP LAMP

main90981-11059iZRE17#..BZ,LA201403-202002

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-60001iZRE172;ZRE173..ATM,CVT201403-202002

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02800iZRE173..N..VEN201403-201708

main81551-02810iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81551-02810iZRE173..D201403-201708

main81551-02C20iZRE173..6F201703-202002

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-02800iZRE172..LA;ZRE173..BZ201403-201708

main81552-02810iZRE173..D201403-201708

main81552-02810iZRE172..BZ201403-201703

W/O(RADIO RECEIVER)

main81552-02C20iZRE172;ZRE173..ATM,CVT201703-202002

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02800iZRE173..N..VEN201403-201708

main81561-02810iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81561-02810iZRE173..D201403-201708

main81561-02C20iZRE173..6F201703-202002

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-02800iZRE172..LA;ZRE173..BZ201403-201708

main81552-02810iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81552-02810iZRE173..D201403-201708

main81552-02C20iZRE173..6F201703-202002

81581CLENS AND BODY, REAR LAMP, RH

main81581-02640iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81581-02640iZRE173..D201403-201708

main81581-02650iZRE173..BZ201503-201708

main81581-02A00iZRE172..LA201403-201703

main81581-02B30iZRE172;ZRE173..ATM,CVT201703-202002

81584DGASKET, REAR LAMP

main81584-02640iZRE172..BZ201403-201703

W/O(RADIO RECEIVER)

main81584-02640iZRE173..D201403-201708

main81594-02810iZRE172..LA;ZRE173..BZ201403-201708

81591BLENS AND BODY, REAR LAMP, LH

main81591-02640iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81591-02640iZRE173..D201403-201708

main81591-02650iZRE173..N..VEN201503-201708

main81591-02810iZRE172..LA201403-201703

main81591-02A00iZRE173..E,N201403-201503

main81591-02B30iZRE173..6F201703-202002

main81591-02B40iZRE172..LA201703-201908

81594AGASKET, REAR LAMP LH

main81584-02640iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81584-02640iZRE173..D201403-201708

main81584-02B30iZRE172..BZ;ZRE173..ATM,CVT201703-202002

main81594-02810iZRE173..N..VEN201403-201708

9017605019

main90176-05019

9017905102

main90179-05102

20 parts on this diagram · 3 diagrams in section
