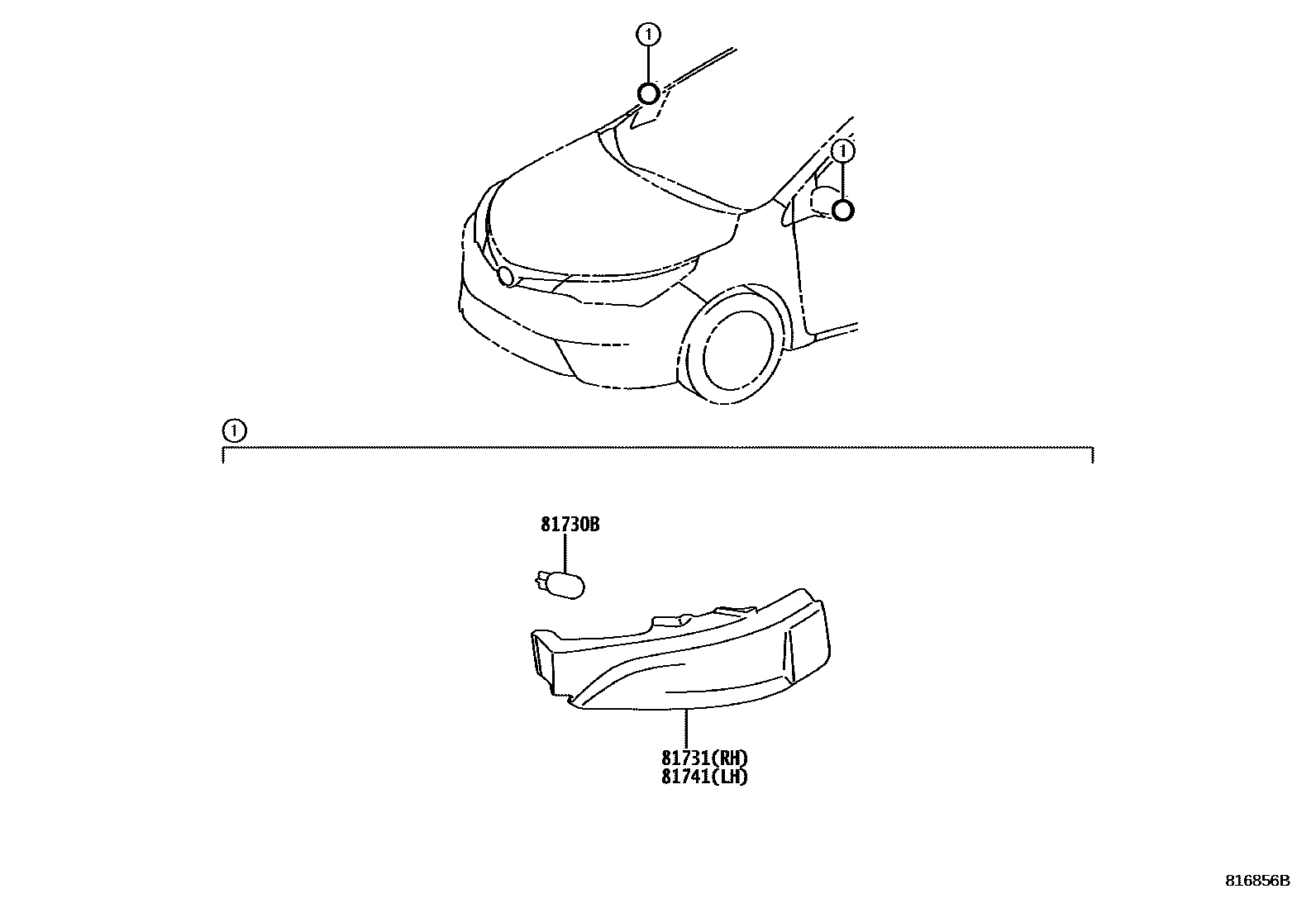

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-52100iZRE173..VEN201501-201708

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-WF011×2iZRE17#..BZ,LA201403-201703

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-02150iZRE17#..BZ,LA201403-201703

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-02150iZRE17#..BZ,LA201403-201703

4 parts on this diagram · 2 diagrams in section
