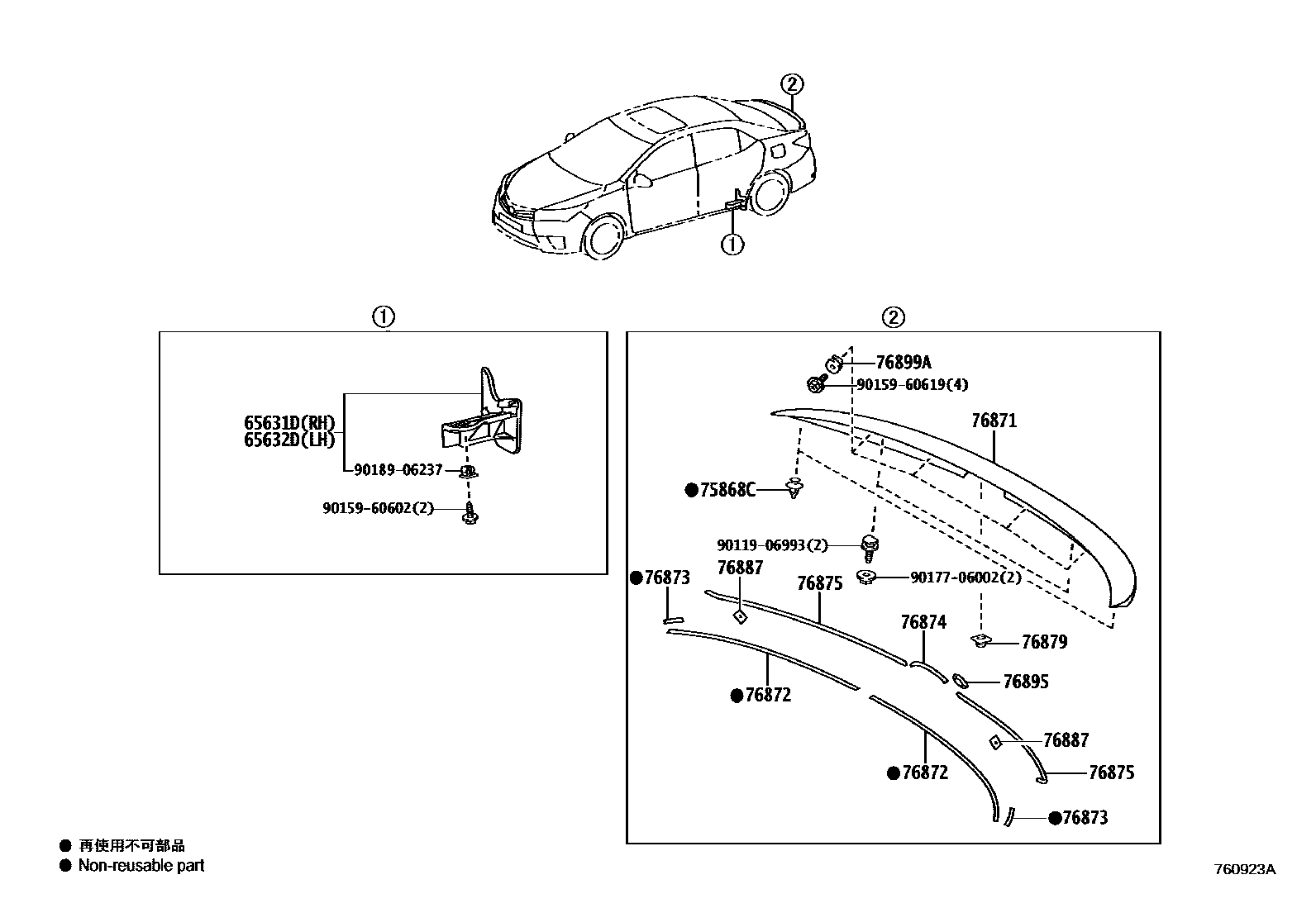

MUDGUARD & SPOILER

0001 1 0002 1SPORT PACKAGE : FRONT & SIDE 0003 1SPORT PACKAGE : REAR

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02280iZRE173..VEN201403-201708

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-02280iZRE17#..BZ,LA201403-201703

75868CCLIP, REAR SPOILER, NO.2

main75868-60020×2iZRE173..6F..N201708-202002

76871SPOILER, REAR

main76871-02927iZRE173..N..VEN201501-201708

PAINT REQ.

main76871-02928iZRE173..N..BZ201703-201908

PAINT REQ.,SPORT PACKAGE

76872PROTECTOR, REAR SPOILER, NO.1

main76872-02050×2iZRE173..4FC..N201708

76873PROTECTOR, REAR SPOILER, NO.2

main76873-02060×2iZRE173..N..VEN201501-201708

76874PROTECTOR, REAR SPOILER, NO.3

main76874-02070iZRE173..N..VEN201501-201708

76875PROTECTOR, REAR SPOILER, NO.4

main76875-02040×2iZRE173..N..VEN201501-201708

76879CLIP, REAR SPOILER, NO.1

main90467-09196iZRE173..N..VEN201501-201708

76887SEAL, REAR SPOILER

main76887-02040×2iZRE173..N..VEN201501-201708

76895PROTECTOR, REAR SPOILER, NO.5

main76895-02120iZRE173..N..VEN201501-201708

76899ANUT, REAR SPOILER

main76899-60010×4iZRE173..N..VEN201501-201708

9011906993

main90119-06993

9015960602

main90159-60602

9015960619

main90159-60619

9017706002

main90177-06002

9018906237

main90189-06237

17 parts on this diagram · 3 diagrams in section
