SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02160iZRE173..VEN201403-201708

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02160iZRE17#..BZ,LA201403-201703

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02260iZRE17#..BZ,LA201403-201703

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02250iZRE17#..BZ,LA201403-201703

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iZRE17#..BZ,LA201403-201703

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02380iZRE17#..E201403-201703

main75710-02410iZRE173..6F..D201703-202002

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02380iZRE173..6F..N201703-202002

main75720-02410iZRE173..6F..D201703-202002

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02360iZRE17#..E201403-201703

main75730-02390iZRE173..4FC..D;ZRE17#..N..(BZ,LA)201703

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02360iZRE17#..E201403-201703

main75740-02390iZRE173..4FC..D;ZRE17#..N..(BZ,LA)201703

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-02080iZRE173..6F201703-202002

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-02070iZRE17#..BZ,LA201403-201703

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-02070iZRE17#..BZ,LA201403-201703

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-02070iZRE173..VEN201403-201708

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iZRE17#..BZ,LA201403-201703

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75851-02180iZRE17#..BZ,LA201403-201703

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75852-02180iZRE17#..BZ,LA201403-201703

76924GRETAINER, ROCKER PANEL MOULDING

main76924-12030×22iZRE17#..BZ,LA201403-201703

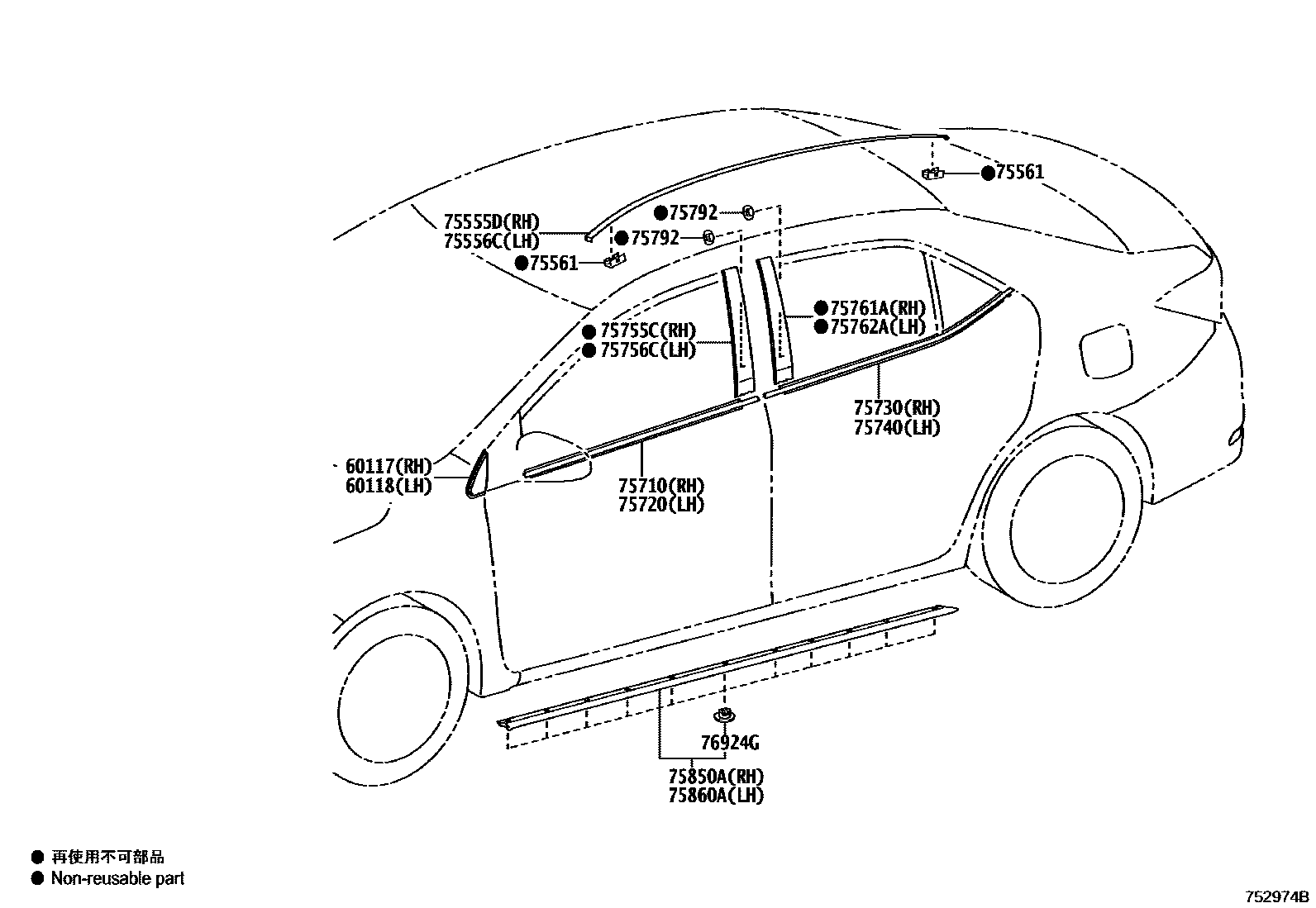

17 parts on this diagram · 1 diagram in section
