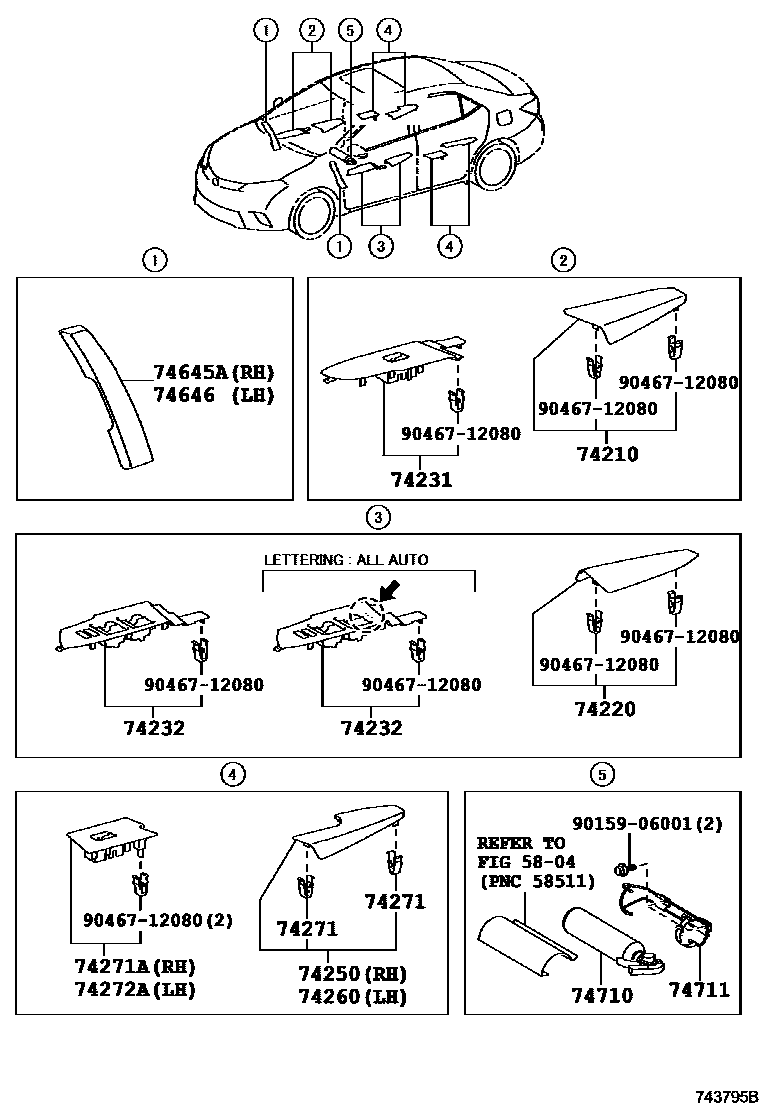

ARMREST & VISOR

0001 1ARMREST & EXTINGUISHER 0002 1VISOR & ASSIST GRIP

5804

74210ARMREST ASSY, FRONT, RH

main74210-02450-C0iZRE172..N;ZRE173..4FC..D201403-202002

BLACK,TRIM1#

main74210-02460-C1iZRE173..N..BZ201403-201908

BLACK/LT.GRAY,TRIM0#

main74210-02460-C1iZRE173..N..BZ201703-201908

BLACK/LT.GRAY,TRIM2#

main74210-02460-C1iZRE173..N..BZ201403-201908

UP GRADE PACKAGE,BLACK/LT.GRAY,TRIM1#

main74210-02460-C1iZRE173..E201703-201908

BLACK/LT.GRAY,TRIM1#,2#

main74210-02460-C1iZRE173..N201403-202002

BLACK/LT.GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-02420-C0iZRE172..N;ZRE173..4FC..D201403-202002

BLACK,TRIM1#

main74220-02430-C1iZRE172..E201403-201908

UP GRADE PACKAGE,BLACK/LT.GRAY,TRIM1#

main74220-02430-C1iZRE17#..E201403-201908

BLACK/LT.GRAY,TRIM0#

main74220-02430-C1iZRE173..N201403-202002

BLACK/LT.GRAY,TRIM1#

main74220-02430-C1iZRE173..N..BZ201703-201908

BLACK/LT.GRAY,TRIM1#,2#

main74220-02430-C1iZRE173..N..BZ201703-201908

BLACK/LT.GRAY,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02F10-C0iZRE17#..E201403-201908

BLACK,TRIM0#

main74231-02F10-C0iZRE17#..D,N201403-202002

BLACK,TRIM1#

main74231-02F10-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main74231-02F10-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02F80-C0iZRE172..BZ201403-201908

BLACK,TRIM1#

main74232-02F80-C0iZRE172..BZ201403-201703

W/O(RADIO RECEIVER),BLACK,TRIM1#

main74232-02F80-C0iZRE172..BZ201703-201908

STANDARD GRADE PACKAGE,BLACK,TRIM1#

main74232-02F90-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#,LETTERING:ALL AUTO

main74232-02F90-C0iZRE173..E201403-201908

BLACK,TRIM0#,LETTERING:ALL AUTO

main74232-02F90-C0iZRE172..E201703-201908

BLACK,TRIM1#,2#,LETTERING:ALL AUTO

main74232-02F90-C0iZRE173..6F201403-202002

BLACK,TRIM1#,LETTERING:ALL AUTO

74250ARMREST ASSY, REAR RH

main74250-02550-C0iZRE172..N;ZRE173..D201403-202002

BLACK,TRIM1#

main74250-02560-C2iZRE172..CVT..N;ZRE172..6F..N..LA201403-201908

BLACK/LT.GRAY,TRIM0#

main74250-02560-C2iZRE172..CVT..N;ZRE172..6F..N..LA201703-201908

BLACK/LT.GRAY,TRIM2#

main74250-02560-C2iZRE172..CVT..N;ZRE172..6F..N..LA201403-201908

UP GRADE PACKAGE,BLACK/LT.GRAY,TRIM1#

main74250-02560-C2iZRE173..N..BZ201703-201908

BLACK/LT.GRAY,TRIM1#,2#

main74250-02560-C2iZRE173..6F..N201403-202002

BLACK/LT.GRAY,TRIM1#

74260ARMREST ASSY, REAR LH

main74260-02550-C0iZRE172..N;ZRE173..D201403-202002

BLACK,TRIM1#

main74260-02560-C2iZRE172..N201403-201908

UP GRADE PACKAGE,BLACK/LT.GRAY,TRIM1#

main74260-02560-C2iZRE173..N201403-202002

BLACK/LT.GRAY,TRIM1#

main74260-02560-C2iZRE173..N..BZ201703-201908

BLACK/LT.GRAY,TRIM1#,2#

main74260-02560-C2iZRE173..N..BZ201403-201908

BLACK/LT.GRAY,TRIM0#

main74260-02560-C2iZRE173..N..BZ201703-201908

BLACK/LT.GRAY,TRIM2#

74271RETAINER, DOOR ARMREST

main55416-60030iZRE17#..BZ,LA201403-202002

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02750-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main74271-02750-C0iZRE17#..E201403-201908

BLACK,TRIM0#

main74271-02750-C0iZRE17#..D,N201403-202002

BLACK,TRIM1#

main74271-02750-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02750-C0iZRE17#..E201403-201908

BLACK,TRIM0#

main74272-02750-C0iZRE17#..D,N201403-202002

BLACK,TRIM1#

main74272-02750-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main74272-02750-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

74645ACOVER, DOOR ASSIST GRIP, RH

main74630-12110-C0iZRE17#..E201403-201611

BLACK/BLACK,TRIM0#

main74630-12110-C0iZRE173..N..VEN201501-201611

BLACK/BLACK,TRIM1#

main74630-12111-C0iZRE17#..E201611-201703

BLACK/BLACK,TRIM0#

main74630-12111-C0iZRE173..N..VEN201611-201708

BLACK/BLACK,TRIM1#

main74645-02350-C0iZRE173..D;ZRE17#..N..(BZ,LA)201403-201708

BLACK/MD.SILVER,TRIM1#

main74645-02350-C1iZRE173..E201703-201908

BLACK,TRIM0#

main74645-02350-C1iZRE173..E201703-201908

BLACK,TRIM2#

main74645-02350-C1iZRE172..E201703-201908

BLACK,TRIM1#,2#

main74645-02350-C1iZRE173..6F201703-202002

BLACK,TRIM1#

74646COVER, DOOR ASSIST GRIP, LH

main74640-12100-C0iZRE173..N..VEN201501-201611

BLACK/BLACK,TRIM1#

main74640-12100-C0iZRE17#..E201403-201611

BLACK/BLACK,TRIM0#

main74640-12101-C0iZRE17#..E201611-201703

BLACK/BLACK,TRIM0#

main74640-12101-C0iZRE173..N..VEN201611-201708

BLACK/BLACK,TRIM1#

main74646-02350-C0iZRE173..D;ZRE17#..N..(BZ,LA)201403-201708

BLACK/MD.SILVER,TRIM1#

main74646-02350-C1iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main74646-02350-C1iZRE173..E201703-201908

BLACK,TRIM1#,2#

main74646-02350-C1iZRE173..E201703-201908

BLACK,TRIM0#

main74646-02350-C1iZRE173..6F201703-202002

BLACK,TRIM1#

74710EXTINGUISHER ASSY

main74710-02010iZRE17#..BZ201403-201603

74711BRACKET SUB-ASSY, EXTINGUISHER

main74702-02020iZRE17#..BZ201403-201603

9015906001

main90159-06001

9046712080

main90467-12080

16 parts on this diagram · 2 diagrams in section
