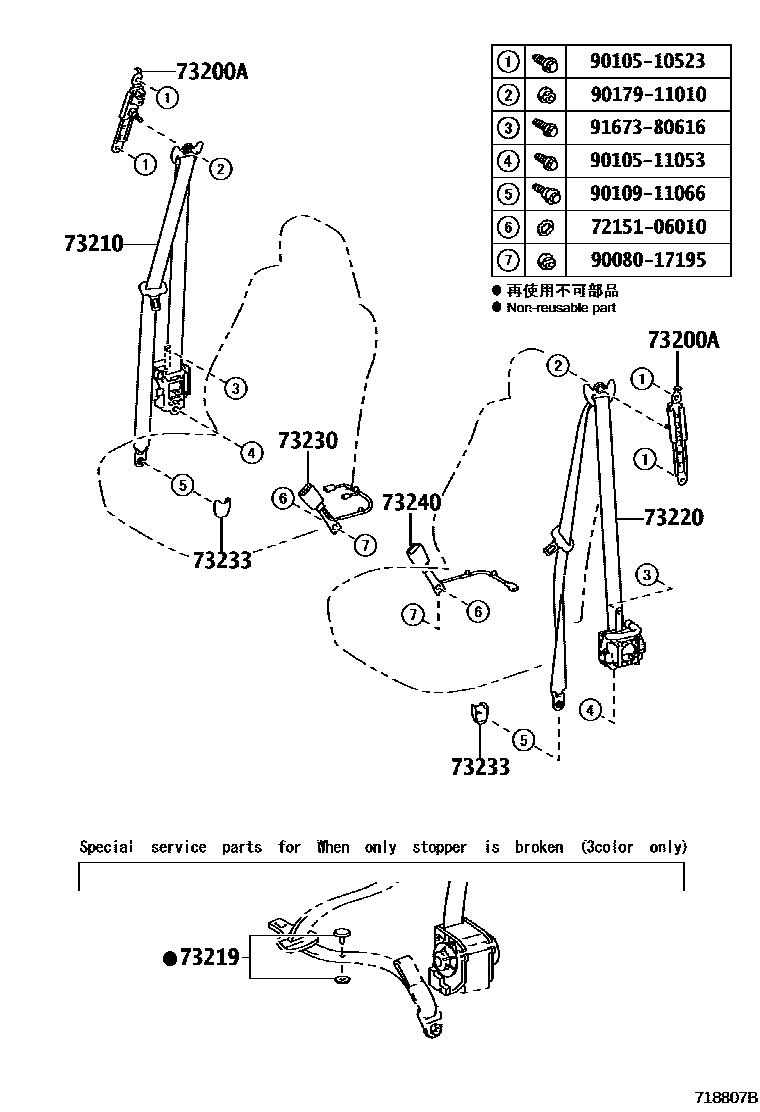

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iZRE173..6F201703-202002

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02600-A0iZRE17#..E201403-201703

IVORY,TRIM0#

main73210-02600-A1iZRE173..E201703-201908

FLAXEN,TRIM0#

main73210-02600-B0iZRE173..6F201703-202002

GRAY,TRIM1#

main73210-02600-C0iZRE172..E;ZRE173..N..BZ201703-201908

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iZRE17#..BZ,LA201403-201703

BLACK

main73219-02020iZRE17#..BZ,LA201403-201703

GRAY

main73219-02030iZRE17#..BZ,LA201403-201703

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02550-A0iZRE17#..E201403-201703

IVORY,TRIM0#

main73220-02550-A1iZRE173..E201703-201908

FLAXEN,TRIM0#

main73220-02550-B0iZRE17#..D,N201403-201708

GRAY,TRIM1#

main73220-02550-C0iZRE172..E;ZRE173..N..BZ201703-201908

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02A30-A0iZRE17#..E201403-201703

IVORY,TRIM0#

main73230-02A30-A1iZRE173..E201703-201908

FLAXEN,TRIM0#

main73230-02A30-B0iZRE17#..D,N201403-201708

GRAY,TRIM1#

main73230-02A30-C0iZRE172..E;ZRE173..N..BZ201703-201908

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2iZRE17#..D,N; ZRE17#..E201403-201610

BLACK,TRIM0#; BLACK,TRIM1#

main73233-60020-C1×2iZRE172..E; ZRE173..E; ZRE173..N..BZ201703-201908

BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02A50-A0iZRE17#..E201403-201703

IVORY,TRIM0#

main73230-02A50-A1iZRE173..E201703-201908

FLAXEN,TRIM0#

main73230-02A50-B0iZRE173..6F201703-202002

GRAY,TRIM1#

main73230-02A50-C0iZRE172..E;ZRE173..N..BZ201703-201908

BLACK,TRIM2#

7215106010RAIL, SEAT TRACK, LOWER RH

main72151-06010

9008017195

main90080-17195

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017911010

main90179-11010

9167380616

main91673-80616

14 parts on this diagram · 2 diagrams in section
