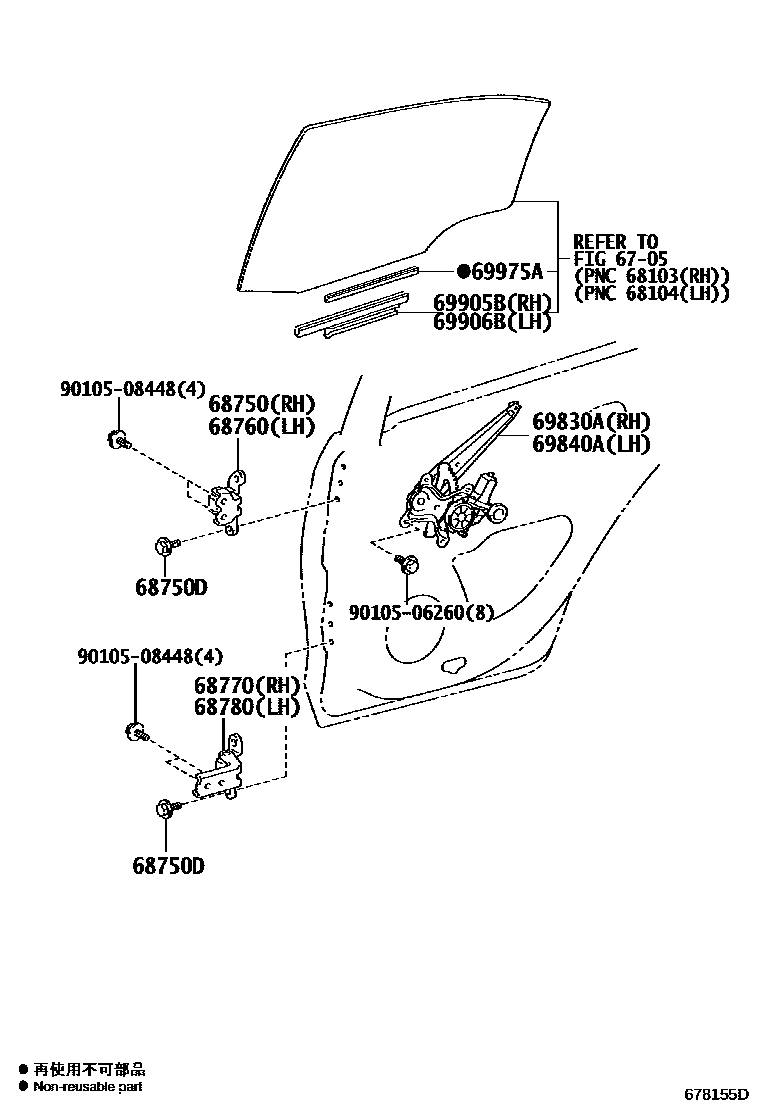

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02070iZRE17#..BZ,LA201403-201703

68750DBOLT NO.1(FOR REAR DOOR HINGE)

main90105-08291×8iZRE17#..BZ,LA201403-201703

main90105-08485×8iZRE173202003

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02070iZRE173..VEN201403-201708

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZRE173..VEN201403-201708

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZRE17#..BZ,LA201403-201703

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02590iZRE173..VEN201403-201708

main69830-02600iZRE172..BZ; ZRE172..N..LA201703-201908

STANDARD GRADE PACKAGE

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02590iZRE172..LA;ZRE173..BZ201403-201703

main69840-02600iZRE172..BZ; ZRE172..N..LA201703-201908

STANDARD GRADE PACKAGE

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-02080iZRE172;ZRE173..ATM,CVT201703

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-02080iZRE17#201403-201708

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-02120×2iZRE172;ZRE173..ATM,CVT201703

9010506260

main90105-06260

9010508448

main90105-08448

13 parts on this diagram · 1 diagram in section
