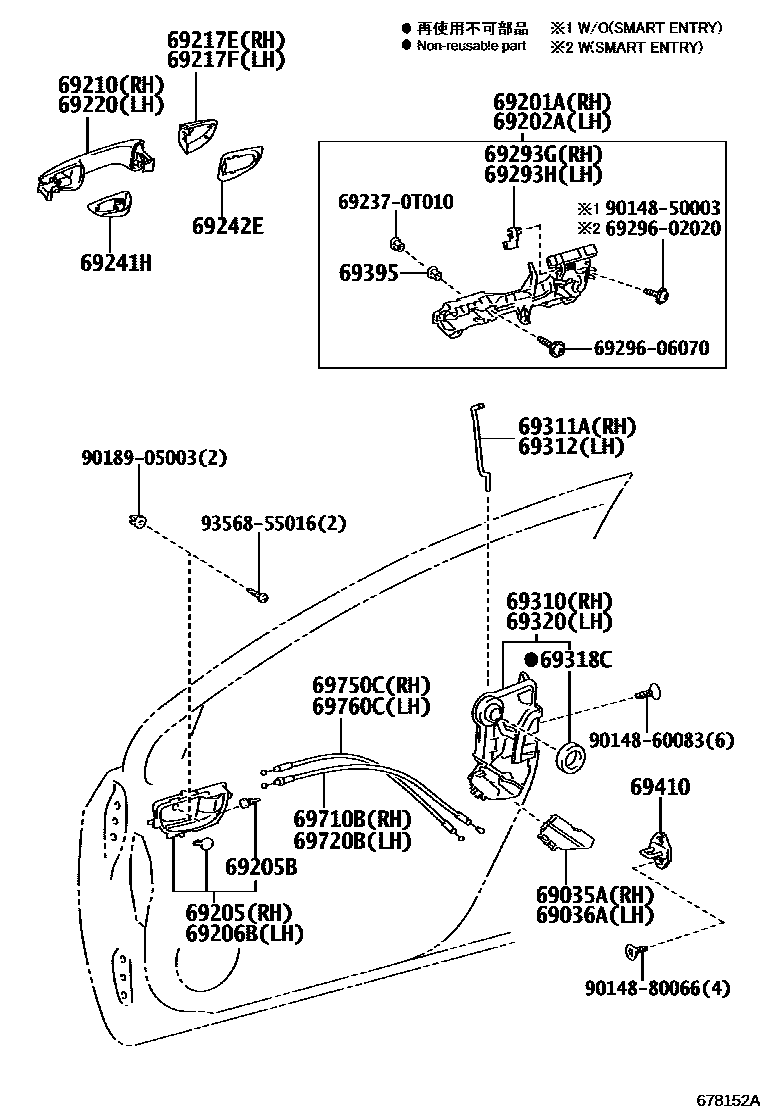

FRONT DOOR LOCK & HANDLE

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02010iZRE17#..BZ,LA201403-202002

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02010iZRE17#..BZ,LA201403-202002

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02230iZRE172..E;ZRE173..BZ201403-201908

main69201-02250iZRE173..VEN201403-202002

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02170iZRE17#..E201403-201908

main69202-02190iZRE17#..N..(BZ,LA)201403-202002

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02310-B0iZRE173..6F..D201403-202002

GRAY/GRAY,TRIM1#

main69205-02310-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main69205-02320-A0iZRE17#..E201403-201703

IVORY,TRIM0#

main69205-02320-A1iZRE173..E201703-201908

FLAXEN,TRIM0#

main69205-02320-B0iZRE173..6F..N201501-202002

GRAY,TRIM1#

main69205-02320-C0iZRE172..E201703-201908

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZRE173..6F201403-202002

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02310-B0iZRE173..D;ZRE17#..N..(BZ,LA)201403-202002

GRAY/GRAY,TRIM1#

main69206-02310-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main69206-02320-A0iZRE17#..E201403-201703

IVORY,TRIM0#

main69206-02320-A1iZRE173..E201703-201908

FLAXEN,TRIM0#

main69206-02320-B0iZRE173..6F..N201501-202002

GRAY,TRIM1#

main69206-02320-C0iZRE172..E201703-201908

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12330-A0iZRE172..E;ZRE173..BZ201403-201908

SUPER WHITE 2,040

main69210-12330-A1iZRE172..E;ZRE173..BZ201403-201908

WHITE PEARL CS.,070

main69210-12330-B1iZRE17#..E201403-201908

SILVER M.M.,1E7

main69210-12330-B3iZRE17#..E201403-201906

GRAY ME.,1G3

main69210-12330-C0iZRE17#..E201403-201908

BLACK MC.,209

main69210-12330-D0iZRE172..E;ZRE173..BZ201403-201908

RED M.M.,3R3

main69210-12330-E3iZRE172..E;ZRE173..BZ201703-201908

PHANTOM BROWN ME.,4W9

main69210-12330-J4iZRE17#..E201403-201703

DARK BLUE MC.,8P8

main69211-02930iZRE172..N;ZRE173..4FC201403-202002

PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02954iZRE17#..N..(BZ,LA)201403-202002

LESS COLOR

main69250-12030-A0iZRE17#..E201403-201908

SUPER WHITE 2,040

main69250-12030-A1iZRE172..E;ZRE173..BZ201403-201908

WHITE PEARL CS.,070

main69250-12030-B0iZRE17#..E201403-201908

SILVER M.M.,1E7

main69250-12030-B1iZRE17#..E201403-201906

GRAY ME.,1G3

main69250-12030-C0iZRE172..E;ZRE173..BZ201403-201908

BLACK MC.,209

main69250-12030-D0iZRE172..E;ZRE173..BZ201403-201908

RED M.M.,3R3

main69250-12030-E3iZRE172..E;ZRE173..BZ201703-201908

PHANTOM BROWN ME.,4W9

main69250-12030-J1iZRE17#..E201403-201703

DARK BLUE MC.,8P8

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-02911iZRE173..6F201403-202002

LESS COLOR

main69250-12010-A1iZRE17#..E201403-201908

SUPER WHITE 2,040

main69250-12010-A2iZRE17#..E201403-201908

WHITE PEARL CS.,070

main69250-12010-B3iZRE17#..E201403-201906

GRAY ME.,1G3

main69250-12010-B5iZRE172..E;ZRE173..BZ201403-201908

SILVER M.M.,1E7

main69250-12010-C0iZRE172..E;ZRE173..BZ201403-201908

BLACK MC.,209

main69250-12010-D0iZRE172..E;ZRE173..BZ201403-201908

RED M.M.,3R3

main69250-12010-E4iZRE172..E;ZRE173..BZ201703-201908

PHANTOM BROWN ME.,4W9

main69250-12010-J4iZRE17#..E201403-201703

DARK BLUE MC.,8P8

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69212-02903iZRE17#..N..(BZ,LA)201403-202002

LESS COLOR

main69220-12260-A1iZRE17#..E201403-201908

SUPER WHITE 2,040

main69220-12260-A2iZRE17#..E201403-201908

WHITE PEARL CS.,070

main69220-12260-B3iZRE17#..E201403-201906

GRAY ME.,1G3

main69220-12260-B5iZRE17#..E201403-201908

SILVER M.M.,1E7

main69220-12260-C0iZRE17#..E201403-201908

BLACK MC.,209

main69220-12260-D0iZRE172..E;ZRE173..BZ201403-201908

RED M.M.,3R3

main69220-12260-E4iZRE172..E;ZRE173..BZ201703-201908

PHANTOM BROWN ME.,4W9

main69220-12260-J5iZRE17#..E201403-201703

DARK BLUE MC.,8P8

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02140iZRE172;ZRE173..ATM,CVT201403-202002

RH

main69241-02150iZRE173..VEN201403-202002

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02130iZRE17#..BZ,LA201403-202002

RH

main69242-02140iZRE173..6F201403-202002

LH

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iZRE17#..N..(BZ,LA)201403-202002

main69293-33010iZRE17#..E201403-201908

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iZRE172..N;ZRE173..4FC201403-202002

main69293-33020iZRE17#..E201403-201908

69310LOCK ASSY, FRONT DOOR, RH

main69030-02530iZRE17#..BZ,LA201403-202002

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02290iZRE17#..BZ,LA201403-201809

sub69311-02440

main69311-02440iZRE173..6F201810-202002

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02290iZRE173..VEN201403-201809

sub69312-02440

main69312-02440iZRE173..6F201810-202002

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iZRE172;ZRE173..ATM,CVT201703-202002

main69318-AA010iZRE17#..BZ,LA201403-201708

69320LOCK ASSY, FRONT DOOR, LH

main69040-02510iZRE172;ZRE173..ATM,CVT201403-202002

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-0T010iZRE17#..BZ,LA201403-202002

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02090iZRE17#..BZ,LA201403-202002

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02270iZRE17#..BZ,LA201403-202002

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02270iZRE17#..BZ,LA201403-202002

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02300iZRE17#..BZ,LA201403-202002

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-02300iZRE17#..BZ,LA201403-202002

692370T010RETAINER, DOOR OUTSIDE HANDLE

main69237-0T010

6929602020SCREW, DOOR INSIDE HANDLE

main69296-02020

6929606070SCREW, DOOR INSIDE HANDLE

main69296-06070

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356855016

main93568-55016

34 parts on this diagram · 1 diagram in section
