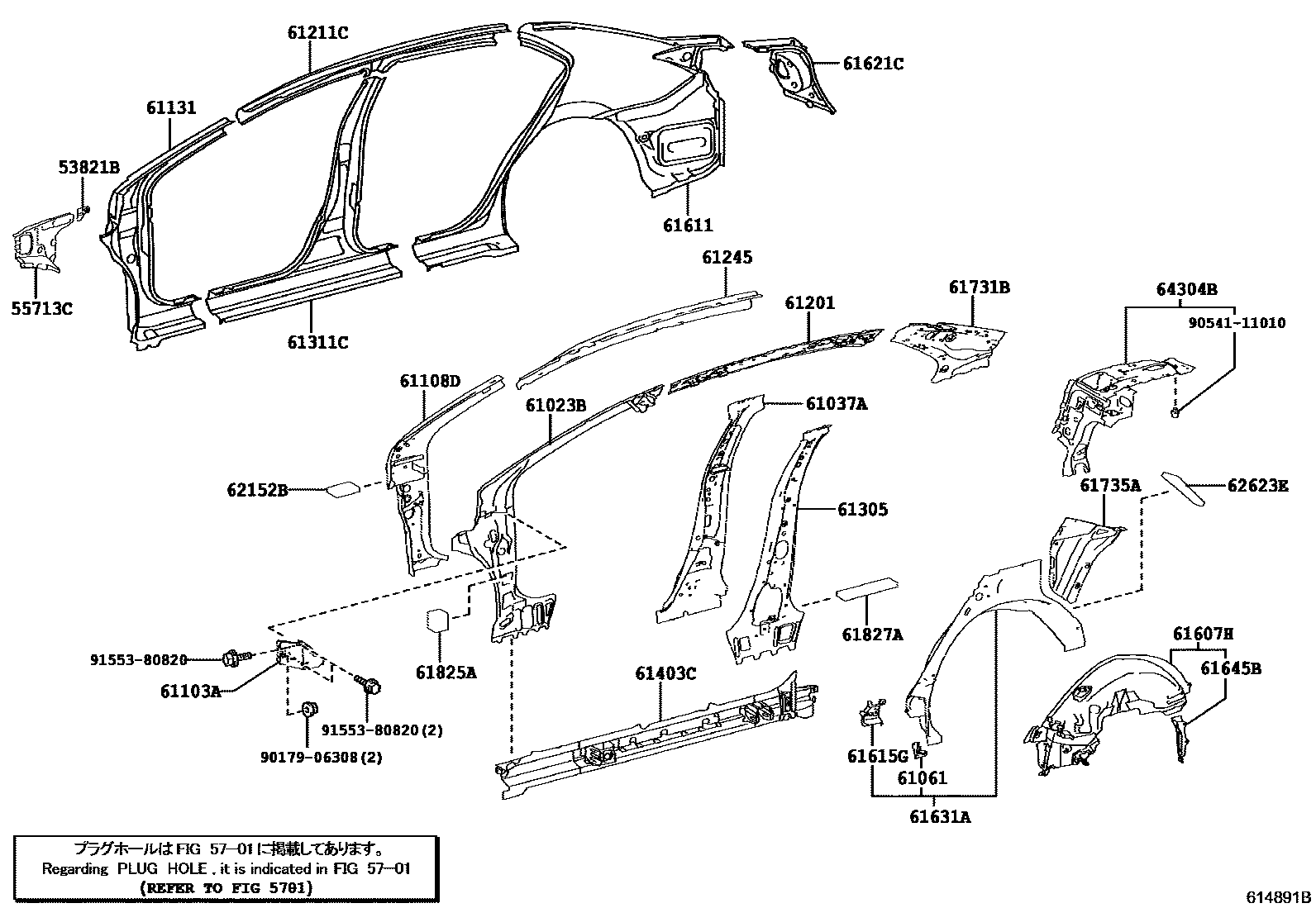

SIDE MEMBER

0001 1RH 0002 1LH 0003 1LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-02070iZRE173..VEN201403-201708

55713CPANEL, COWL TOP SIDE, RH

main55713-02170iZRE17#..BZ,LA201403-201703

5701HOLE PLUG

→ Go to FIG 57-01

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-02310iZRE17#..BZ,LA201403-201703

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-02918iZRE17#..BZ,LA201403-201703

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-02090iZRE17#..BZ,LA201403-201703

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-02151iZRE17#..BZ,LA201403-201703

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-02230iZRE17#..BZ,LA201403-201703

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-02240iZRE172;ZRE173..ATM,CVT201703

main61131-02360iZRE173..N..BZ201703-201908

SPORT PACKAGE

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-02240iZRE173..VEN201403-201708

61211CRAIL, ROOF SIDE, RH

main61211-02160iZRE173..VEN201403-201708

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-02230iZRE17#..BZ,LA201403-201703

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-02160iZRE17#..BZ,LA201403-201703

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02200iZRE172;ZRE173..ATM,CVT201703

main61311-02350iZRE173..N..BZ201703-201908

SPORT PACKAGE

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-02900iZRE17#..BZ,LA201403-201703

61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

main61607-02720iZRE172..N..LA; ZRE173..D;ZRE172..BZ201403-201607

W/O(RADIO RECEIVER)

main61607-02721iZRE172..BZ;ZRE173..4FC..D201703

main61607-02730supersedes 61607-02721iZRE172..BZ; ZRE172..LA;ZRE173..E,N201403-201607

UP GRADE PACKAGE

main61607-02731iZRE173..N..VEN201607-201708

61611PANEL, QUARTER, RH

main61601-02300iZRE173..VEN201403-201708

main61601-02460iZRE173..N..BZ201703-201908

SPORT PACKAGE

61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH

main61615-02130iZRE173..VEN201403-201708

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-02903iZRE173..VEN201403-201708

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-02150iZRE173..6F201703-202002

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12150iZRE17#..BZ,LA201403-201703

61731BPANEL, ROOF SIDE, INNER RH

main61731-02300iZRE17#..BZ,LA201403-201703

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-02200iZRE17#..BZ,LA201403-201703

61825APLATE, NOISE CONTROL, NO.2

main61825-02110×2iZRE17#..BZ,LA201403-201703

61827APLATE, NOISE CONTROL, NO.4

main61827-02100×2iZRE17#..BZ,LA201403-201703

62152BPAD, COWL SIDE SILENCER, NO.2

main62152-12050×2iZRE17#..BZ,LA201403-201703

62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-02120iZRE172;ZRE173..ATM,CVT201703

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-02210iZRE173..6F..D201703-202002

main64304-02220supersedes 64304-02210iZRE172..LA;ZRE173..(ATM,CVT)..(E,N)201703

9017906308

main90179-06308

9054111010

main90541-11010

9155380820

main91553-80820

31 parts on this diagram · 3 diagrams in section
