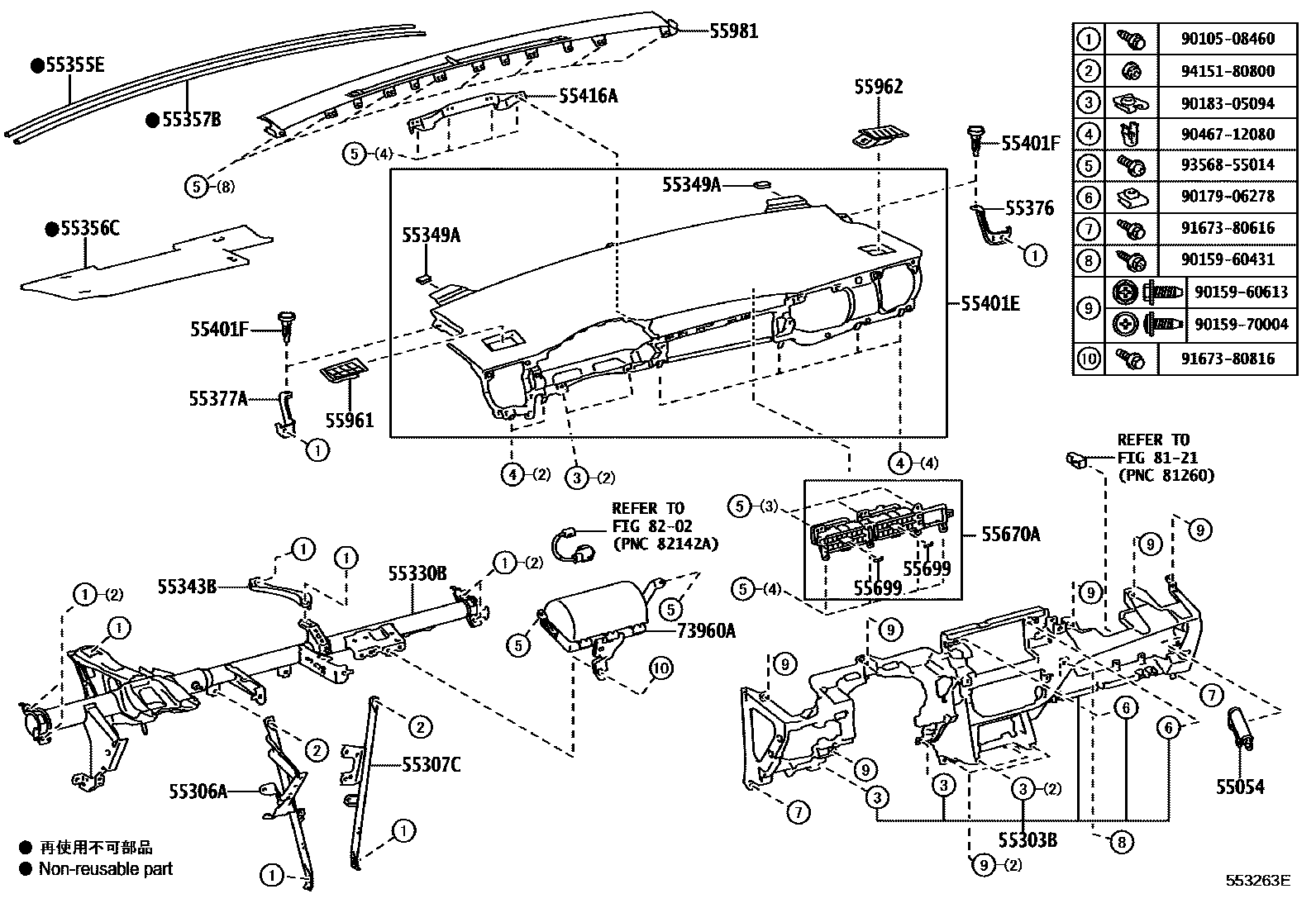

INSTRUMENT PANEL & GLOVE COMPARTMENT
55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM0#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#
BLACK,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55349ACUSHION, INSTRUMENT PANEL
55355ECUSHION, INSTRUMENT PANEL
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM1#
55401FCLIP(FOR SAFETY PAD)
sub52161-0K040
55416ARETAINER, METER HOOD, NO.1
55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER
UP GRADE PACKAGE
EU BLACK
UP GRADE PACKAGE
UP GRADE PACKAGE
55699KNOB, INSTRUMENT PANEL REGISTER CONTROL
UP GRADE PACKAGE
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM1#,2#
BLACK,TRIM0#
BLACK,TRIM2#
BLACK,TRIM1#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM1#
BLACK,TRIM1#,2#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#
W/O(RADIO RECEIVER),BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
8121
8202
9010508460
main90105-08460
9015960431
main90159-60431
9015960613
main90159-60613
9015970004
main90159-70004
9017906278
main90179-06278
9018305094
main90183-05094
9046712080
main90467-12080
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180800
main94151-80800
34 parts on this diagram · 7 diagrams in section
