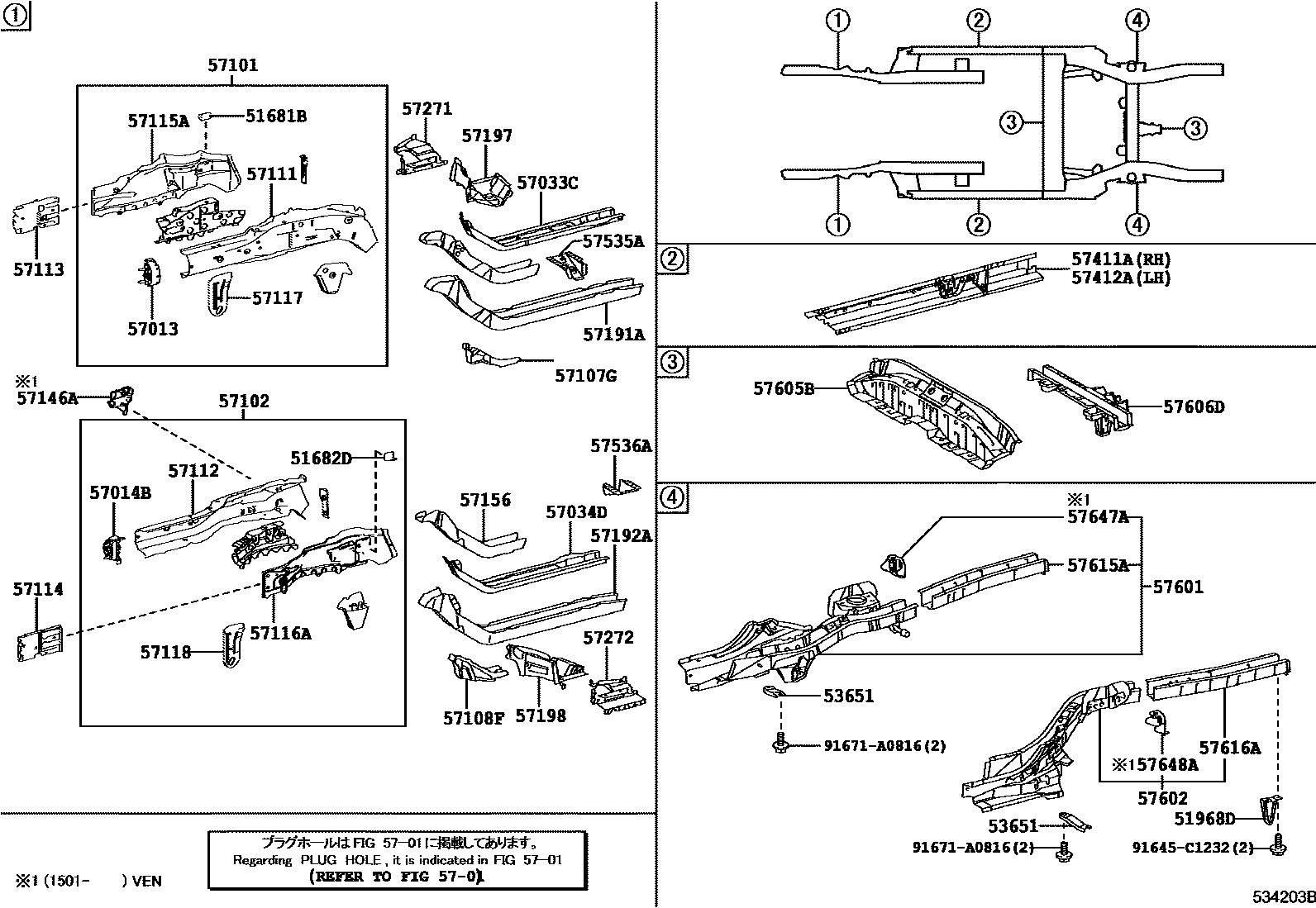

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-02090i201403-201708

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-02080i201403-201703

51968DHOOK, TRANSPORT, REAR LH

main51968-12170i201403-201703

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-02090×2i201403-201703

5701HOLE PLUG

→ Go to FIG 57-01

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02130i201403-201703

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02120i201403-201703

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-13010i201403-201703

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02120i201403-201703

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02922i201403-201503

main57101-02925i201503-201703

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-02937i201403-201503

main57102-02941i201503-201703

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-02070i201403-201703

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-02070i201403-201703

57111MEMBER, FRONT SIDE, RH

main57111-02180i201403-201503

main57111-02181i201503-201703

57112MEMBER, FRONT SIDE, LH

main57112-02150i201403-201503

main57112-02151i201503-201703

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02130i201403-201703

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02150i201403-201703

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12080i201403-201703

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12080i201403-201703

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-02050i201403-201703

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-02030i201403-201708

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-02090i201501-201708

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-02050i201403-201703

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-13010i201403-201703

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-13010i201403-201703

57197BOX, TORQUE, FRONT RH

main57197-02110i201403-201703

57198BOX, TORQUE, FRONT LH

main57198-02110i201403-201703

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-02140i201403-201703

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-02110i201403-201703

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02290i201403-201703

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02290i201403-201703

57535ABRACE, FRONT FLOOR, RH

main57535-02050i201403-201703

57536ABRACE, FRONT FLOOR, LH

main57536-02050i201403-201708

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02460i201403-201703

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02540i201403-201703

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02260i201403-201703

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-02290i201403-201708

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12905i201403-201703

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-02917i201703-201908

main57616-12909i201708-202002

57647AREINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH

main57647-02040i201501-201708

57648AREINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH

main57648-02040i201501-201708

91645C1232

main91645-C1232

91671A0816

main91671-A0816
