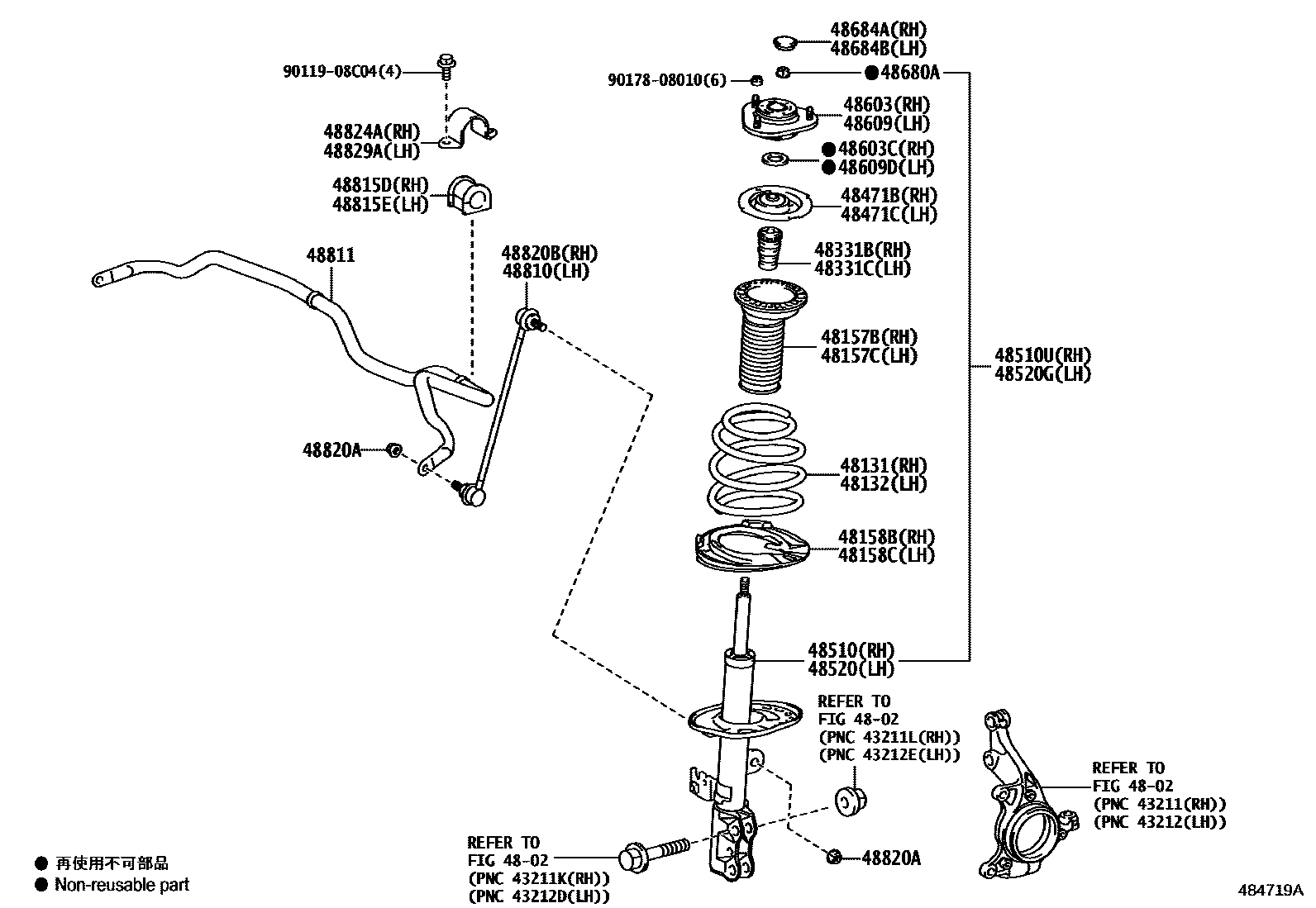

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-02K20
MARK 48510-02J30
48510UABSORBER SET, SHOCK, FRONT RH
MARK 48510-02D20
MARK 48510-02D30
MARK 48510-02K11
MARK 48510-02J21
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-02K20
MARK 48520-02J30
48520GABSORBER SET, SHOCK, FRONT LH
MARK 48520-02D20
MARK 48520-02D30
MARK 48520-02K11
MARK 48520-02J21
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
(L)
(J)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
9011908C04
main90119-08C04
9017808010
main90178-08010
32 parts on this diagram · 1 diagram in section
