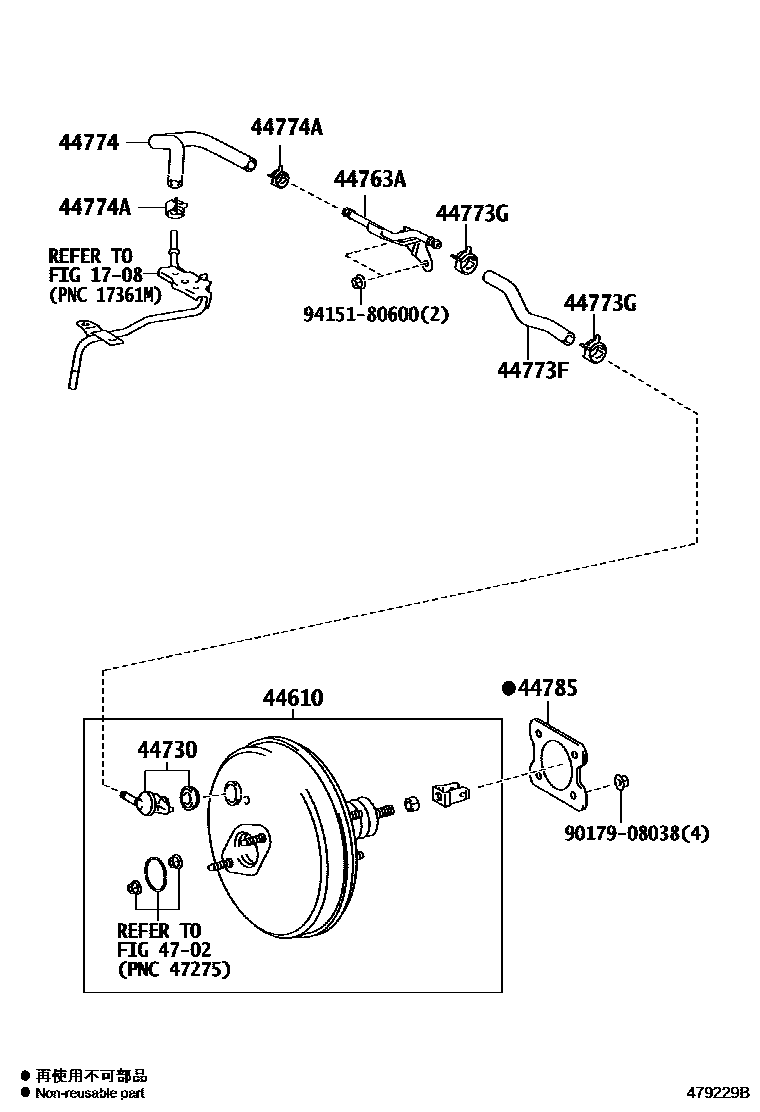

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

44610BOOSTER ASSY, BRAKE

main44610-09B20iZRE173..6F201403-201708

main44610-09B30iZRE173..4FC201501-201708

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09060×2iZRE173..4FC201708

44763ATUBE, HOSE TO HOSE, NO.1

main44763-02160iZRE17#..CVT,MTM201703-202002

main44763-12540iZRE173..4FC201501-201708

44773FHOSE, UNION TO CHECK VALVE

main44773-02200iZRE17#..BZ,LA201403-201703

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500×2iZRE173..6F201403-201708

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02200iZRE17#..BZ,LA201403-201703

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iZRE17#..BZ,LA201403-201703

44785GASKET, BRAKE BOOSTER

main44785-12040iZRE17#..BZ,LA201403-201703

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

9415180600

main94151-80600

12 parts on this diagram · 2 diagrams in section
