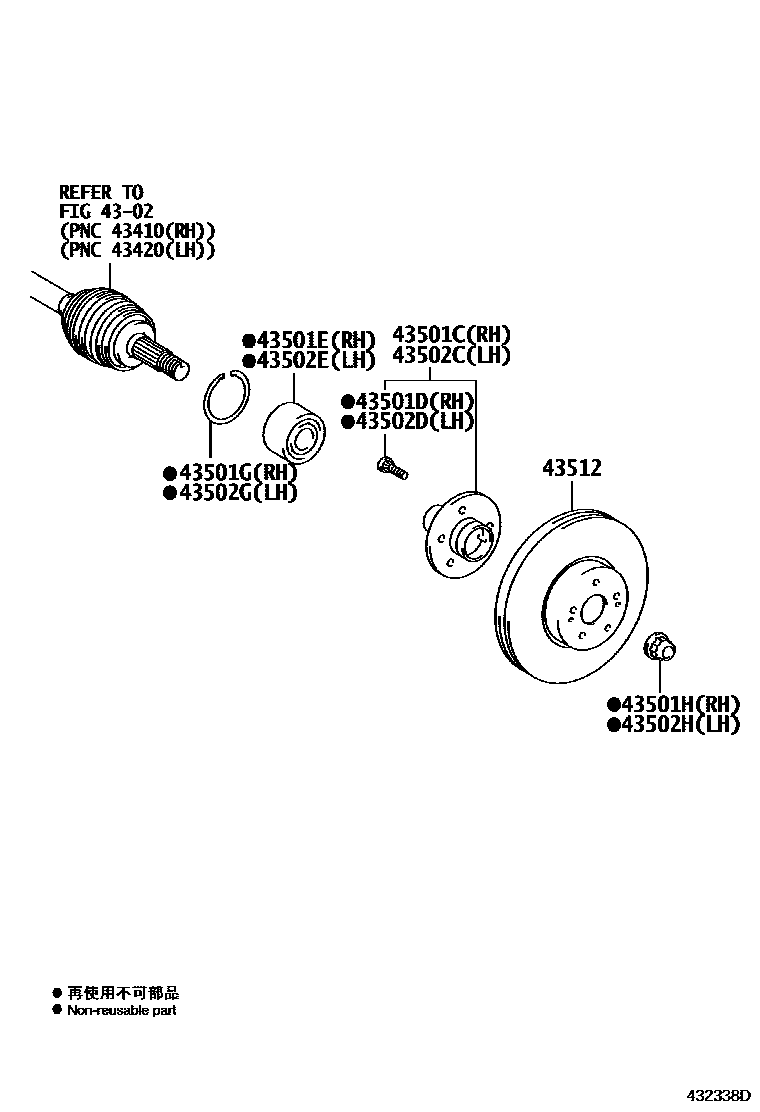

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-02100iZRE17#201403-201908

sub43502-32080

main43502-32080iZRE173..6F201909-202002

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02082iZRE173..6F201403-202002

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36149iZRE17#..BZ,LA201403-202002

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iZRE17#..BZ,LA201403-202002

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZRE173..6F201510-202002

(J)

main90177-22001iZRE17#201403-201510

main90177-T0017iZRE172;ZRE173..ATM,CVT201510-202002

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-02100iZRE17#201403-201908

sub43502-32080

main43502-32080iZRE173..6F201909-202002

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02082iZRE173..VEN201403-202002

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36149iZRE17#..BZ,LA201403-202002

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iZRE172;ZRE173..ATM,CVT201403-202002

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZRE173..6F201510-202002

(J)

main90177-22001iZRE17#201403-201510

main90177-T0017iZRE173..6F201510-202002

(L)

43512DISC, FRONT

main43512-02350iZRE17#201403-202002

12 parts on this diagram · 1 diagram in section
