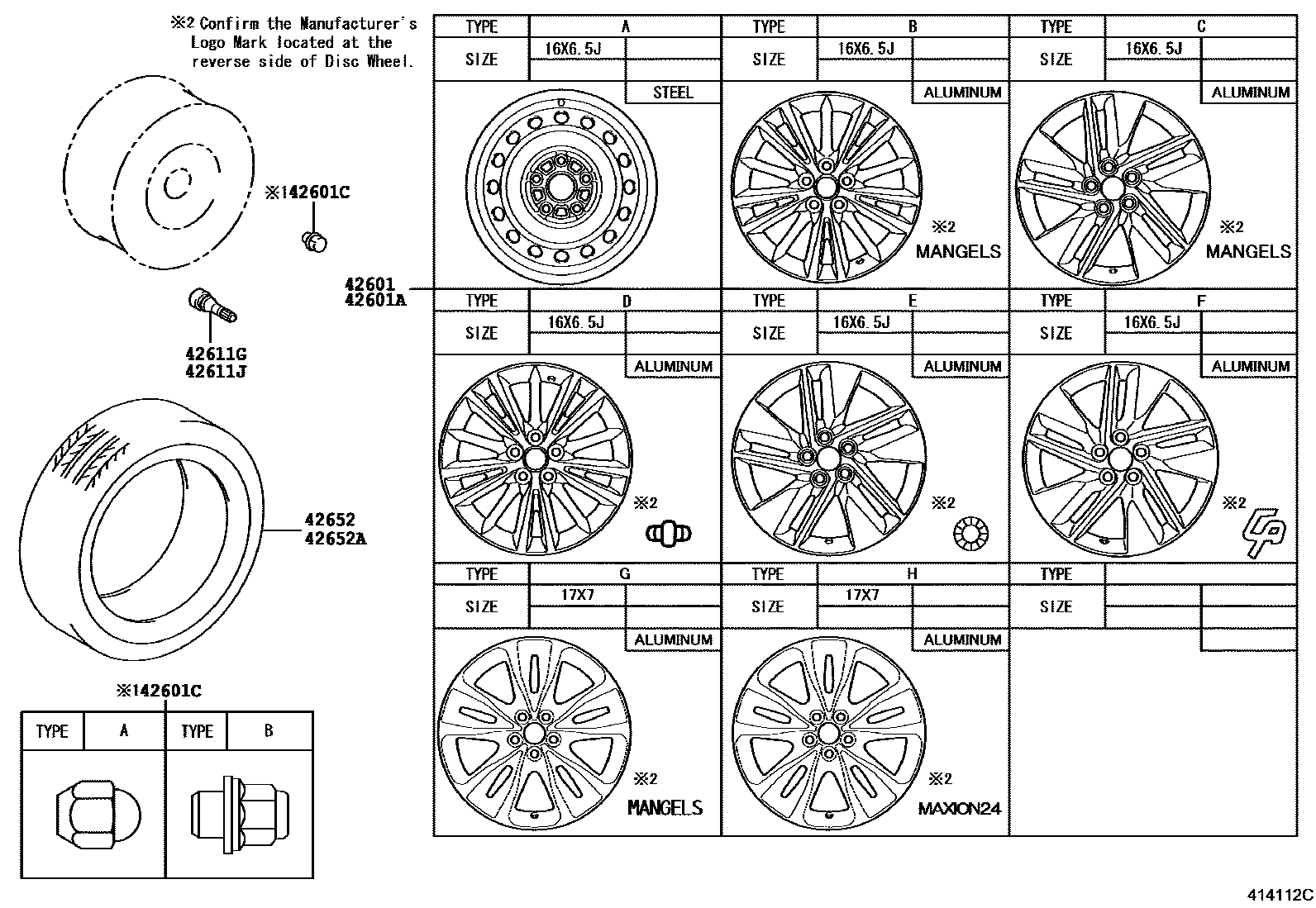

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5J,#,TYPE B:REFER ILLUST.
16X6.5J,#,TYPE C:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
16X6.5J,#,TYPE F:REFER ILLUST.
17X7J,#,TYPE G:REFER ILLUST.
17X7J,#,SPORT PACKAGE,TYPE H:REFER ILLUST.; 17X7J,#,TYPE H:REFER ILLUST.
17X7J,#,SPORT PACKAGE,TYPE G:REFER ILLUST.; 17X7J,#,TYPE G:REFER ILLUST.
16X6.5J,#,W/O(RADIO RECEIVER),TYPE A:REFER ILLUST.
16X6.5J,#,TYPE B:REFER ILLUST.; 16X6.5J,#,UP GRADE PACKAGE,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J,#,TYPE A:REFER ILLUST.
16X6.5J,#,TYPE C:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
16X6.5J,#,TYPE F:REFER ILLUST.
16X6.5J,#,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
W/O(RADIO RECEIVER)&TIRE & DISC WHEEL-205/55R16 6.5J STEEL,TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
(L)
42611JVALVE (FOR TUBELESS TIRE SPARE)
(L)
42652TIRE
205/55R16 *B/S
205/55R16,*B/S
205/55R16,*B/S
205/55R16,PIRELLI
205/55R16,PIRELLI
215/50R17,MICHELIN
215/50R17,PIRELLI
42652ATIRE (FOR SPARE)
205/55R16 *B/S
205/55R16,*B/S
205/55R16,*B/S
205/55R16,PIRELLI
205/55R16,PIRELLI
7 parts on this diagram · 3 diagrams in section
