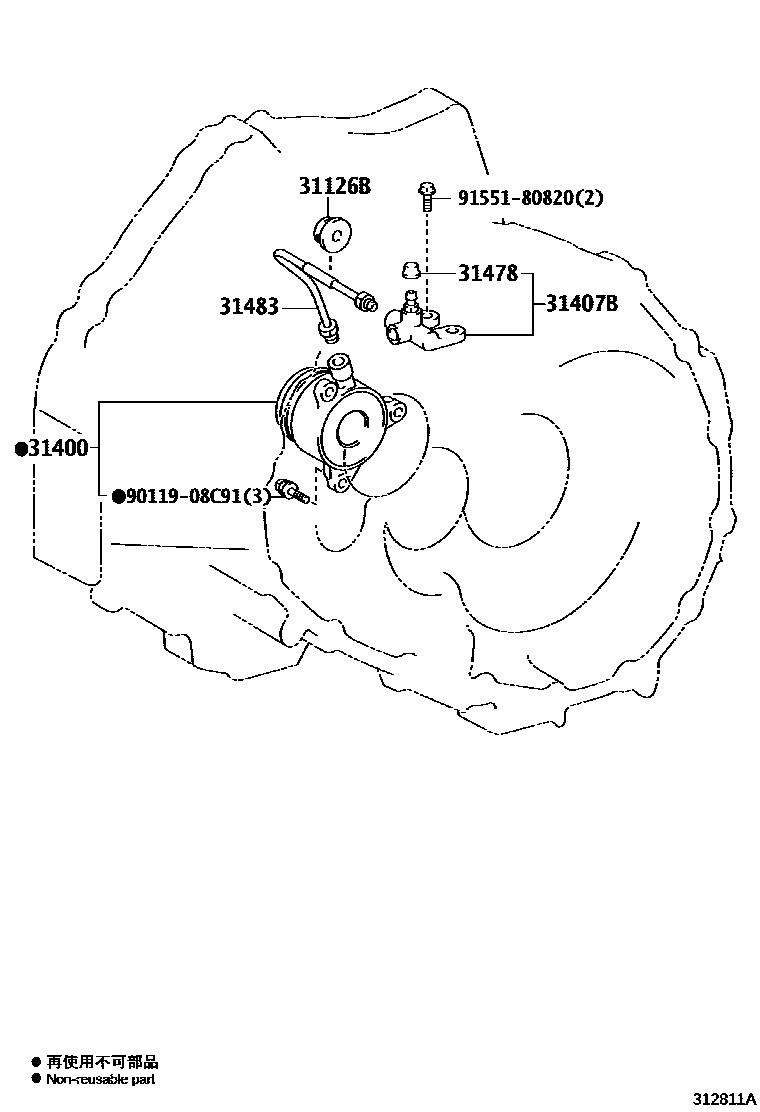

CLUTCH RELEASE CYLINDER

0001 1EC60 0002 1EB60

31126BBOOT, CLUTCH TUBE

main31126-0D070iZRE172..6F201604-201908

main31126-20090iZRE173..6F201403-202002

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-09020iZRE172..6F201703-201908

main31400-39006iZRE173..6F201501-202002

main31400-59015iZRE172..6F201403-201511

main31400-59025iZRE172..6F201512-201604

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-20011iZRE173..6F201501-202002

main31407-52010iZRE172..6F201403-201908

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iZRE172..6F201403-202002

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-0D300iZRE172..6F201604-201908

main31482-20610iZRE173..6F201501-202002

main31482-52090iZRE172..6F201403-201604

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 2 diagrams in section
