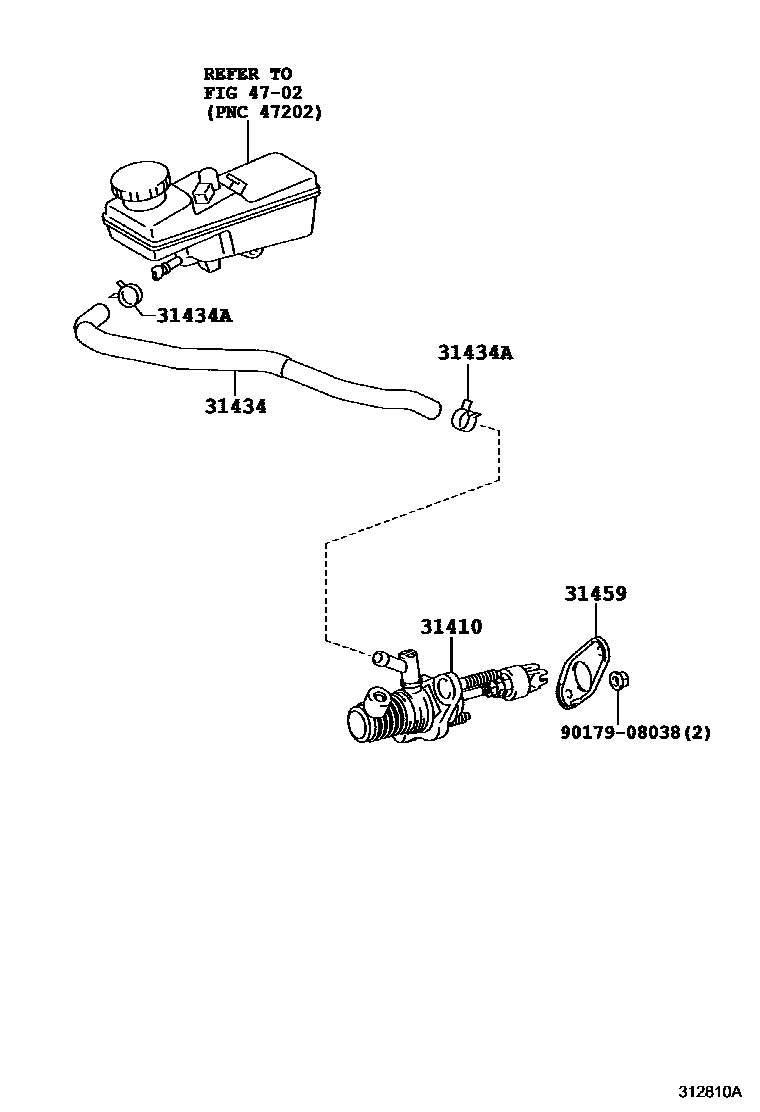

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12030iZRE172..6F201403-201703

31434TUBE, CLUTCH RESERVOIR

main31434-02050iZRE172..6F201403-201703

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iZRE172..6F201403-201703

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iZRE172..6F201403-201703

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

6 parts on this diagram · 1 diagram in section
