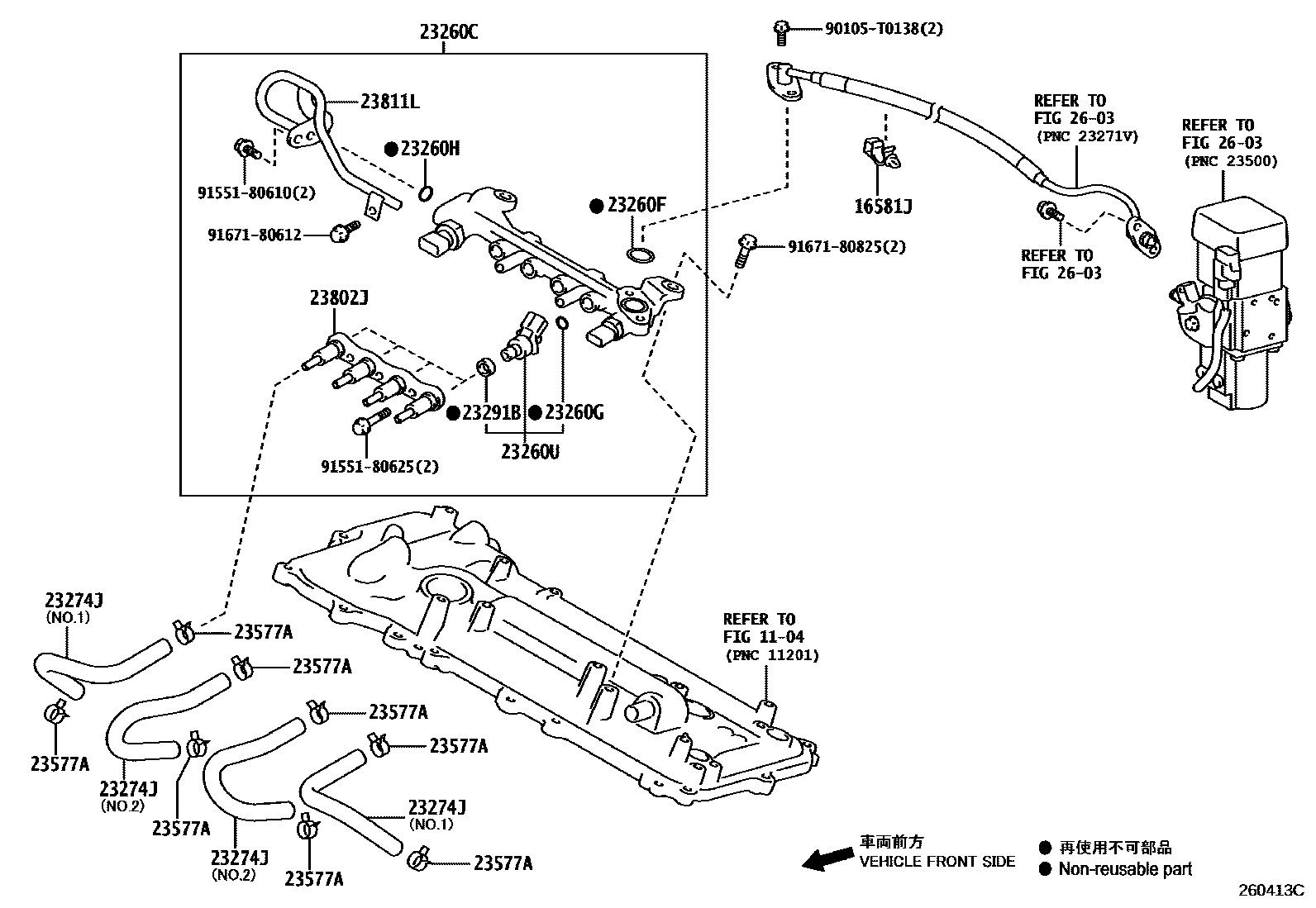

LPG OR CNG INJECTION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

16581JCLAMP, HOSE, NO.1

main90469-22002i3ZRFE..ZRE173201501-201708

23260CINJECTOR ASSY, LPG OR CNG

main23880-37011i3ZRFE..ZRE173201501-201708

23260FRING, O(FOR LPG OR CNG INJECTOR NO.1)

main90301-19024i3ZRFE..ZRE173201501-201708

23260GRING, O(FOR LPG OR CNG INJECTOR NO.2)

main90301-06017×16i3ZRFE..ZRE173201501-201708

23260HRING, O(FOR LPG OR CNG INJECTOR NO.3)

main90079-60041i3ZRFE..ZRE173201501-201708

23260UINJECTOR ASSY, CNG

main23260-39085×4i3ZRFE..ZRE173201501-201708

23274JHOSE, FUEL, NO.3

main23271-37070×2i3ZRFE..ZRE173201501-201708

NO.1

main23271-37080×2i3ZRFE..ZRE173201501-201708

NO.2

23291BINSULATOR, INJECTOR VIBRATION

main23291-37020×4i3ZRFE..ZRE173201501-201708

23577ACLAMP

main96132-51100×8i3ZRFE..ZRE173..6F201708-202002

23802JPIPE SUB-ASSY, FUEL, NO.2

main23802-37021i3ZRFE..ZRE173201501-201708

23811LPIPE, FUEL, NO.1

main23811-37020i3ZRFE..ZRE173201501-201708

2603LPG OR CNG REGULATOR

→ Go to FIG 26-03

90105T0138

main90105-T0138

9155180610

main91551-80610

9155180625

main91551-80625

9167180612

main91671-80612

9167180825

main91671-80825

18 parts on this diagram · 1 diagram in section
