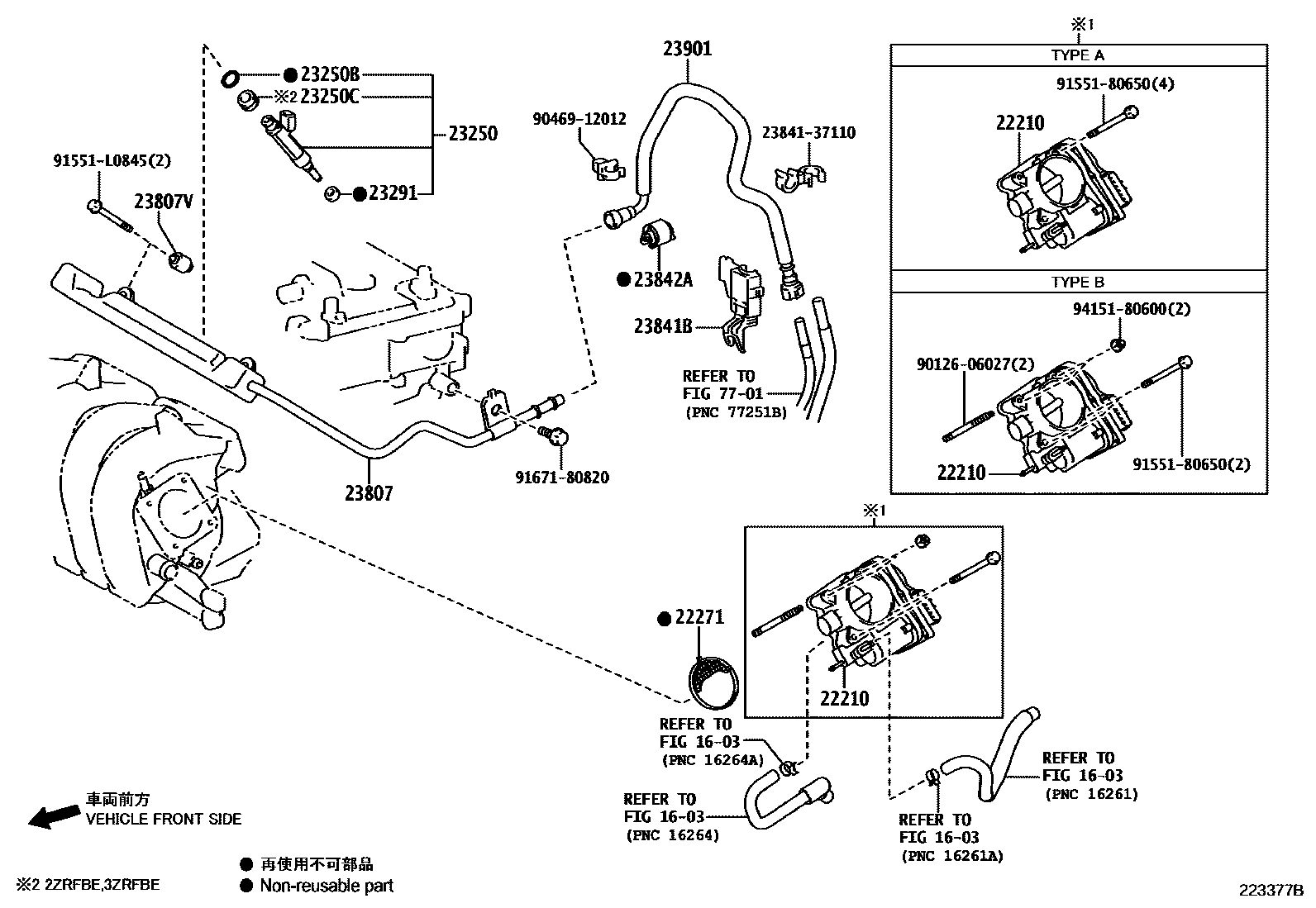

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22030-0T120i3ZRFE..ZRE173..6F201708-202002

(L)

main22030-37050i3ZRFE..ZRE173201501-201708

(J)

22271GASKET, THROTTLE BODY

main22271-0T060i3ZRFE..ZRE173..6F201811-202002

(L)

main22271-22090i2ZRFBE,3ZRFBE..ZRE17#201403-201703

main22271-75031i3ZRFE..ZRE173201703-201811

23250INJECTOR ASSY, FUEL

main23209-09200×4i3ZRFE..ZRE173..4FC201708

(L)

main23209-09260×4i2ZRFBE,3ZRFBE..ZRE17#201403-201703

main23209-39146×4i2ZRFE..ZRE172201403-201703

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i3ZRFE..ZRE173201403-201503

main90301-A0039×4i2ZRFBE,3ZRFBE..ZRE17#201703-201908

main90301-T0051×4i3ZRFE..ZRE173..4FC201708

(L)

23250CGROMMET(FOR FUEL INJECTOR)

main90480-A0005×4i2ZRFBE,3ZRFBE..ZRE17#201403-201703

23291INSULATOR, INJECTOR VIBRATION

main23291-0T010×4i3ZRFE..ZRE173201501-201708

(L)

main23291-28020×4i2ZRFE..ZRE172201403-201703

main23291-37010×4i2ZRFBE,3ZRFBE..ZRE17#201403-201703

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i2ZRFE..ZRE172201403-201703

main23814-37080i2ZRFBE,3ZRFBE..ZRE17#201403-201703

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i3ZRFE..ZRE173..4FC;2ZR#,3ZRFBE..ZRE17#201703

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T040i2ZR#,3ZR#..ZRE17#201403-201605

main23841-0T041i2ZR#,3ZR#..ZRE17#201606-201607

main23841-0T042i2ZR#,3ZRFBE..ZRE17#201607-201703

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ZR#,3ZRFBE..ZRE17#201403-201703

23901TUBE SUB-ASSY, FUEL

main23901-0T170i2ZR#,3ZRFBE..ZRE17#201403-201703

main23901-37240i3ZRFE..ZRE173201501-201708

7701FUEL TANK & TUBE

→ Go to FIG 77-01

2384137110CLAMP, FUEL PIPE(HOSE), NO.1

main23841-37110

9012606027

main90126-06027

9046912012

main90469-12012

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

20 parts on this diagram · 2 diagrams in section
