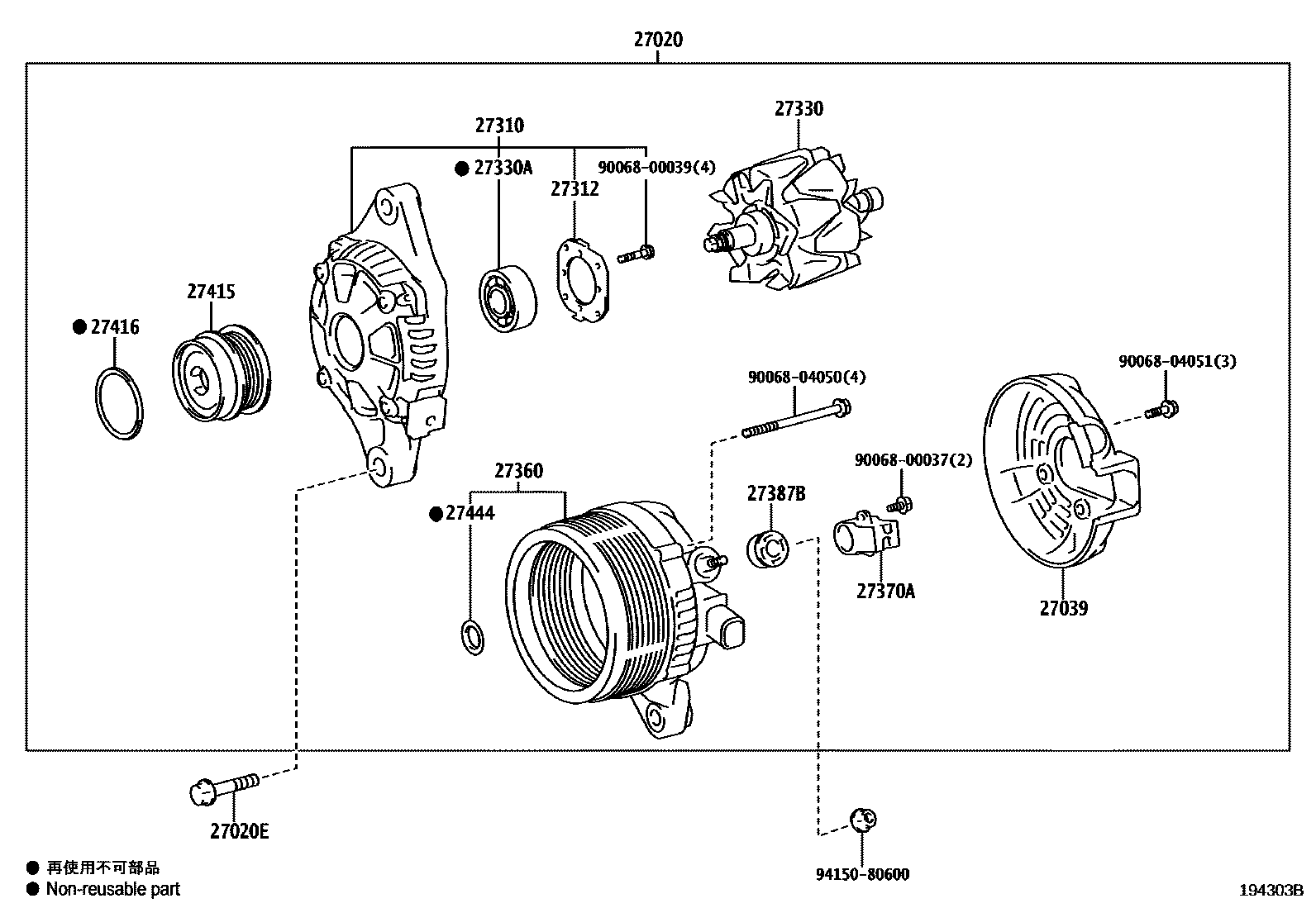

ALTERNATOR

27020ALTERNATOR ASSY

main27060-0T320i2ZR#,3ZRFBE..ZRE17#201403-201703

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i2ZR#,3ZRFBE..ZRE17#201403-201703

27039COVER, ALTERNATOR REAR END

main27039-0T300i2ZR#,3ZRFBE..ZRE17#201403-201703

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0T460i2ZR#,3ZR#..ZRE17#201403-201708

27312PLATE, RETAINER

main27312-0T300i2ZR#,3ZR#..ZRE17#201403-201708

27330ROTOR ASSY, ALTERNATOR

main27330-0T300i2ZR#,3ZRFBE..ZRE17#201403-201703

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10051i2ZR#,3ZR#..ZRE17#201604-201708

27360COIL ASSY, ALTERNATOR

main27360-0T300i2ZR#,3ZRFBE..ZRE17#201403-201703

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0T300i2ZR#,3ZRFBE..ZRE17#201403-201703

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0T300i2ZR#,3ZRFBE..ZRE17#201403-201703

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T060i2ZR#,3ZR#..ZRE17#201403-201603

main27415-0T080i2ZR#,3ZR#..ZRE17#201604-201708

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ZR#,3ZR#..ZRE17#201403-201708

27444PACKING, ALTERNATOR BEARING COVER

main27444-0T300i2ZR#,3ZRFBE..ZRE17#201403-201703

9006800037

main90068-00037

9006800039

main90068-00039

9006804050

main90068-04050

9006804051

main90068-04051

9415080600

main94150-80600

18 parts on this diagram · 1 diagram in section
