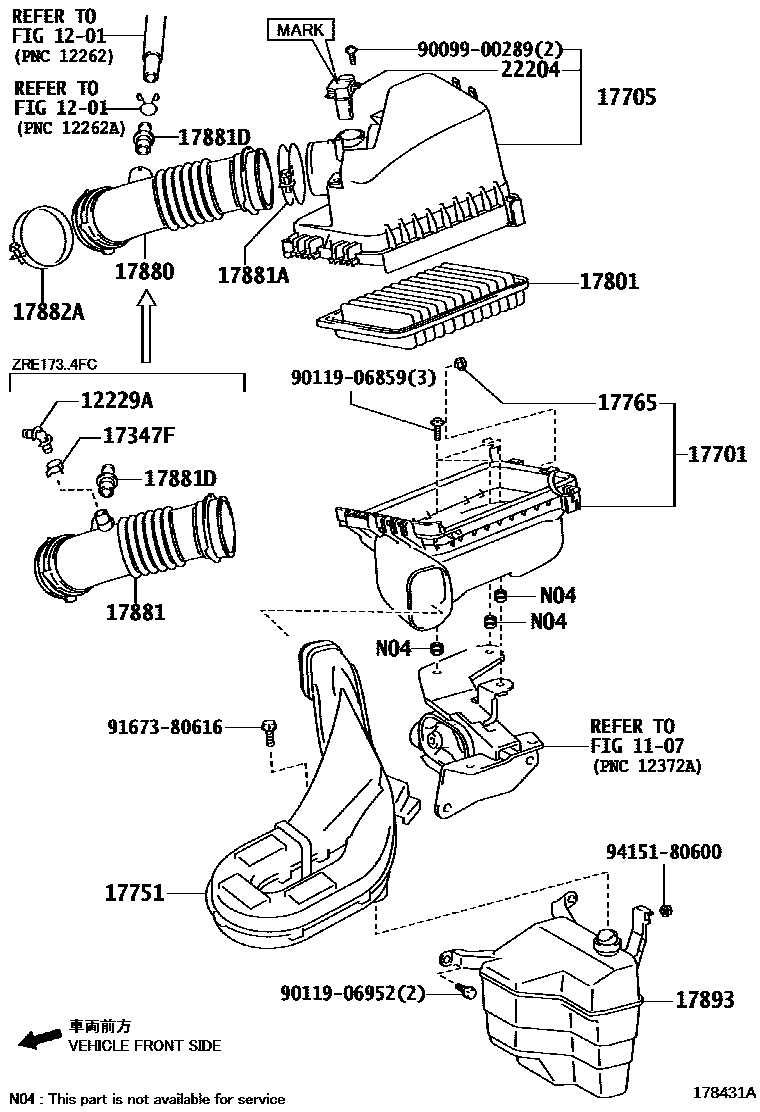

AIR CLEANER

1107

1201

12229APIPE, VENTILATION

main12229-36010i3ZRFE..ZRE173..4FC201501-201708

17347FCLAMP OR CLIP(FOR AIR HOSE)

main96136-41901i3ZRFE..ZRE173..4FC201501-201708

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T120i2ZR#,3ZRFBE..ZRE17#201403-202002

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T151i2ZR#,3ZRFBE..ZRE17#201403-202002

17751INLET, AIR CLEANER, NO.1

main17751-0T170i2ZR#,3ZRFBE..ZRE17#201403-202002

17765STAY, AIR CLEANER, NO.1

main17706-21010i2ZR#,3ZRFBE..ZRE17#201403-202002

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i3ZRFE..ZRE173201403-202002

17880HOSE ASSY, AIR CLEANER

main17880-0T270i2ZRFBE..ZRE172201403-201908

main17880-0T320i2ZRFE..ZRE172201403-201908

main17880-0T330i3ZRFBE..ZRE173201403-201908

main17880-37090i3ZRFE..ZRE173..6F201501-202002

17881HOSE, AIR CLEANER, NO.1

main17881-37310i3ZRFE..ZRE173..4FC201501-201708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i3ZRFE..ZRE173201403-202002

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main12229-21010i2ZR#,3ZRFBE..ZRE17#201403-201908

main12229-21010i3ZRFE..ZRE173..4FC201708

NO.1:REFER ILLUST.

main12229-36010i3ZRFE..ZRE173..4FC201708

NO.2:REFER ILLUST.

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10780i2ZR#,3ZRFBE..ZRE17#201403-202002

17893RESONATOR, INTAKE AIR

main17893-0T100i3ZRFE..ZRE173201403-202002

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i2ZR#,3ZRFBE..ZRE17#201403-202002

MARK 22204-0V010

sub22204-0V020

main22204-0V020i3ZRFE..ZRE173..4FC;2ZR#,3ZRFBE..ZRE17#201403-202002

MARK 22204-0V020

main22204-28010i3ZRFE..ZRE173..4FC;2ZR#,3ZRFBE..ZRE17#201403-202002

MARK 22204-28010

9009900289

main90099-00289

9011906859

main90119-06859

9011906952

main90119-06952

9167380616

main91673-80616

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
