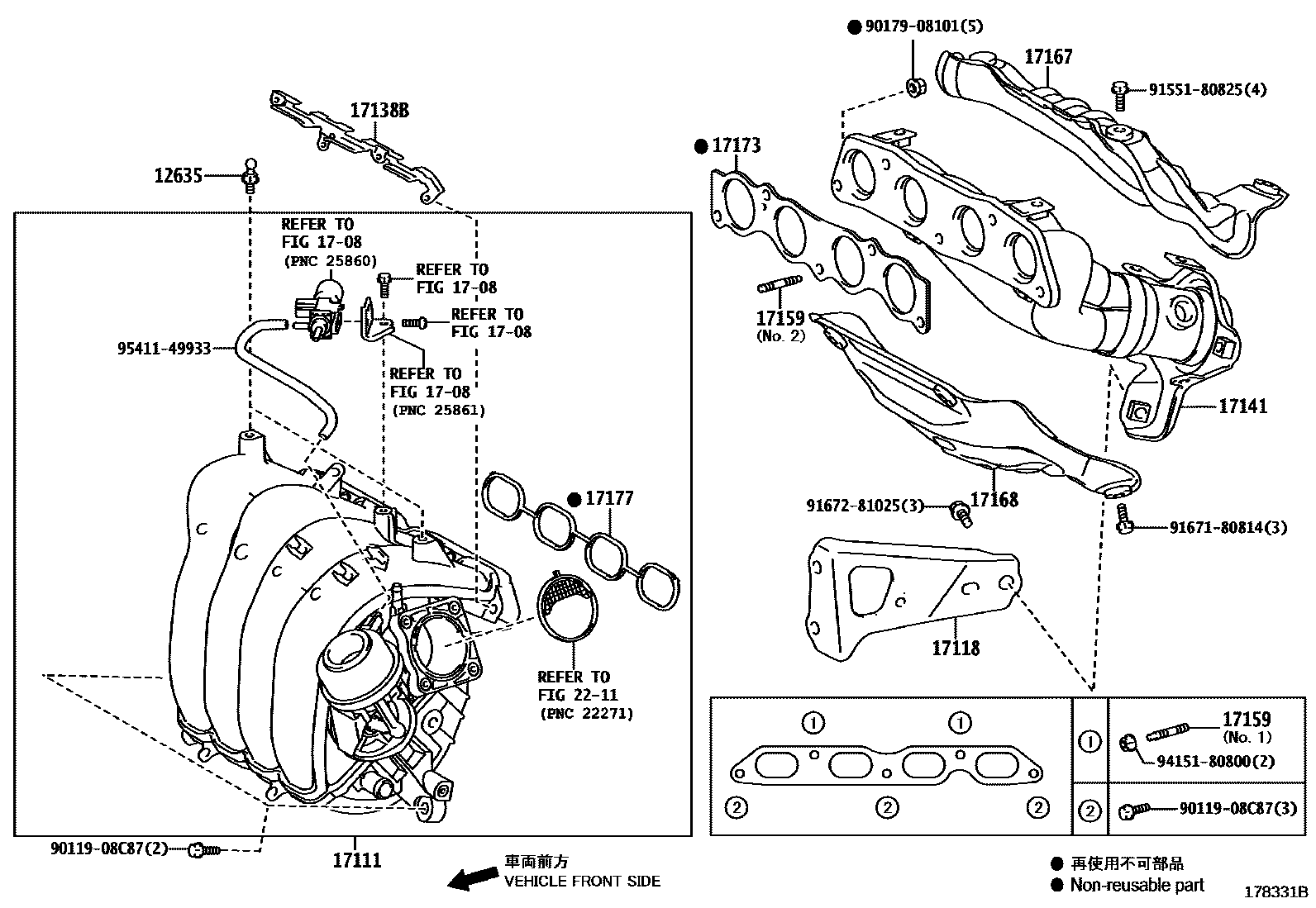

MANIFOLD
12635JOINT, ENGINE COVER
1708VACUUM PIPING
17111MANIFOLD, INTAKE
(L)
(J)
17118STAY, MANIFOLD
17138BSTAY, INTAKE MANIFOLD
(L)
(L)
(J)
17141MANIFOLD, EXHAUST
(L)
(L)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
(L),NO.1
(L),NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(L)
(L)
(L)
(J)
(J)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(L)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211FUEL INJECTION SYSTEM
9011908C87
main90119-08C87
9017908101
main90179-08101
9155180825
main91551-80825
9167180814
main91671-80814
9167281025
main91672-81025
9415180800
main94151-80800
9541149933
main95411-49933
19 parts on this diagram · 3 diagrams in section
