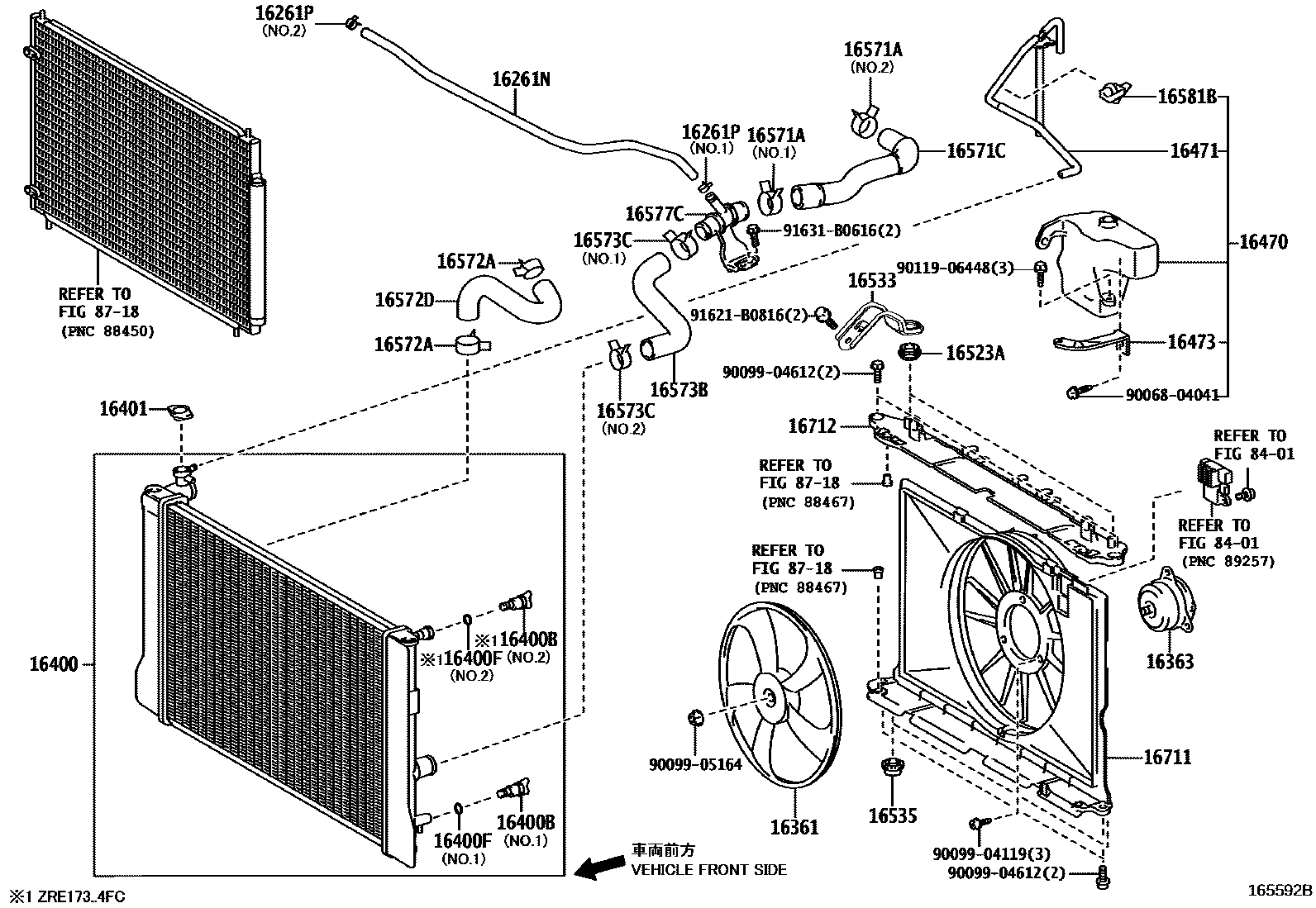

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
(L)
(L)
(L)
(J)
(J)
16261NHOSE, WATER BY-PASS, NO.2
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
NO.2
NO.1
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
MADE IN THAILAND
MADE IN BRAZIL
MADE IN BRAZIL
MADE IN VENEZUELA
MADE IN VENEZUELA
16400BPLUG, RADIATOR DRAIN COCK
NO.1
NO.2
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.2
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16523ACUSHION, RADIATOR SUPPORT
(L)
(J)
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
NO.2
NO.1
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1
16577CPIPE, RADIATOR
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
8401SWITCH & RELAY & COMPUTER
8718HEATING & AIR CONDITIONING - COOLER PIPING
9006804041
main90068-04041
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9011906448
main90119-06448
91621B0816
main91621-B0816
91631B0616
main91631-B0616
35 parts on this diagram · 6 diagrams in section
