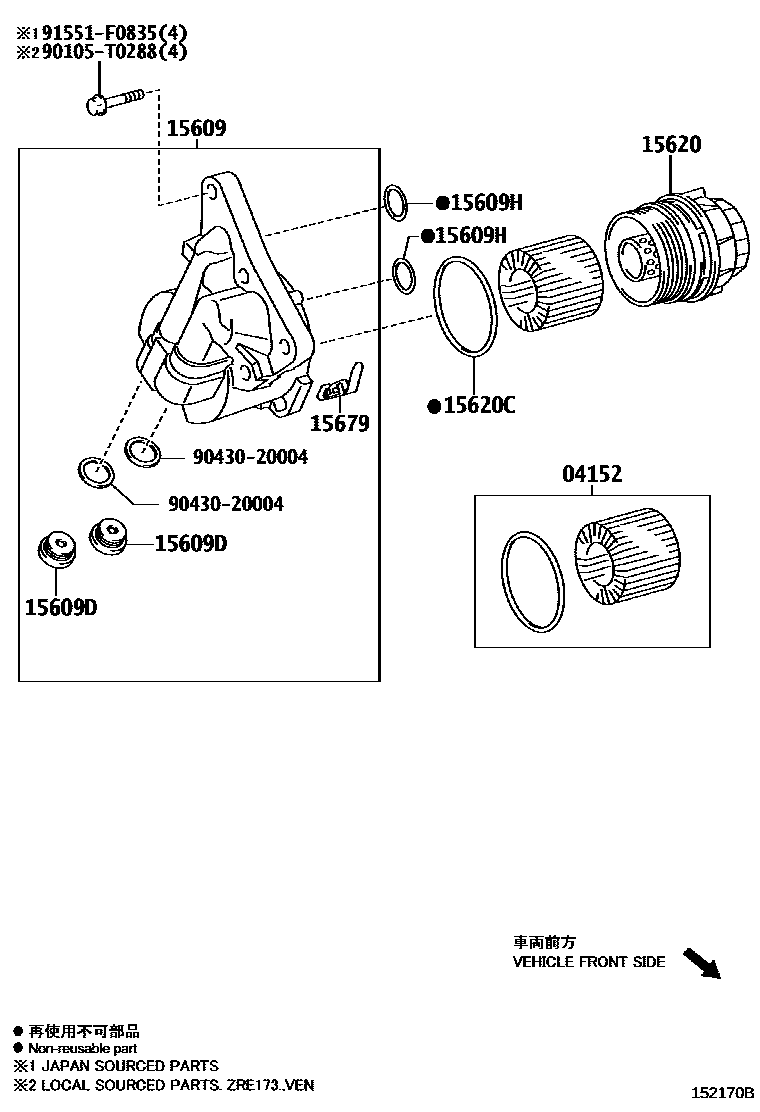

OIL FILTER

0001 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-37010i2ZR#,3ZRFBE..ZRE17#201703-201908

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0T040i3ZRFE..ZRE173201512-201708

main15609-37041i3ZRFE..ZRE173201403-201512

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i2ZR#,3ZRFBE..ZRE17#201703-201908

main90341-T0007×2i3ZRFE..ZRE173..6F201708-202002

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-T0041×2i3ZRFE..ZRE173..6F201708-202002

(L)

main96723-24020×2i3ZRFE..ZRE173..4FC201708

(J)

15620CAP ASSY, OIL FILTER

main15620-37010i3ZRFE..ZRE173201403-201512

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i3ZRFE..ZRE173201403-201512

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ZR#,3ZRFBE..ZRE17#201403-201408

main15679-37011i3ZRFE..ZRE173201409-201512

90105T0288

main90105-T0288

9043020004

main90430-20004

91551F0835

main91551-F0835

10 parts on this diagram · 2 diagrams in section
