ENGINE OVERHAUL GASKET KIT

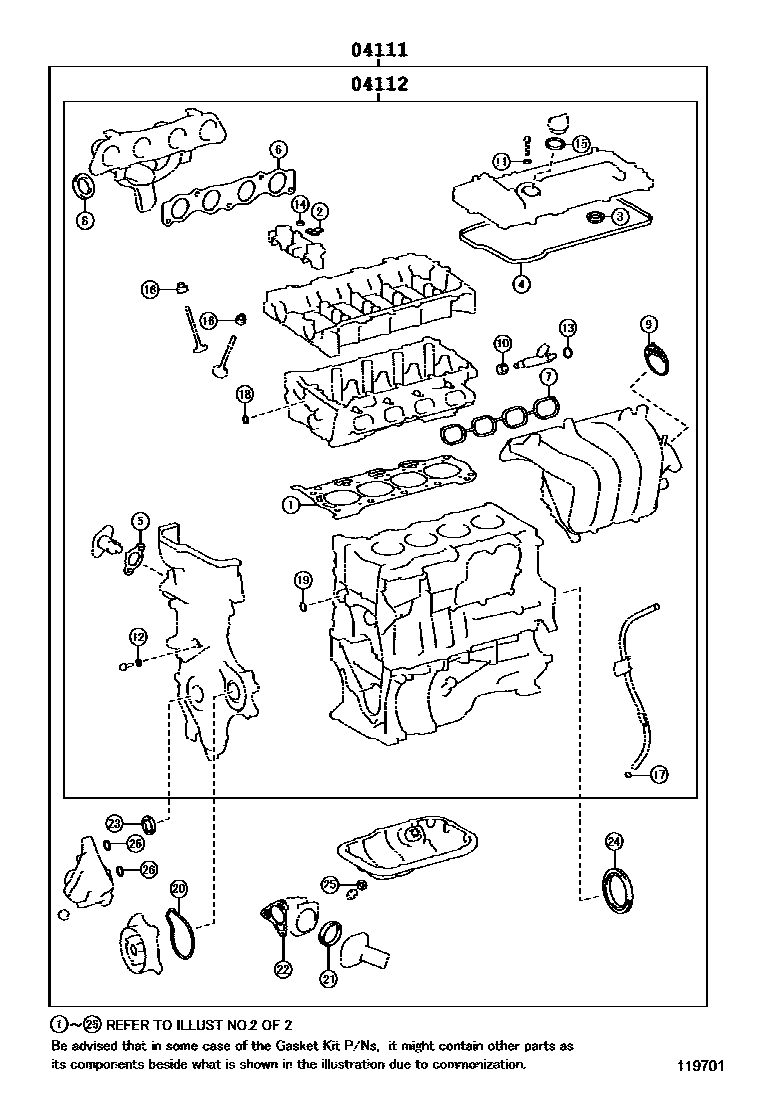

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T220i201501-201502

main04111-0T221i201502-201606

main04111-0T232i201607-201708

main04111-37392i201403-201502

main04111-37393i201502-201607

main04111-37394i201703-201908

main04111-37440i201403-201502

main04111-37441i201502-201607

main04111-37442i201607-201703

main04111-37450i201403-201502

main04111-37451i201502-201607

main04111-37452i201607-201703

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T200i201501-201502

main04112-0T201i201502-201606

main04112-0T211i201708

main04112-37332i201403-201502

main04112-37333i201502-201607

main04112-37334i201703-201908

main04112-37350i201403-201502

main04112-37351i201502-201607

main04112-37352i201703-201908

2 parts on this diagram · 4 diagrams in section
