Toyota COROLLA (S.AMERICA)157 — ELECTRONIC FUEL INJECTION SYSTEM

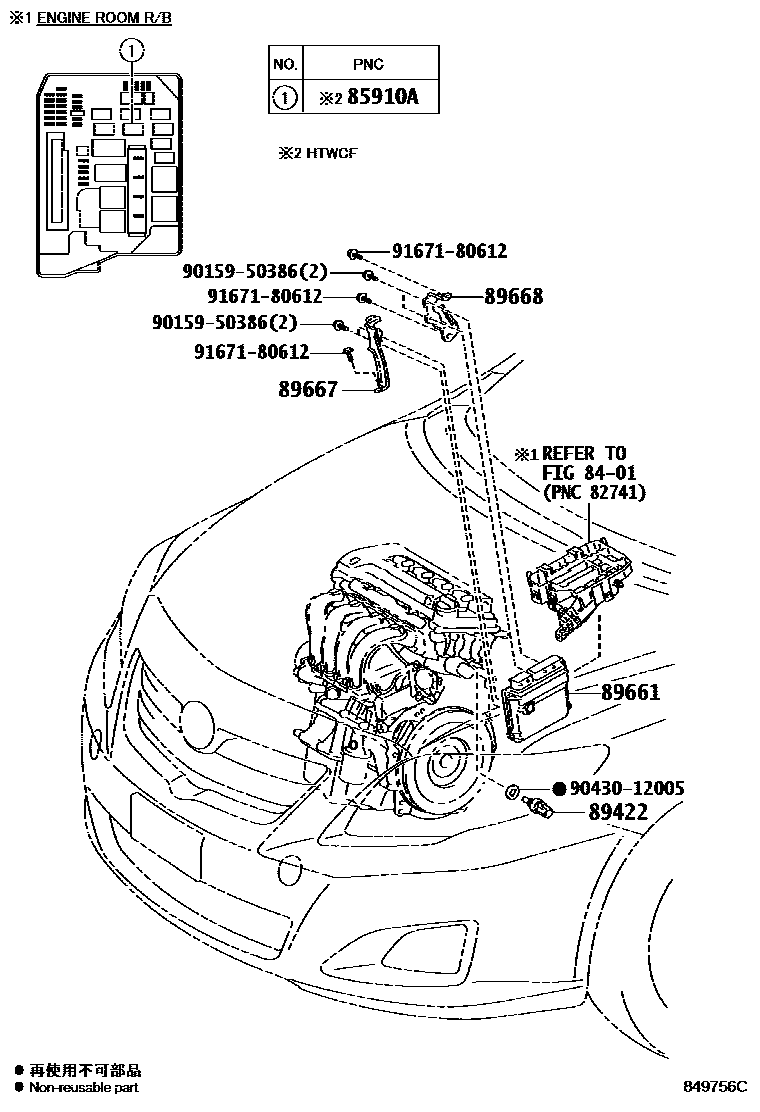

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

89667BRACKET, ENGINE CONTROL COMPUTER

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

9015950386

9043012005

9167180612

9 parts on this diagram · 4 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA (S.AMERICA)157

This section contains 14 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA (S.AMERICA)157. Key components include: SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER.
