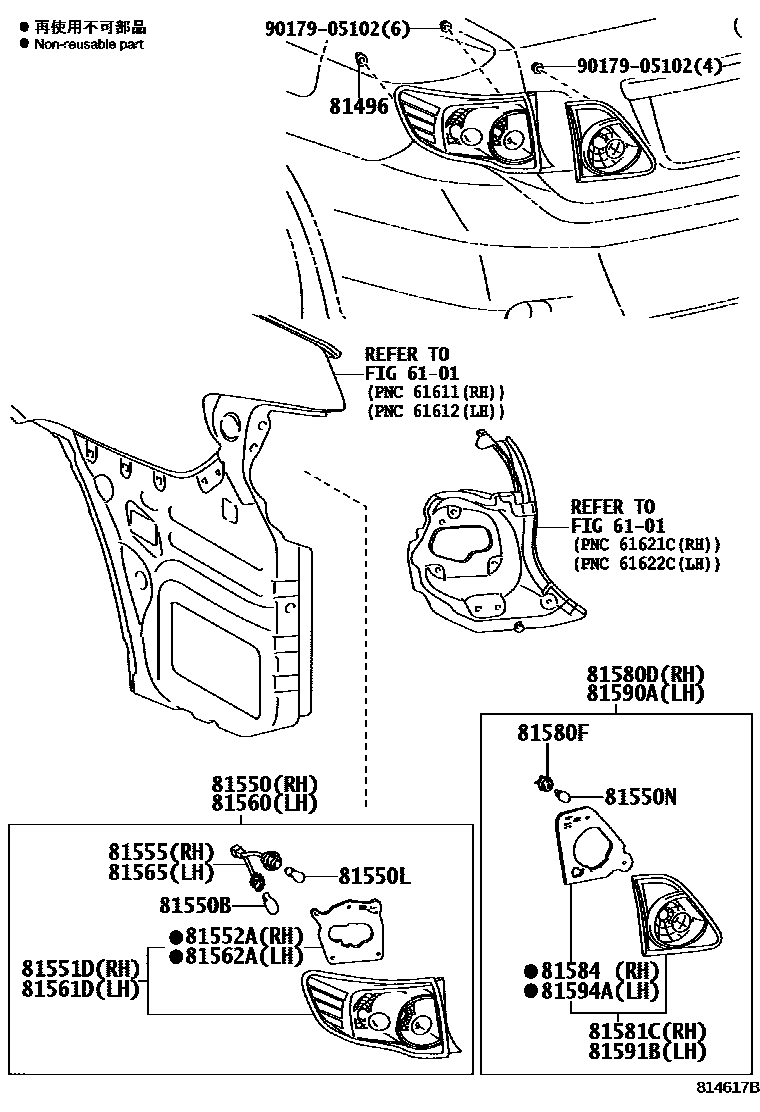

REAR COMBINATION LAMP

0001 1 0005 1 0007 1LED

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iZZE142..SEG..HTWCF200803-201003

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02350iZZE142..SEG..HTWCF200803-201003

main81550-02630iZRE143201103-201403

main81550-02660iZRE142;ZZE142..CNG201103

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13044×2iZZE142..SEG..HTWCF200803-201003

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iZRE14#;ZZE142..CNG201103

main99132-11210×2iZRE143200803-201103

81550NBULB, BACK UP LAMP

main90981-11059×2iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02350iZZE142..SEG..HTWCF200803-201003

main81551-02630iZRE143201103-201403

main81551-02660iZRE142;ZZE142..CNG201103

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-02350iZZE142..SEG..HTWCF200803-201003

main81552-02630iZRE143201103-201403

main81552-02660iZRE142;ZZE142..CNG201103

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-02350iZZE142..SEG..HTWCF200803-201003

main81555-02660iZRE142;ZZE142..CNG201103

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02350iZZE142..SEG..HTWCF200803-201003

main81560-02630iZRE143201103-201403

main81560-02660iZRE142;ZZE142..CNG201103

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02350iZRE143200803-201103

main81561-02630iZRE143201103-201403

main81561-02660iZRE142;ZZE142..CNG201103

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-02350iZZE142..SEG..HTWCF200803-201003

main81552-02630iZRE143201103-201403

main81552-02660iZRE142;ZZE142..CNG201103

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-02350iZZE142..SEG..HTWCF200803-201003

main81555-02660iZRE142;ZZE142..CNG201103

81580DLAMP ASSY, REAR, RH

main81580-02230iZZE142..SEG..HTWCF200803-201003

main81580-02380iZRE14#;ZZE142..CNG201103

81580FSOCKET PLUG, REAR LAMP

main90075-99005×2iZZE142..SEG..HTWCF200803-201003

81581CLENS AND BODY, REAR LAMP, RH

main81581-02230iZZE142..SEG..HTWCF200803-201003

main81581-02380iZRE14#;ZZE142..CNG201103

81584PACKING, REAR LAMP RH

main81552-02230iZZE142..SEG..HTWCF200803-201003

main81584-02380iZRE14#;ZZE142..CNG201103

81590ALAMP ASSY, REAR, LH

main81590-02220iZZE142..SEG..HTWCF200803-201003

main81590-02380iZRE14#;ZZE142..CNG201103

81591BLENS AND BODY, REAR LAMP, LH

main81591-02220iZZE142..SEG..HTWCF200803-201003

main81591-02380iZRE14#;ZZE142..CNG201103

81594AGASKET, REAR LAMP LH

main81562-02220iZZE142..SEG..HTWCF200803-201003

main81594-02380iZRE14#;ZZE142..CNG201103

9017905102

main90179-05102

21 parts on this diagram · 3 diagrams in section
