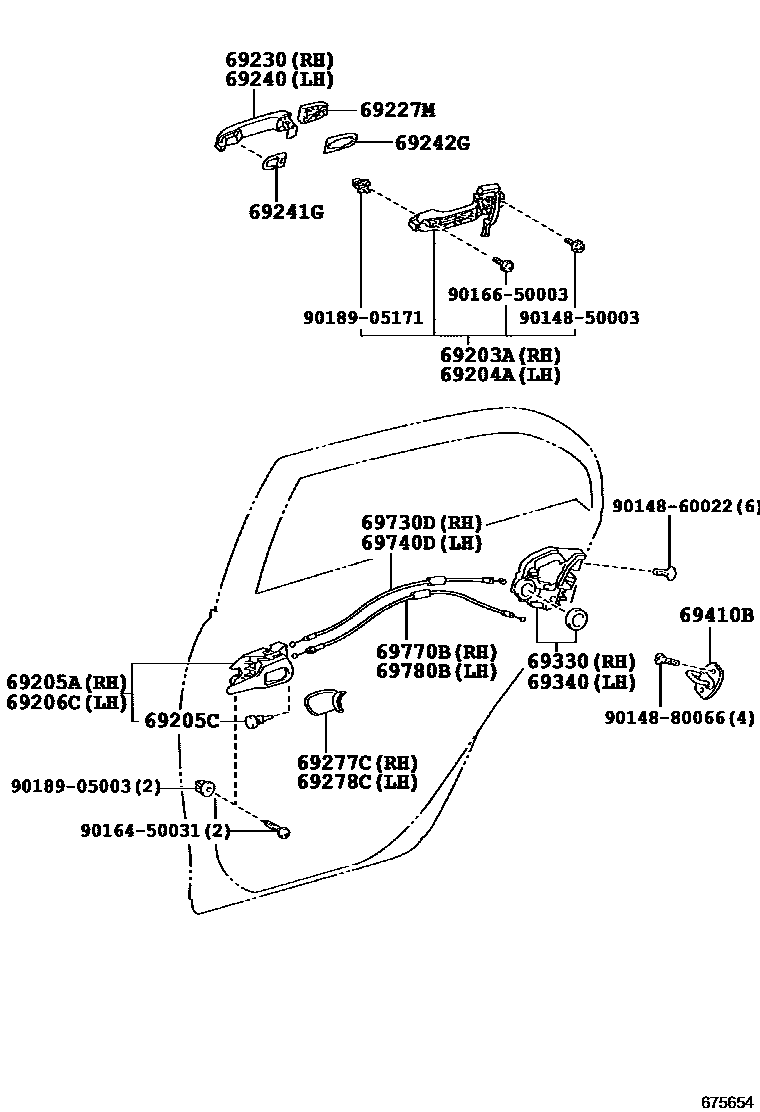

REAR DOOR LOCK & HANDLE

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02200iZRE14#;ZZE142..CNG200803-201105

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02200iZRE14#;ZZE142..CNG200803-201105

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02210-B0iZZE14#..(CE,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

LATIN AMERICA SPEC&LOW GRADE PACKAGE,GRAY,TRIM1#

main69205-02210-B0iZZE14#..(CE,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201411

GRAY,TRIM1#

main69205-02210-E0iZZE142..MXC200803

GREGE,TRIM4#

main69205-02220-B1iZZE142..SEG..HTWC200803

UP GRADE PACKAGE,SILVER,TRIM1#

main69205-02220-B1iZZE142..XEI..BZ200803-201103

SILVER,TRIM4#

main69205-02220-B1iZZE142..XEI..BZ200803

LATIN AMERICA SPEC,SILVER,TRIM1#

main69205-02220-B1iZZE142..XEI..BZ200803

LATIN AMERICA SPEC&UP GRADE PACKAGE,SILVER,TRIM1#

main69205-02220-B1iZRE143..XEI200809-201105

SILVER,TRIM1#

main69205-02220-B2iZRE142..XEI201103-201403

UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69205-02220-B2iZRE14#..ALT,SEG201103-201403

ORNAMENT SILVER,TRIM4#

main69205-02220-B2iZRE14#..ALT,SEG201103-201403

COLOMBIA SPEC,ORNAMENT SILVER,TRIM1#

main69205-02220-B2iZRE14#..ALT,SEG201103-201403

COLOMBIA SPEC&UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69205-02220-B2iZRE143..XEI;ZZE142..GLI..CNG201103-201411

ORNAMENT SILVER,TRIM1#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iZZE142..SEG..HTWCF200803-201105

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02220-B0iZZE142..XEI..CNG;ZRE142..GLI,XEI,XLI200803-201411

GRAY,TRIM1#

main69206-02220-B0iZZE14#..(CE,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

LATIN AMERICA SPEC&LOW GRADE PACKAGE,GRAY,TRIM1#

main69206-02220-E0iZZE142..MXC200803

GREGE,TRIM4#

main69206-02230-B1iZZE142..GLI..HTWC200809-201105

SILVER,TRIM1#

main69206-02230-B1iZZE142..SEG..HTWCF200803-201103

SILVER,TRIM4#

main69206-02230-B1iZZE142..SEG..HTWC200803

LATIN AMERICA SPEC,SILVER,TRIM1#

main69206-02230-B1iZZE142..SEG..HTWC200803

LATIN AMERICA SPEC&UP GRADE PACKAGE,SILVER,TRIM1#

main69206-02230-B1iZZE142..SEG..HTWC200803

UP GRADE PACKAGE,SILVER,TRIM1#

main69206-02230-B2iZRE142..XEI201103-201403

UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69206-02230-B2iZRE14#..ALT,SEG201103-201403

ORNAMENT SILVER,TRIM4#

main69206-02230-B2iZRE14#..ALT,SEG201103-201403

COLOMBIA SPEC,ORNAMENT SILVER,TRIM1#

main69206-02230-B2iZRE14#..ALT,SEG201103-201403

COLOMBIA SPEC&UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69206-02230-B2iZRE143..XEI;ZZE142..GLI..CNG201103-201411

ORNAMENT SILVER,TRIM1#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-02130iZZE142..XEI..CNG200803-201411

LESS COLOR

main69227-12080iZZE142..GLI..CNG200803-201411

*CR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-06040iZZE142..SEG..HTWCF200803-201411

PLATED

main69211-02180iZZE142..XEI..CNG200803-201411

PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-06040iZZE142..(GLI,SEG)..HTWC200803-201411

PLATED

main69211-02180iZZE142..XEI..CNG;ZRE14#..GLI,XEI,XLI200803-201411

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02050iZZE142..SEG..HTWCF200803-201105

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-02050iZZE142..SEG..HTWCF200803-201105

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-02170-B0iZRE143..XEI;ZRE142..MTM..XEI200803-201411

GRAY,TRIM1#

main69277-02170-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main69277-02170-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main69277-02170-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-02160-B0iZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201411

GRAY,TRIM1#

main69278-02160-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main69278-02160-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main69278-02160-E0iZRE143..ALT200803-201403

GREGE,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69050-02140iZZE142..CNG;ZRE14#..ALT,GLI,SEG,XEI200803-201105

main69050-02270iZZE141200803

LOW GRADE PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main69050-02270iZRE142..XLI201103-201403

69340LOCK ASSY, REAR DOOR, LH

main69060-02240iZZE142..CNG;ZRE14#..ALT,GLI,SEG,XEI200803-201105

main69060-02270iZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main69060-02270iZRE142..XLI201103-201403

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0K030iZRE14#;ZZE142..CNG200803-201105

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-02150iZZE142..SEG..HTWCF200803-201105

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-02150iZZE142..SEG..HTWCF200803-201105

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-02230iZZE142..SEG..HTWCF200803-201105

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-02230iZZE142..SEG..HTWCF200803-201105

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9016650003

main90166-50003

9018905003

main90189-05003

9018905171

main90189-05171

26 parts on this diagram · 1 diagram in section
