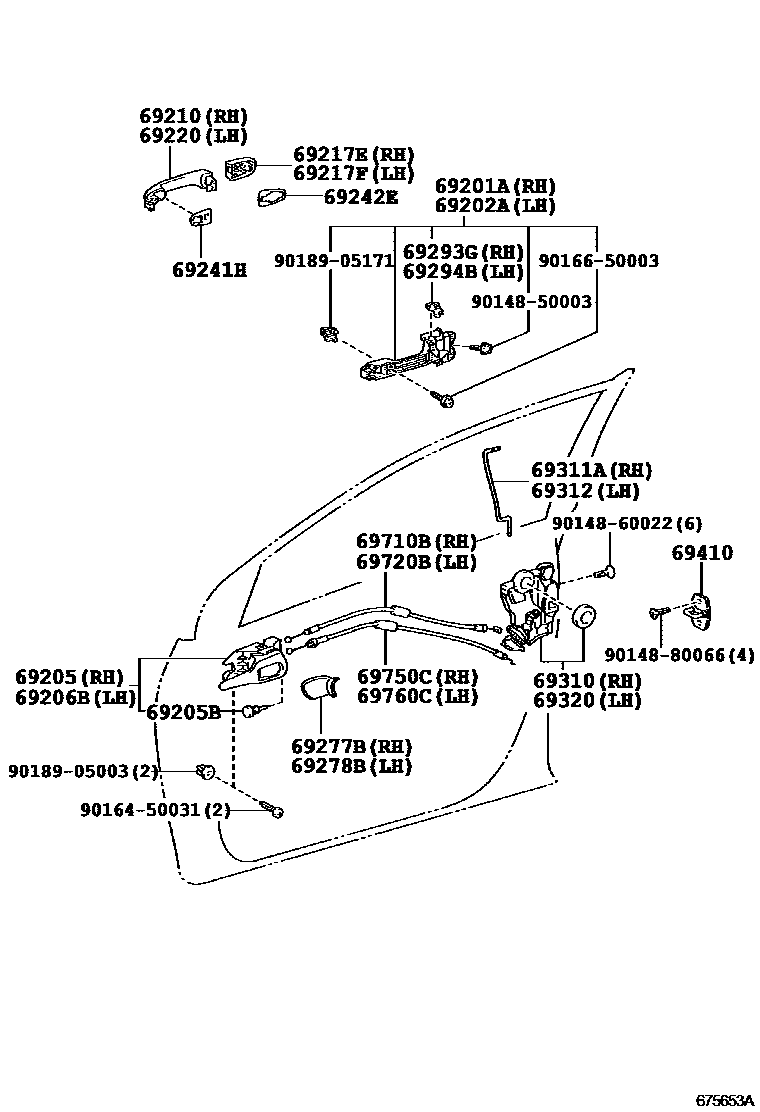

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02190iZRE143200803-201105

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02120iZRE143200803-201105

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02210-B0iZZE142..MTM..HTWC..BZ200803

LATIN AMERICA SPEC&LOW GRADE PACKAGE,GRAY,TRIM1#

main69205-02210-B0iZZE142..MTM..HTWC..BZ200803-201411

GRAY,TRIM1#

main69205-02210-E0iZZE142..MXC200803

GREGE,TRIM4#

main69205-02220-B1iZZE142..(XEGLI,XEI)..BZ200803-201103

SILVER,TRIM4#

main69205-02220-B1iZZE142..(XEGLI,XEI)..BZ200803

LATIN AMERICA SPEC&UP GRADE PACKAGE,SILVER,TRIM1#

main69205-02220-B1iZZE142..(XEGLI,XEI)..BZ200803

UP GRADE PACKAGE,SILVER,TRIM1#

main69205-02220-B1iZZE142..GLI..HTWC200809-201105

SILVER,TRIM1#

main69205-02220-B1iZZE142..(XEGLI,XEI)..BZ200803

LATIN AMERICA SPEC,SILVER,TRIM1#

main69205-02220-B2iZRE14#..ALT,SEG201103-201403

COLOMBIA SPEC,ORNAMENT SILVER,TRIM1#

main69205-02220-B2iZRE14#..ALT,SEG201103-201403

COLOMBIA SPEC&UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69205-02220-B2iZRE14#..ALT,SEG201103-201403

UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69205-02220-B2iZRE142..XEI201103-201403

ORNAMENT SILVER,TRIM4#

main69205-02220-B2iZRE143..XEI;ZZE142..GLI..CNG201103-201411

ORNAMENT SILVER,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZZE142..CNG200803-201105

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02220-B0iZZE14#..(CE,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

LATIN AMERICA SPEC&LOW GRADE PACKAGE,GRAY,TRIM1#

main69206-02220-B0iZZE142..XEI..CNG;ZRE142..GLI,XEI,XLI200803-201411

GRAY,TRIM1#

main69206-02220-E0iZZE142..MXC200803

GREGE,TRIM4#

main69206-02230-B1iZZE142..XEI..BZ200803-201103

SILVER,TRIM4#

main69206-02230-B1iZZE142..XEI..BZ200803

LATIN AMERICA SPEC,SILVER,TRIM1#

main69206-02230-B1iZZE142..XEI..BZ200803

LATIN AMERICA SPEC&UP GRADE PACKAGE,SILVER,TRIM1#

main69206-02230-B1iZZE142..XEI..BZ200803

UP GRADE PACKAGE,SILVER,TRIM1#

main69206-02230-B1iZZE142..GLI..HTWC200809-201105

SILVER,TRIM1#

main69206-02230-B2iZRE142..XEI201103-201403

COLOMBIA SPEC&UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69206-02230-B2iZRE14#..ALT,SEG201103-201403

ORNAMENT SILVER,TRIM4#

main69206-02230-B2iZRE14#..ALT,SEG201103-201403

COLOMBIA SPEC,ORNAMENT SILVER,TRIM1#

main69206-02230-B2iZRE14#..ALT,SEG201103-201403

UP GRADE PACKAGE,ORNAMENT SILVER,TRIM1#

main69206-02230-B2iZRE143..XEI;ZZE142..GLI..CNG201103-201411

ORNAMENT SILVER,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06040iZZE142..(GLI,SEG)..HTWC200803-201411

PLATED

main69211-02180iZZE142..XEI..CNG;ZRE14#..GLI,XEI,XLI200803-201411

PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02120iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN)200803-201403

LESS COLOR

main69217-06020iZZE142..SEG..HTWC200803-201105

*CR

main69217-0K904iZRE14#..GLI,XEI;ZZE142..XEI..CNG201003-201103

LESS COLOR

main69217-33030iZRE14#..ALT,SEG;ZZE142..GLI..CNG201003-201103

*CR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-02120iZZE14#..(CE,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201411

LESS COLOR

main69217-06020iZRE14#..ALT,SEG;ZZE142..GLI..CNG200803-201411

*CR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-06040iZZE142..SEG..HTWCF200803-201411

PLATED

main69211-02180iZZE142..XEI..CNG;ZRE14#..GLI,XEI,XLI200803-201411

PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02050iZZE142..SEG..HTWCF200803-201105

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02050iZZE142..SEG..HTWCF200803-201105

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-02170-B0iZRE143..XEI;ZRE142..MTM..XEI200803-201411

GRAY,TRIM1#

main69277-02170-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main69277-02170-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main69277-02170-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-02160-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main69278-02160-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main69278-02160-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main69278-02160-E0iZZE142..(CE,SEG)..HTWC200803-201403

GREGE,TRIM4#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iZZE142..CNG200803-201105

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iZZE142..CNG200803-201105

69310LOCK ASSY, FRONT DOOR, RH

main69030-02390iZZE142..SEG..HTWC;ZZE142..(CE,GLI,XEGLI,XEI)..(HTWC,HTWCF)200803-201105

main69030-02400iZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main69030-02400iZRE142..XLI201103-201403

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02210iZZE142..CNG200809-201105

main69311-02250iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201403

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02210iZZE142..HTWC..VEN200809-201105

main69312-02250iZRE14#200803-201403

69320LOCK ASSY, FRONT DOOR, LH

main69040-02350iZZE142..SEG..HTWCF200803-201105

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0K030iZZE142..SEG..HTWCF200803-201105

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02170iZZE142200809-201105

main69710-02210iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201403

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02170iZZE142..CNG200809-201105

main69710-02210iZRE143200803-201403

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02200iZZE142200809-201105

main69750-02240iZZE142..SEG..HTWCF200803-201403

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-02200iZZE142..HTWC..VEN200809-201105

main69750-02240iZRE14#200803-201403

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9016650003

main90166-50003

9018905003

main90189-05003

9018905171

main90189-05171

31 parts on this diagram · 1 diagram in section
