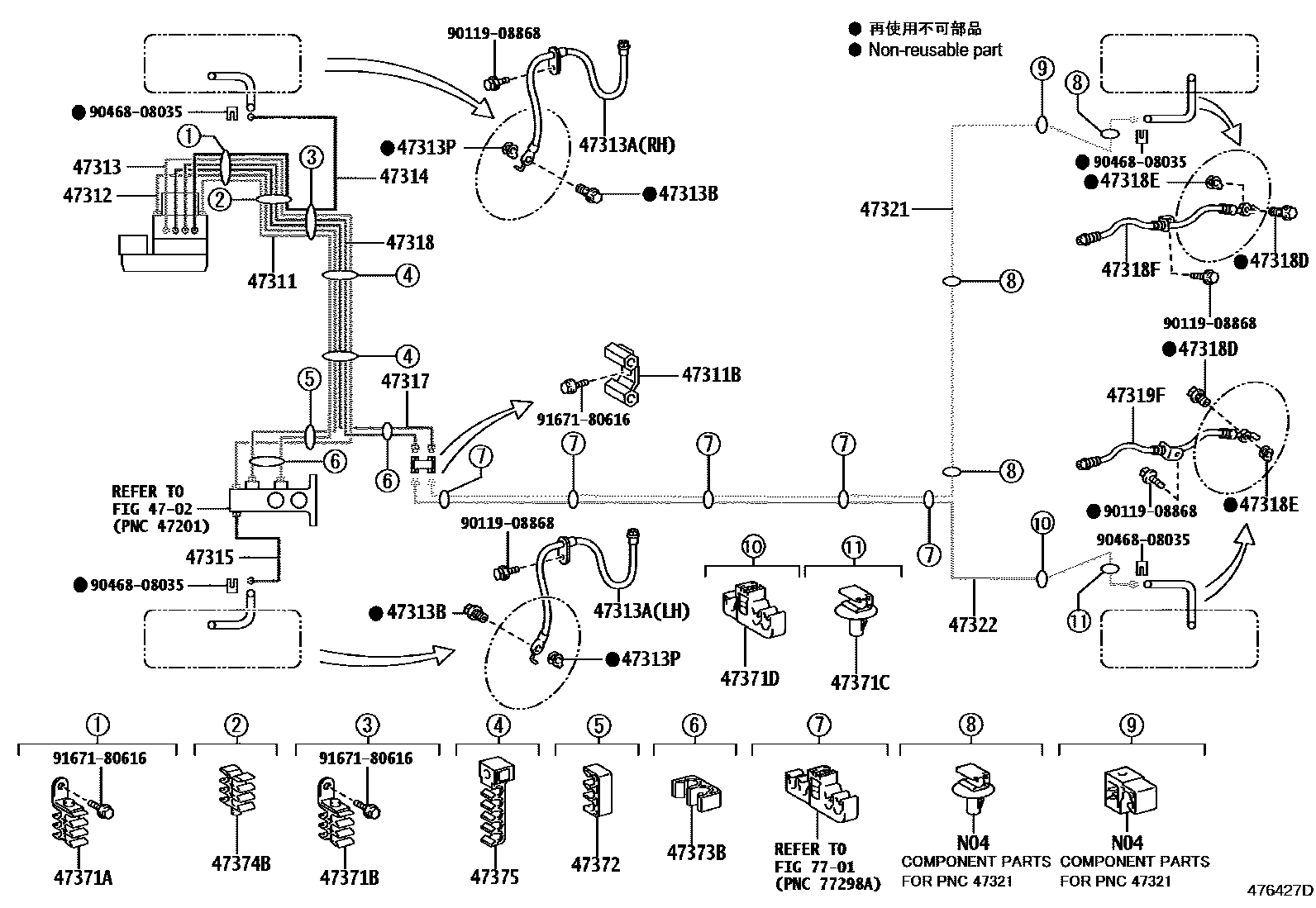

BRAKE TUBE & CLAMP

0001 1W(ABS) 0002 1W/O(ABS) 0003 1W(ABS)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-02670iZZE142201105

main47311-02680supersedes 47311-02691iZZE142..SEG..HTWCF200803-201003

main47311-02691iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10255iZZE142..SEG..HTWCF200803-201003

47312TUBE, FRONT BRAKE, NO.2

main47312-02570iZZE142..CNG200809-201105

main47312-02580supersedes 47312-02591iZRE14#..ALT,GLI,SEG,XEI; ZRE142..XLI201103-201403

UP GRADE PACKAGE

main47312-02591iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

47313TUBE, FRONT BRAKE, NO.3

main47313-02620iZZE142..HTWC..VEN200809

main47313-02630supersedes 47313-02640iZZE141; ZZE142..SEG..HTWC;ZZE142..(XEGLI,XEI)..BZ200803

UP GRADE PACKAGE

main47313-02640iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F08iZRE14#;ZZE142..CNG201103

RH

main90947-02F09iZZE142..SEG..HTWCF200803-201003

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZZE142..CNG200803-201105

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

47314TUBE, FRONT BRAKE, NO.4

main47314-02620iZZE142..HTWC..VEN200809

main47314-02630supersedes 47314-02640iZRE14#..ALT,GLI,SEG,XEI; ZRE142..XLI201103-201403

UP GRADE PACKAGE

main47314-02640iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

47315TUBE, FRONT BRAKE, NO.5

main47315-02330iZZE142201105

main47315-02360iZZE142..SEG..HTWCF200803-201003

47317TUBE, FRONT BRAKE, NO.7

main47317-02540iZZE142201105

main47317-02550iZZE141; ZZE142..SEG..HTWC;ZZE142..(XEGLI,XEI)..BZ200803

UP GRADE PACKAGE

main47317-02560iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

main47317-02690supersedes 47317-02700iZRE14#..ALT,GLI,SEG,XEI; ZRE142..XLI201103-201403

UP GRADE PACKAGE

main47317-02700iZRE142..HTWCF; ZRE142..XLI201103-201403

LOW GRADE PACKAGE

47318TUBE, FRONT BRAKE, NO.8

main47318-02560iZZE142201105

main47318-02570iZZE141; ZZE142..SEG..HTWC;ZZE142..(XEGLI,XEI)..BZ200803

UP GRADE PACKAGE

main47318-02580iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

main47318-02710supersedes 47318-02720iZRE14#..ALT,GLI,SEG,XEI; ZRE142..XLI201103-201403

UP GRADE PACKAGE

main47318-02720iZRE142..HTWCF; ZRE142..XLI201103-201403

LOW GRADE PACKAGE

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZZE142..SEG..HTWCF200803-201003

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iZZE142..SEG..HTWCF200803-201003

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E79iZZE142..SEG..HTWCF200803-201003

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E80iZZE142..SEG..HTWCF200803-201003

47321TUBE, REAR BRAKE, NO.1

main47320-02100iZZE142..VEN200809-201105

main47320-02110iZRE14#201103-201403

47322TUBE, REAR BRAKE, NO.2

main47322-02300iZZE142201105-201411

main47322-02310iZRE143,ZZE14#..BZ,MXC200803-201103

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12240iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

47371BCLAMP, BRAKE TUBE, NO.6

main90949-04050iZZE142..CNG200803-201105

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D17iZRE143,ZZE14#200803-201105

47371DCLAMP, BRAKE TUBE, NO.8

main77285-12140iZRE143,ZZE14#200803-201105

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iZZE142..SEG..HTWCF200803-201003

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00904×2iZZE142..SEG..HTWCF200803-201003

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C51iZZE142..SEG..HTWCF200803-201003

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D28×2iZZE142..SEG..HTWCF200803-201003

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9046808035

main90468-08035

9167180616

main91671-80616

30 parts on this diagram · 3 diagrams in section
