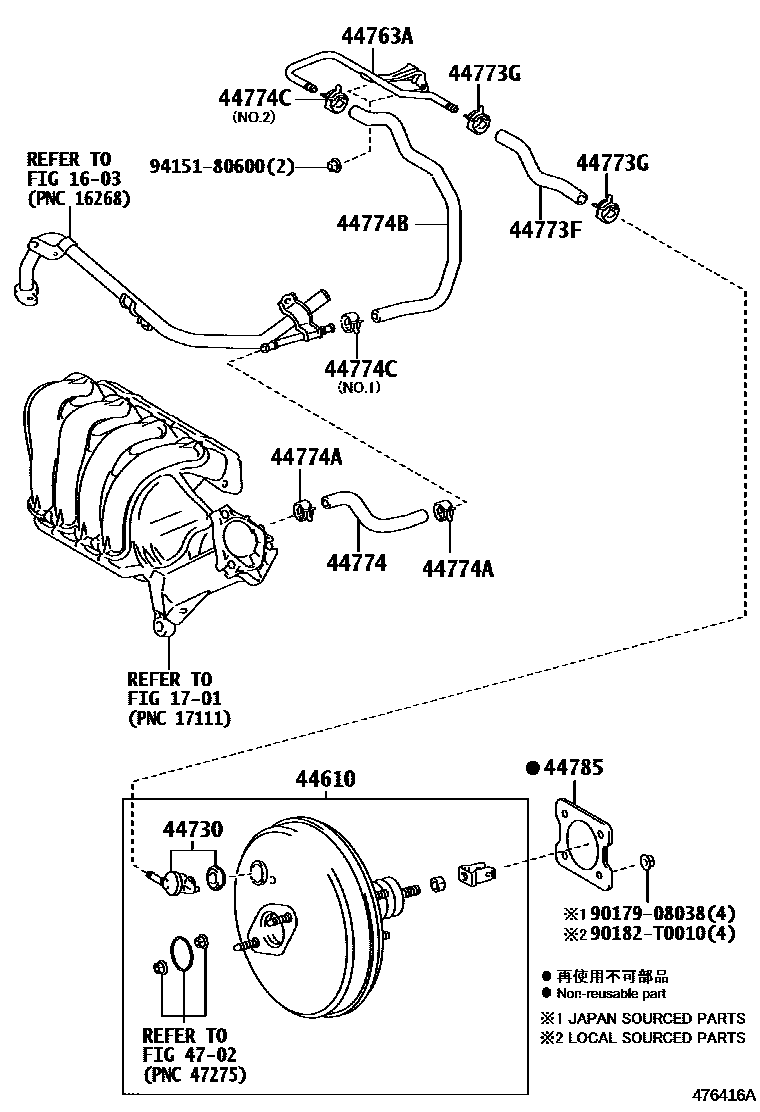

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-09490iZZE142..CNG200803-201105

main44610-09A10iZRE14#,ZZE142201203

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iZZE142..SEG..HTWCF200803-201003

main44730-09060iZRE14#,ZZE142201203

44763ATUBE, HOSE TO HOSE, NO.1

main44763-02130supersedes 44763-02171iZZE142..SEG..HTWCF200803-201003

main44763-02160iZRE143201003-201103

44773FHOSE, UNION TO CHECK VALVE

main44773-02160iZZE142..SEG..HTWCF200803-201003

main44773-02200iZRE14#,ZZE142201111

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500×2iZRE14#;ZZE142..CNG201103

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02050iZZE142201105

main44774-02060iZZE141200803

main44774-02200iZRE143201003-201103

main44774-20310iZZE142..HTWC..VEN200809

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iZZE142..SEG..HTWCF200803-201003

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-02130iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

main44774-02220iZZE142..CNG200906-201105

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

NO.1

main96136-51801iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

NO.2

44785GASKET, BRAKE BOOSTER

main44785-12040iZZE142..SEG..HTWCF200803-201003

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

90182T0010

main90182-T0010

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
